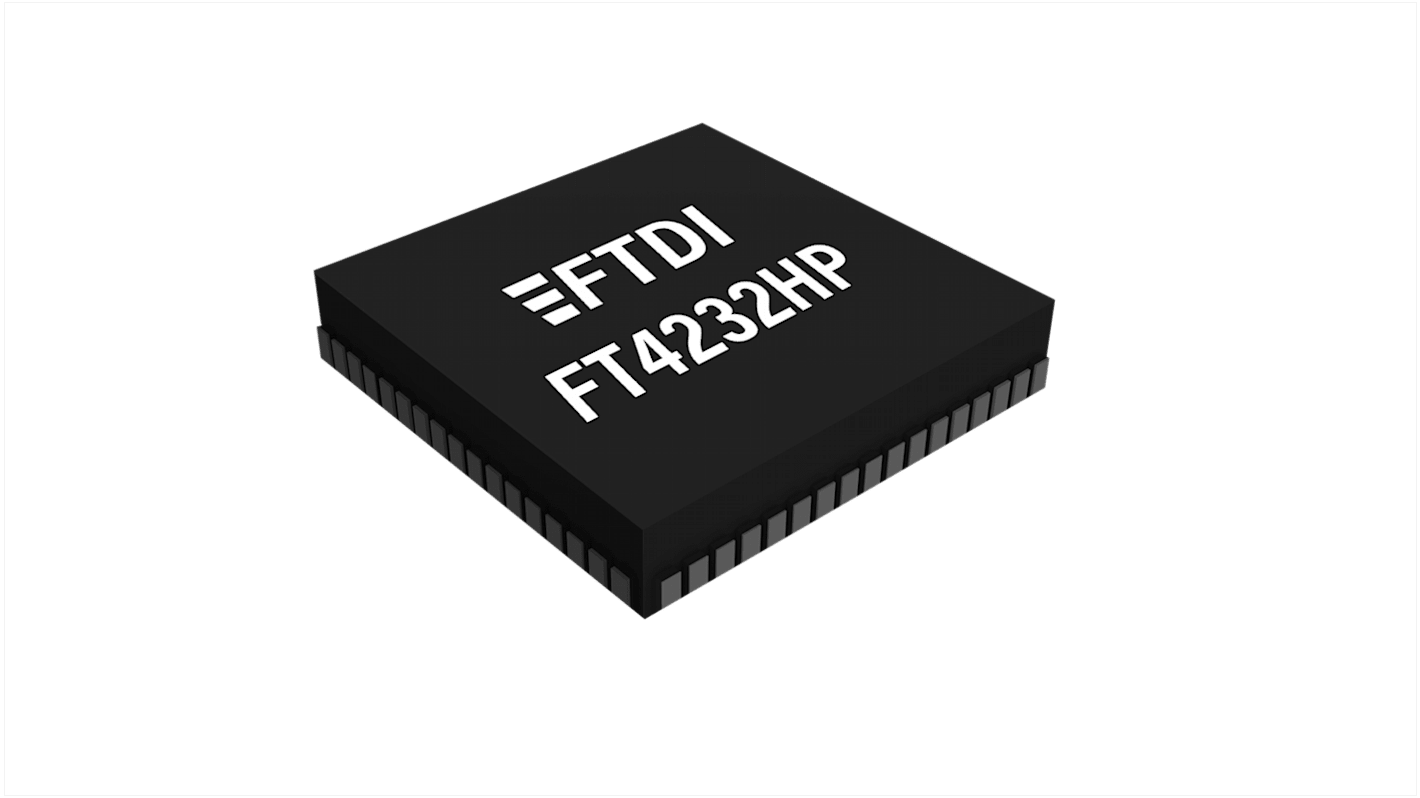

FTDI Chip FT4232HPQ-TRAY, Controller IC, 4-Channel 12 Mbps, 1.32 V, USB 2.0, 3.3 V, 68-Pin QFN

RS-artikelnummer:: 228-3127
Tillv. art.nr:: FT4232HPQ-TRAY
Tillverkare / varumärke:: FTDI Chip

FTDI Chip FT4232HPQ-TRAY, Controller IC, 4-Channel 12 Mbps, 1.32 V, USB 2.0, 3.3 V, 68-Pin QFN

Antal (1 enhet)*

66,91 kr

(exkl. moms)

83,64 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

Tillfälligt slut

Leverans från den 24 juli 2026

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 +	66,91 kr

*vägledande pris

RS-artikelnummer:: 228-3127
Tillv. art.nr:: FT4232HPQ-TRAY
Tillverkare / varumärke:: FTDI Chip

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	FTDI Chip
	Number of Transceivers	4
	Product Type	Controller IC
	Maximum Data Rate	12Mbps
	Sub Type	Controller
	USB Specification	USB Type C
	Power Supply Type	Single
	ESD Protection	Yes
	Maximum Supply Voltage	1.32V
	Minimum Supply Voltage	3.3V
	Mount Type	Surface
	Package Type	QFN
	Pin Count	68
	Supported Protocols	USB 2.0
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Standards/Approvals	RoHS
	Length	8mm
	Height	0.9mm
	Series	FT4233HP
	Width	8 mm
	Supply Current	0.87mA
	Automotive Standard	No

	Välj alla
	Brand FTDI Chip
	Number of Transceivers 4
	Product Type Controller IC
	Maximum Data Rate 12Mbps
	Sub Type Controller
	USB Specification USB Type C
	Power Supply Type Single
	ESD Protection Yes
	Maximum Supply Voltage 1.32V
	Minimum Supply Voltage 3.3V
	Mount Type Surface
	Package Type QFN
	Pin Count 68
	Supported Protocols USB 2.0
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Standards/Approvals RoHS
	Length 8mm
	Height 0.9mm
	Series FT4233HP
	Width 8 mm
	Supply Current 0.87mA
	Automotive Standard No

The FTDI Chip FT4233HP/FT4232HP is a Hi-Speed USB device with a Type-C/PD3.0 controller that fully supports the latest USB Type-C and Power Delivery (PD) standards enabling support for power negotiation with the ability to sink or source current to a USB host device. The USB bridge function delivers 4 independent channels compatible with the existing FT4232H – Quad Hi-speed USB to multipurpose UART/MPSSE solution.

Supports PD Specification 3.0

1 x USB PD 3.0 Port supports Dual Role Swap Function

Supports 5V3A, 9V3A, 12V3A, 15V3A, 20V3A and more PDOs as sink or source

Type-C/PD Physical Layer Protocol

PD policy engine using 32-bit RISC controller with 8kB data RAM and 48kB code ROM

PD mode configuration through external EEPROM

Options to use external MCU controlling PD policy through I2C interface

Up to 8 Configurable PD GPIO pins support

External MCU support through I2C bus
