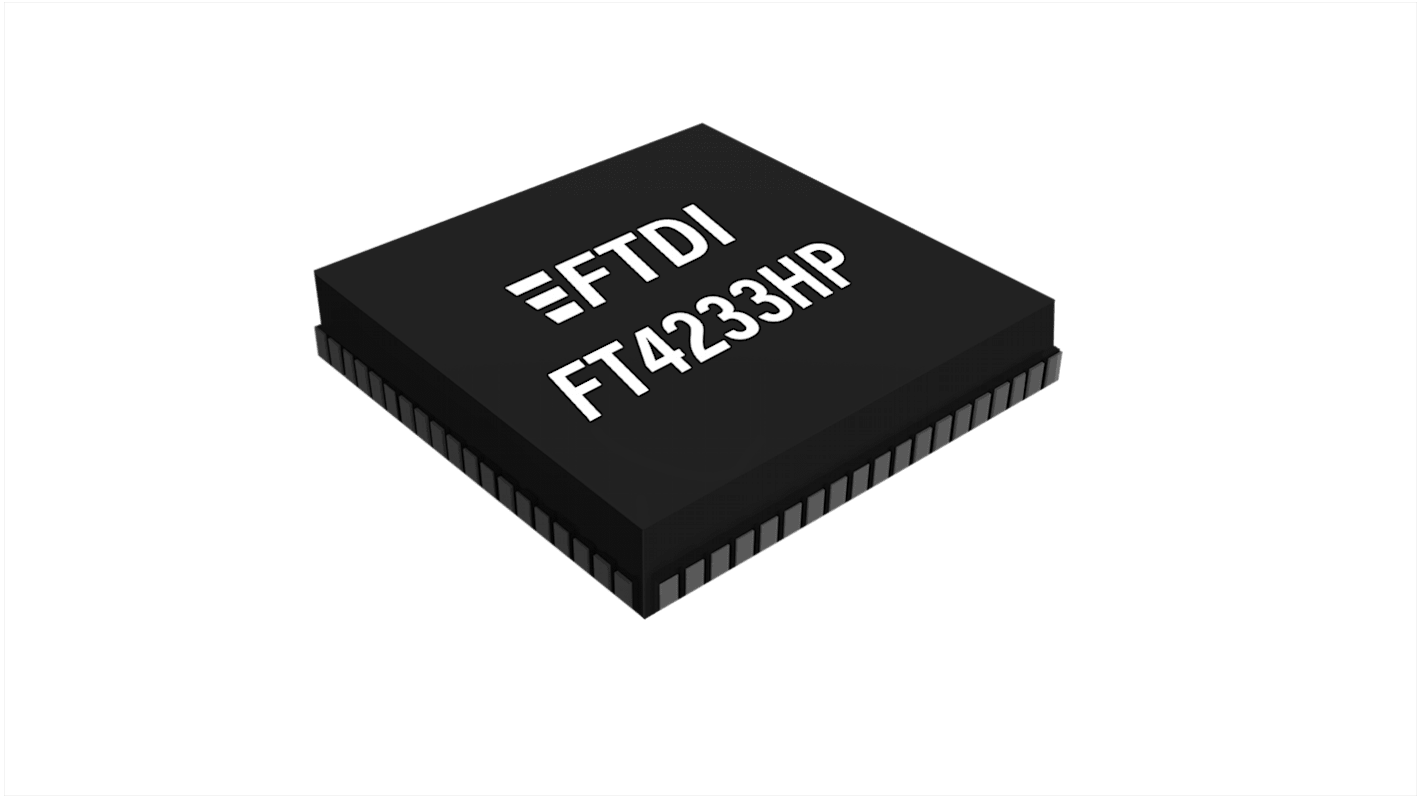

FTDI Chip, Controller IC, 4-Channel 12 Mbps, 1.32 V, USB 2.0, 3.3 V, 76-Pin QFN

RS-artikelnummer:: 228-3129
Tillv. art.nr:: FT4233HPQ-TRAY
Tillverkare / varumärke:: FTDI Chip

FTDI Chip, Controller IC, 4-Channel 12 Mbps, 1.32 V, USB 2.0, 3.3 V, 76-Pin QFN

Antal (1 fack med 260 enheter)*

19 044,48 kr

(exkl. moms)

23 805,60 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

260 enhet(er) är redo att levereras

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet	Per Bricka*
260 +	73,248 kr	19 044,48 kr

*vägledande pris

RS-artikelnummer:: 228-3129
Tillv. art.nr:: FT4233HPQ-TRAY
Tillverkare / varumärke:: FTDI Chip

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	FTDI Chip
	Number of Transceivers	4
	Product Type	Controller IC
	Maximum Data Rate	12Mbps
	USB Specification	USB Type C
	Sub Type	Controller
	Power Supply Type	Single
	ESD Protection	Yes
	Minimum Supply Voltage	3.3V
	Maximum Supply Voltage	1.32V
	Mount Type	Surface
	Package Type	QFN
	Pin Count	76
	Minimum Operating Temperature	-40°C
	Supported Protocols	USB 2.0
	Maximum Operating Temperature	85°C
	Width	8.85 mm
	Series	FT4233HP
	Standards/Approvals	RoHS
	Length	8.85mm
	Height	1mm
	Supply Current	0.87mA
	Automotive Standard	No

	Välj alla
	Brand FTDI Chip
	Number of Transceivers 4
	Product Type Controller IC
	Maximum Data Rate 12Mbps
	USB Specification USB Type C
	Sub Type Controller
	Power Supply Type Single
	ESD Protection Yes
	Minimum Supply Voltage 3.3V
	Maximum Supply Voltage 1.32V
	Mount Type Surface
	Package Type QFN
	Pin Count 76
	Minimum Operating Temperature -40°C
	Supported Protocols USB 2.0
	Maximum Operating Temperature 85°C
	Width 8.85 mm
	Series FT4233HP
	Standards/Approvals RoHS
	Length 8.85mm
	Height 1mm
	Supply Current 0.87mA
	Automotive Standard No

The FTDI Chip FT4233HP/FT4232HP is a Hi-Speed USB device with a Type-C/PD3.0 controller that fully supports the latest USB Type-C and Power Delivery (PD) standards enabling support for power negotiation with the ability to sink or source current to a USB host device. The USB bridge function delivers 4 independent channels compatible with the existing FT4232H – Quad Hi-speed USB to multipurpose UART/MPSSE solution.

Supports PD Specification 3.0

2 x USB PD 3.0 Port Support. Port 1 supports Dual Role Swap Function while Port 2 supports sink mode with charging function through to Port 1

Supports 5V3A, 9V3A, 12V3A, 15V3A, 20V3A and more PDOs as sink or source

Type-C/PD Physical Layer Protocol

PD policy engine using 32-bit RISC controller with 8kB data RAM and 48kB code ROM

PD mode configuration through external EEPROM

Options to use external MCU controlling PD policy through I2C interface

Up to 8 Configurable PD GPIO pins support

External MCU support through I2C bus

External EEPROM support for USB device configuration and PD profile
