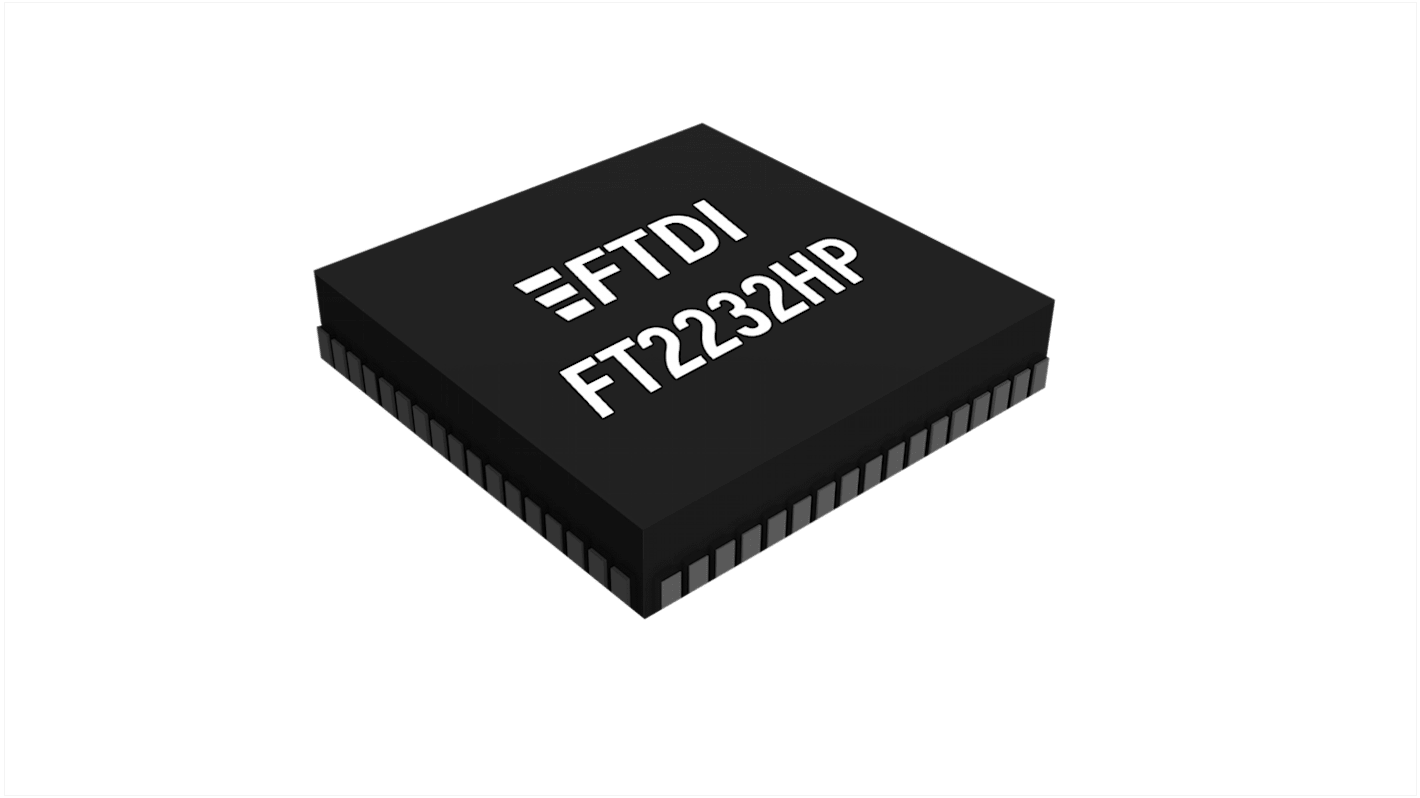

FTDI Chip, Controller IC, 2-Channel 12 Mbps, 1.32 V, USB 2.0, 3.3 V, 68-Pin QFN

RS-artikelnummer:: 228-3118
Tillv. art.nr:: FT2232HPQ-TRAY
Tillverkare / varumärke:: FTDI Chip

FTDI Chip, Controller IC, 2-Channel 12 Mbps, 1.32 V, USB 2.0, 3.3 V, 68-Pin QFN

Antal (1 fack med 260 enheter)*

15 445,30 kr

(exkl. moms)

19 306,56 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

520 enhet(er) är redo att levereras

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet	Per Bricka*
260 +	59,405 kr	15 445,30 kr

*vägledande pris

RS-artikelnummer:: 228-3118
Tillv. art.nr:: FT2232HPQ-TRAY
Tillverkare / varumärke:: FTDI Chip

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	FTDI Chip
	Product Type	Controller IC
	Number of Transceivers	2
	Maximum Data Rate	12Mbps
	Sub Type	Controller
	USB Specification	USB Type C
	Power Supply Type	Single
	ESD Protection	Yes
	Maximum Supply Voltage	1.32V
	Minimum Supply Voltage	3.3V
	Mount Type	Surface
	Package Type	QFN
	Pin Count	68
	Minimum Operating Temperature	-40°C
	Supported Protocols	USB 2.0
	Maximum Operating Temperature	85°C
	Width	8 mm
	Height	0.9mm
	Length	8mm
	Series	FT2232HP
	Standards/Approvals	RoHS
	Supply Current	0.83mA
	Automotive Standard	No

	Välj alla
	Brand FTDI Chip
	Product Type Controller IC
	Number of Transceivers 2
	Maximum Data Rate 12Mbps
	Sub Type Controller
	USB Specification USB Type C
	Power Supply Type Single
	ESD Protection Yes
	Maximum Supply Voltage 1.32V
	Minimum Supply Voltage 3.3V
	Mount Type Surface
	Package Type QFN
	Pin Count 68
	Minimum Operating Temperature -40°C
	Supported Protocols USB 2.0
	Maximum Operating Temperature 85°C
	Width 8 mm
	Height 0.9mm
	Length 8mm
	Series FT2232HP
	Standards/Approvals RoHS
	Supply Current 0.83mA
	Automotive Standard No

The FTDI Chip FT2233HP/FT2232HP is a Hi-Speed USB device with a Type-C/PD 3.0 controller that fully supports the latest USB Type-C and Power Delivery (PD) standards enabling support for power negotiation with the ability to sink or source current to a USB host device. The USB bridge function delivers 2 independent channels compatible with the FT2232H – Dual Hi-speed USB to multipurpose UART/MPSSE solution.

Supports PD Specification 3.0.

1 x USB PD 3.0 Port supports Dual Role Swap Function

Supports 5V3A, 9V3A, 12V3A, 15V3A, 20V3A and more PDOs as sink or source.

Type-C/PD Physical Layer Protocol.

PD policy engine using 32-bit RISC controller with 8kB data RAM and 48kB code ROM.

PD mode configuration through external EEPROM.

Options to use external MCU controlling PD policy through I2C interface.

Up to 8 Configurable PD GPIO pins support.

External MCU support through I2C bus
