Arduino, Proto Shield Rev3 (Uno Size)
- RS-artikelnummer:
- 176-3652
- Distrelec artikelnummer:
- 301-17-218
- Tillv. art.nr:
- TSX00083
- Tillverkare / varumärke:
- Arduino
Mängdrabatt möjlig
Antal (1 enhet)*
138,74 kr
(exkl. moms)
173,42 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- Dessutom levereras 297 enhet(er) från den 08 december 2025
- Dessutom levereras 52 enhet(er) från den 08 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 9 | 138,74 kr |
| 10 - 24 | 134,19 kr |
| 25 + | 130,09 kr |
*vägledande pris
- RS-artikelnummer:
- 176-3652
- Distrelec artikelnummer:
- 301-17-218
- Tillv. art.nr:
- TSX00083
- Tillverkare / varumärke:
- Arduino
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Arduino | |
| Product Name | Proto Shield Rev3 (Uno Size) | |
| Processor Part Number | TSX00083 | |
| Revision | V3.0 | |
| Välj alla | ||
|---|---|---|
Brand Arduino | ||
Product Name Proto Shield Rev3 (Uno Size) | ||
Processor Part Number TSX00083 | ||
Revision V3.0 | ||
- COO (Country of Origin):
- IT

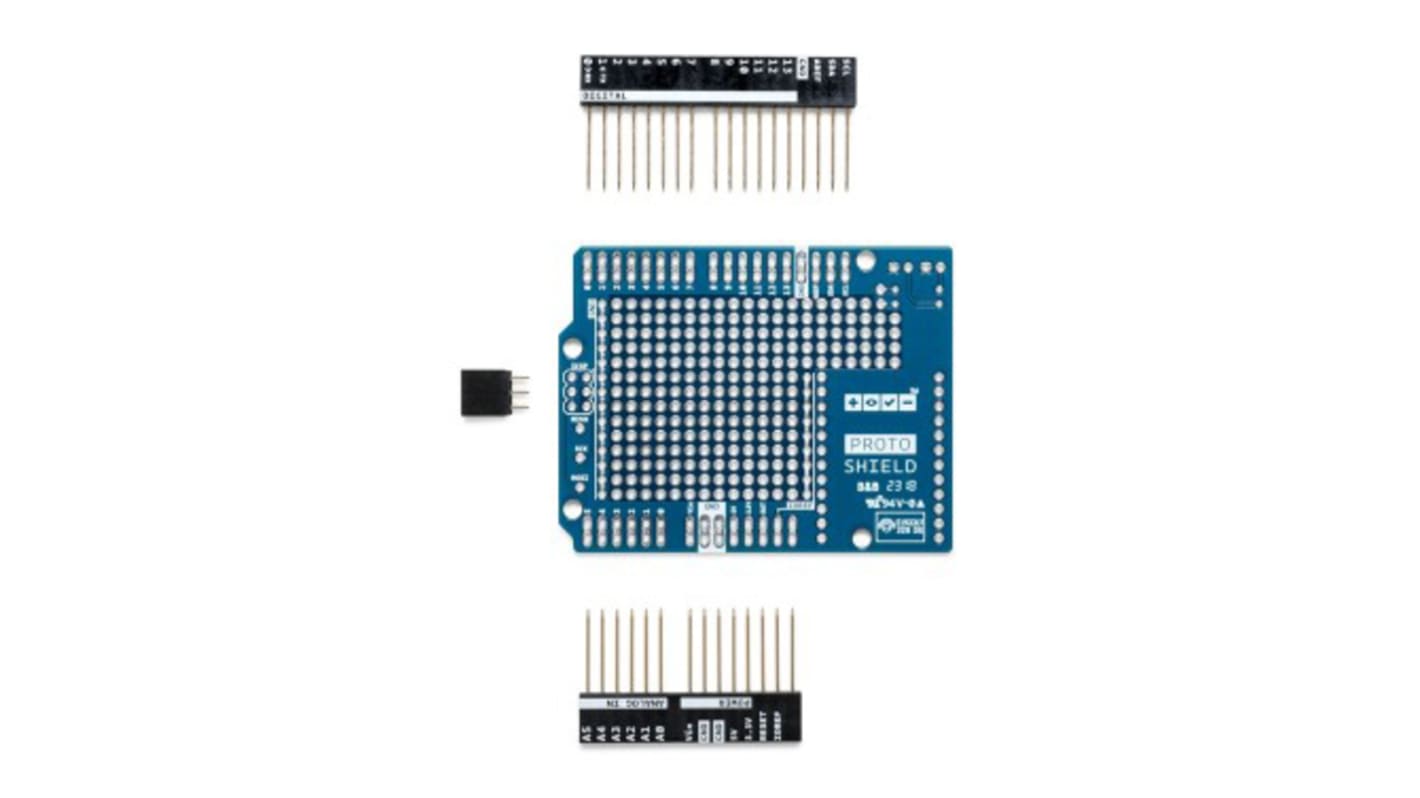

Arduino ProtoShield
The Arduino ProtoShield is an innovative tool that makes designing custom circuits easy. You can easily solder TH or SMD ICs on the prototyping area to test them with your Arduino board. The SMD area is designed for a maximum of 24 pins SOIC integrated circuit and the TH area contains a lot of space for the needed components around your project. You can even stick a mini breadboard (not included) on the protoarea for solderless operation. The proto area includes 2 power lines (IOREF and GND), 2 LEDs pads and SPI signals breakout pads for boards with SPI only on the ICSP header like zero.
Features and Benefits
1 Arduino pinout
1 ICSP Connector footprint
2 LEDs and resistor footprint
IOREF and GND power lines
SPI signals pads
24-pin SMD footprint (50 mils pitch)
1 ICSP Connector footprint
2 LEDs and resistor footprint
IOREF and GND power lines
SPI signals pads
24-pin SMD footprint (50 mils pitch)
Applications
Embedded development
Educational institutions
Robotics
Human machine interface
Electronics laboratories
Automation
Educational institutions
Robotics
Human machine interface
Electronics laboratories
Automation
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
