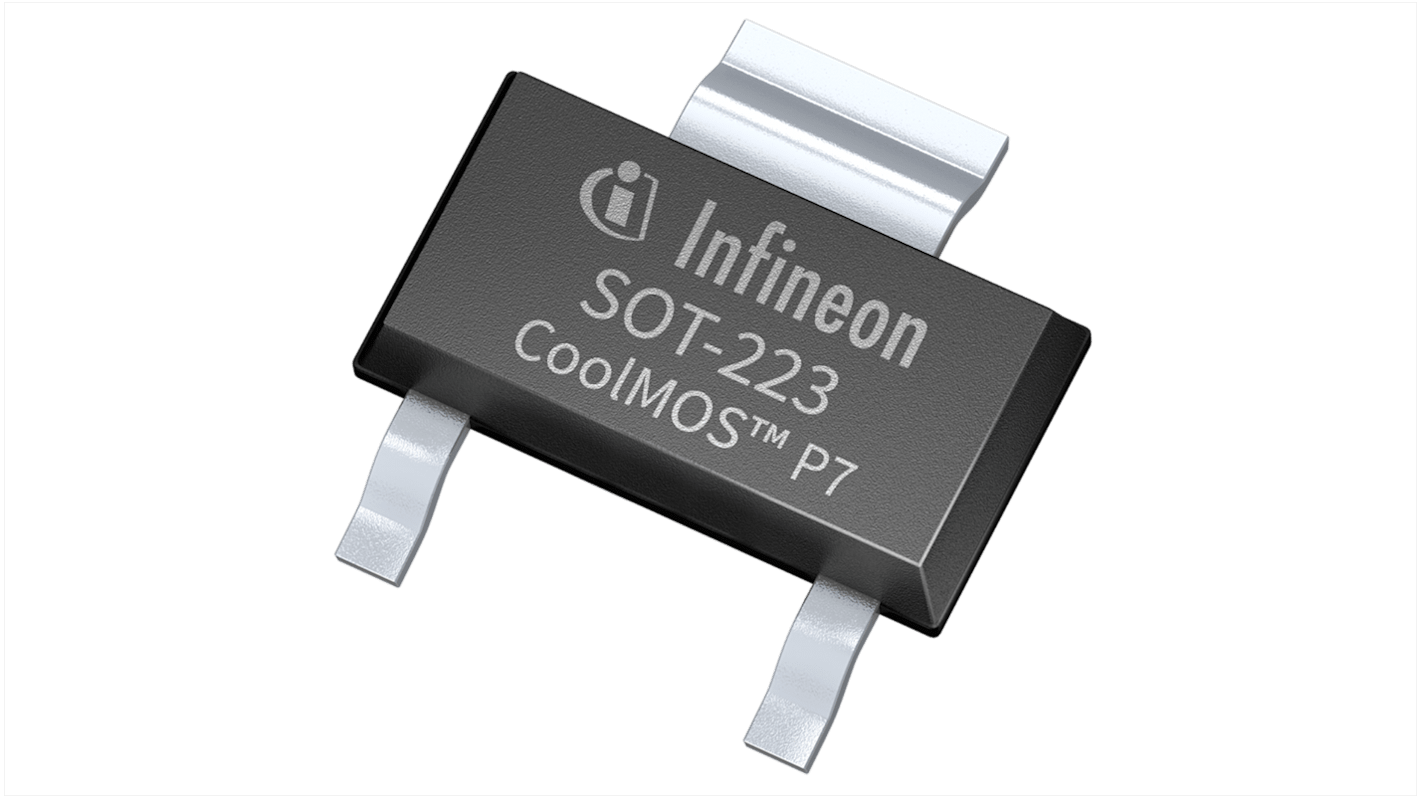

Infineon 700V CoolMOSª P7 Type N-Channel MOSFET, 8.5 A, 700 V, 3-Pin SOT-223
- RS-artikelnummer:
- 218-3064
- Tillv. art.nr:
- IPN70R600P7SATMA1
- Tillverkare / varumärke:
- Infineon
Mängdrabatt möjlig
Antal (1 rulle med 3000 enheter)*
10 092,00 kr
(exkl. moms)
12 615,00 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
I lager
- Dessutom levereras 3 000 enhet(er) från den 29 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet | Per rulle* |
|---|---|---|
| 3000 - 3000 | 3,364 kr | 10 092,00 kr |
| 6000 + | 3,196 kr | 9 588,00 kr |
*vägledande pris
- RS-artikelnummer:
- 218-3064
- Tillv. art.nr:
- IPN70R600P7SATMA1
- Tillverkare / varumärke:
- Infineon
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 8.5A | |
| Maximum Drain Source Voltage Vds | 700V | |
| Series | 700V CoolMOSª P7 | |
| Package Type | SOT-223 | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 600mΩ | |
| Forward Voltage Vf | 0.9V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Gate Source Voltage Vgs | 16 V | |
| Typical Gate Charge Qg @ Vgs | 10.5nC | |
| Maximum Power Dissipation Pd | 6.9W | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Length | 6.7mm | |
| Height | 1.8mm | |
| Width | 3.7 mm | |
| Automotive Standard | No | |
| Välj alla | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 8.5A | ||
Maximum Drain Source Voltage Vds 700V | ||
Series 700V CoolMOSª P7 | ||
Package Type SOT-223 | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 600mΩ | ||
Forward Voltage Vf 0.9V | ||
Minimum Operating Temperature -40°C | ||
Maximum Gate Source Voltage Vgs 16 V | ||
Typical Gate Charge Qg @ Vgs 10.5nC | ||
Maximum Power Dissipation Pd 6.9W | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Length 6.7mm | ||
Height 1.8mm | ||
Width 3.7 mm | ||
Automotive Standard No | ||
The Infineon 700V CoolMOS™ N-channel power MOSFET. The latest CoolMOS™ P7 is an optimized platform tailored to target cost sensitive applications in consumer markets such as charger, adapter, lighting, TV, etc. The new series provides all the benefits of a fast switching Superjunction MOSFET, combined with an excellent price/performance ratio and state of the art ease-of-use level.
Extremely low losses due to very low FOM RDS(on)*Qg and RDS(on)*Eoss
Excellent thermal behaviour
Integrated ESD protection diode
Low switching losses (Eoss)
