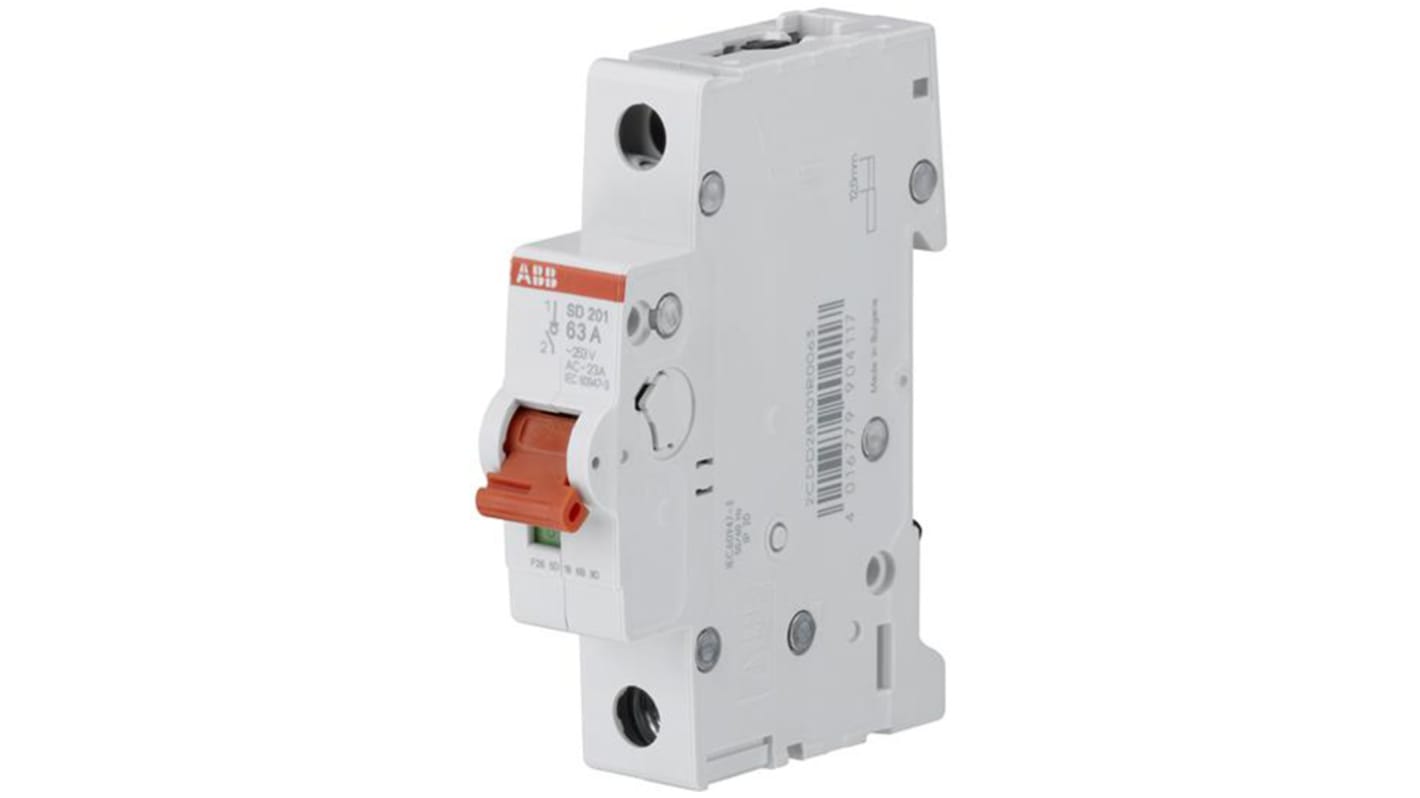

ABB 1P Pole Isolator Switch - 63A Maximum Current

Se alla Isolator Switches

Antal (1 enhet)*

225,00 kr

(exkl. moms)

281,25 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 27 enhet(er) är redo att levereras
  • Plus 2 enhet(er) är redo att levereras från en annan plats
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +225,00 kr

*vägledande pris

RS-artikelnummer:
175-5082
Tillv. art.nr:
2CDD281101R0063 SD201/63
Tillverkare / varumärke:
ABB
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

ABB

Number of Poles

1P

Maximum Current

63A

Voltage Rating

125 V dc, 440V ac

Accepts Padlocks

Yes

Auxiliary Contacts Available

Yes

Range

Pro M Compact

Series

SD201

Normal State Configuration

NO

Length

17.5mm

Width

69mm

Depth

88mm

Maximum Operating Temperature

+55°C

Minimum Operating Temperature

-25°C

Throw Configuration

SPST

Terminal Type

Screw

The SD 200 extends the proven System pro M compact ® series by a new range of switch disconnectors which provides state-of-the-art safety and comfort. The series is available with 1 to 4 poles with rated currents from 16 to 63 A and provides disconnection properties. With a rated voltage of 253/440 V AC, a rated conditional short-circuit current of 25 kA, terminals with protection from misconnection, a “Real CPI” contact position indication, as well as full compatibility with all MCB accessories, SD 200 is unique in its field of application.

Clear contact position indication in red/green (“Real CPI”)
Highest performance at an increased voltage level
35 mm² cylinder lift terminal with 2 terminal openings
Consistent design to other System pro M DIN rail products
Cross wiring with MCBs or RCDs using busbars PS
Durable device identification due to laser labeling
Captive screws with recessed head
