ABB 2P Pole Isolator Switch - 63A Maximum Current

RS-artikelnummer:: 175-5088
Tillv. art.nr:: 2CDD282101R0063 SD202/63
Tillverkare / varumärke:: ABB

ABB 2P Pole Isolator Switch - 63A Maximum Current

Se alla Isolator Switches

Antal (1 enhet)*

482,57 kr

(exkl. moms)

603,21 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

20 enhet(er) är redo att levereras
Plus 1 enhet(er) är redo att levereras från en annan plats

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 +	482,57 kr

*vägledande pris

RS-artikelnummer:: 175-5088
Tillv. art.nr:: 2CDD282101R0063 SD202/63
Tillverkare / varumärke:: ABB

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	ABB
	Number of Poles	2P
	Maximum Current	63A
	Voltage Rating	125 V dc, 440V ac
	Accepts Padlocks	Yes
	Range	Pro M Compact
	Series	SD202
	Auxiliary Contacts Available	Yes
	Normal State Configuration	2NO
	Length	35mm
	Width	69mm
	Depth	88mm
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	+55°C
	Terminal Type	Screw
	Throw Configuration	DPST

	Välj alla
	Brand ABB
	Number of Poles 2P
	Maximum Current 63A
	Voltage Rating 125 V dc, 440V ac
	Accepts Padlocks Yes
	Range Pro M Compact
	Series SD202
	Auxiliary Contacts Available Yes
	Normal State Configuration 2NO
	Length 35mm
	Width 69mm
	Depth 88mm
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature +55°C
	Terminal Type Screw
	Throw Configuration DPST

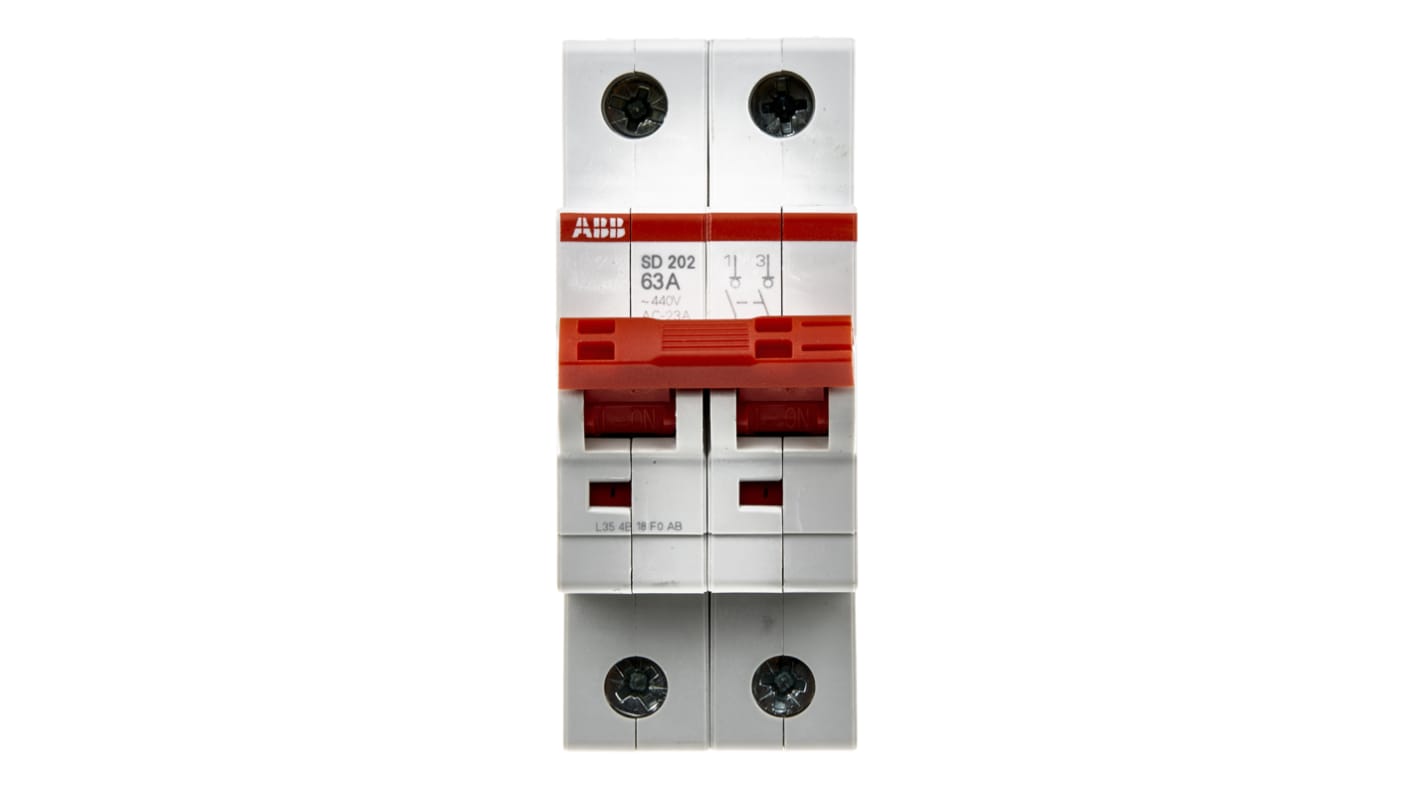

ABB Isolator Switch, DIN Rail Mounting, 125V DC/440V AC Voltage Rating - SD202 Series - 2CDD282101R0063 SD202/63

Need to safely access a part of your electric circuit? Use this isolator switch from ABB. It cuts off power to a specific part of your system to prevent electric hazards. Controlling it is easy, thanks to the front-facing toggle switch. A maximum current rating of 63A means you can use this device in high-power equipment. It's designed to accept a padlock so you can seal it to prevent unauthorised operators. For easy configuration, the built-in contact position switches between red and green to show its current state.

Features & Benefits

• Mechanical endurance of 20,000 cycles for durable performance
• Resistant to shock and vibration to withstand demanding conditions
• Cylinder lift terminal has two openings for versatile wiring
• Broad operating temperature range between -25°C and +55°C to withstand harsh settings

Applications

• Commercial buildings
• Power stations
• Automotive engineering
• Manufacturing industry

How do I mount this isolator switch?

You can mount this isolator switch by simply clipping it onto a DIN rail. For flexible assembly, you can install it in any position.
