ABB 1P Pole Isolator Switch - 16A Maximum Current

RS-artikelnummer:: 175-5077
Tillv. art.nr:: 2CDD281101R0016 SD201/16
Tillverkare / varumärke:: ABB

ABB 1P Pole Isolator Switch - 16A Maximum Current

Se alla Isolator Switches

Antal (1 enhet)*

131,33 kr

(exkl. moms)

164,16 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

78 enhet(er) är redo att levereras
Plus 5 enhet(er) är redo att levereras från en annan plats

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 +	131,33 kr

*vägledande pris

RS-artikelnummer:: 175-5077
Tillv. art.nr:: 2CDD281101R0016 SD201/16
Tillverkare / varumärke:: ABB

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	ABB
	Number of Poles	1P
	Maximum Current	16A
	Voltage Rating	60 V dc, 253V ac
	Accepts Padlocks	Yes
	Series	SD201
	Normal State Configuration	NO
	Range	Pro M Compact
	Auxiliary Contacts Available	Yes
	Length	17.5mm
	Width	69mm
	Depth	88mm
	Throw Configuration	SPST
	Maximum Operating Temperature	+55°C
	Terminal Type	Screw
	Minimum Operating Temperature	-25°C

	Välj alla
	Brand ABB
	Number of Poles 1P
	Maximum Current 16A
	Voltage Rating 60 V dc, 253V ac
	Accepts Padlocks Yes
	Series SD201
	Normal State Configuration NO
	Range Pro M Compact
	Auxiliary Contacts Available Yes
	Length 17.5mm
	Width 69mm
	Depth 88mm
	Throw Configuration SPST
	Maximum Operating Temperature +55°C
	Terminal Type Screw
	Minimum Operating Temperature -25°C

Datasheet

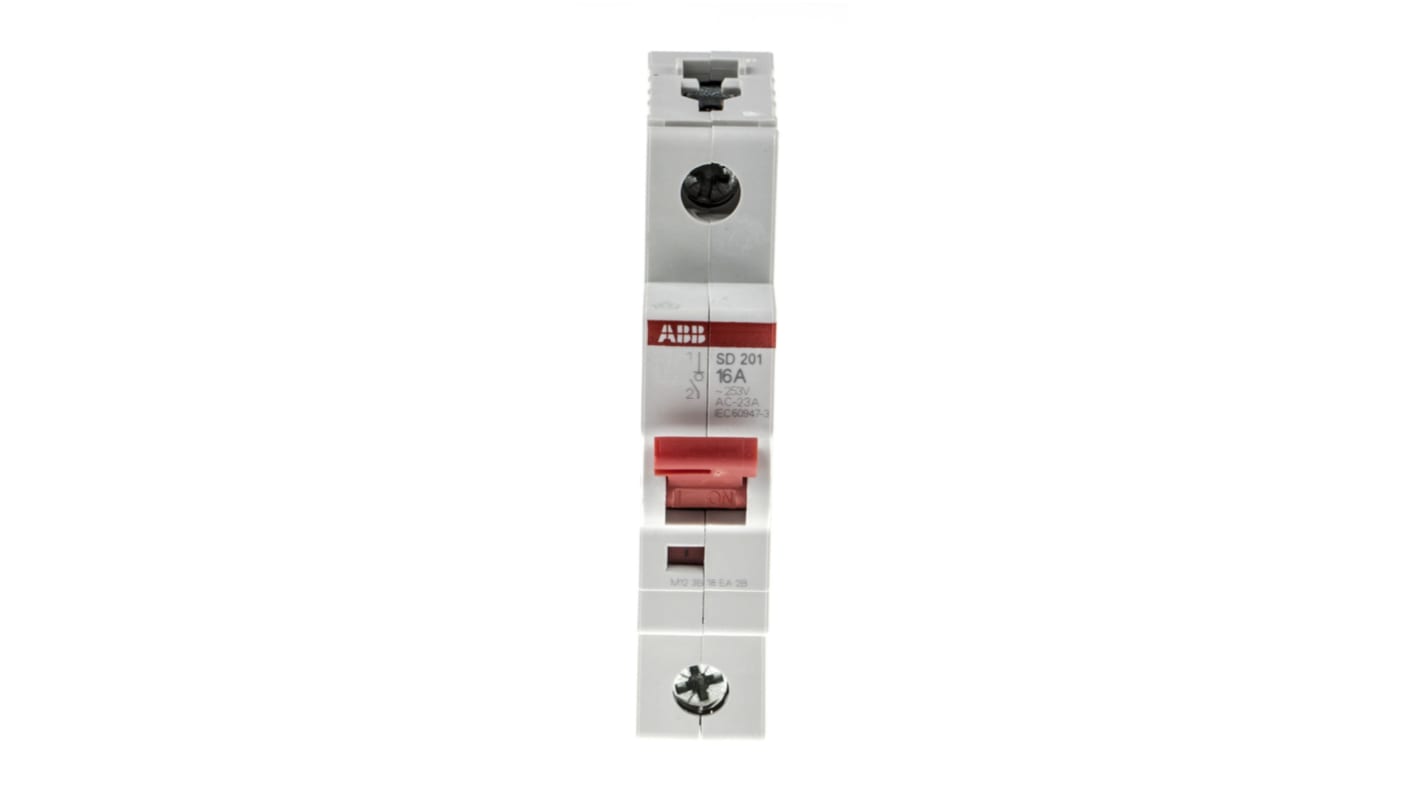

ABB 1-Pole DIN Rail Switch Disconnector

The ABB SD 201 is a single-pole DIN rail switch disconnector. It is a pro-M compact series by a new range of switch disconnectors that provides state-of-the-art safety and comfort. It has a clear contact position indication in red/green colour. The laser printing and design of the device allow a consistent optical appearance in the distribution board. Its service temperature ranges between -25°C and 55°C.

Features and Benefits

• Accepts padlocks
• Captive screws with recessed head
• Compatibility with all the MCB accessories
• Consistent design to other System pro M DIN rail products
• Cross wiring with MCBs or RCDs using bus bars
• Durable device identification due to laser labelling
• Highest performance at an increased voltage level
• Maximum current is 16A
• Rated voltage is 60VDC and 253VAC
• Short-circuit current is 25 kA

Applications

• Electronic appliances
• Industrial appliances
• Power supplies
• Power tools
• Uninterruptible power supply

Certifications

• IEC/EN 60947-3
• IP20 rated
• IP40 rated
