Through Hole Audio Transformer 2.5 kΩ, 10 kΩ 100mW

Se alla Audio Transformers
Mängdrabatt möjlig

Antal (1 enhet)*

251,22 kr

(exkl. moms)

314,02 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • Dessutom levereras 10 enhet(er) från den 15 december 2025
  • Dessutom levereras 20 enhet(er) från den 22 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 - 9251,22 kr
10 +246,51 kr

*vägledande pris

RS-artikelnummer:
123-7207
Tillv. art.nr:
A262A8E
Tillverkare / varumärke:
OEP
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

OEP

Primary Impedance

2.5 kΩ, 10 kΩ

Secondary Impedance

2.5 kΩ, 10 kΩ

Primary DC Resistance

424Ω

Power Rating

100mW

Secondary DC Resistance

464Ω

Dimensions

27.94 x 22.9 x 22.2mm

Mounting Type

Through Hole

Termination Type

PC Pin

Weight

40g

Depth

22.2mm

Length

27.94mm

Width

22.9mm

Maximum Operating Frequency

35kHz

Construction

Enclosed

Isolation Voltage

1000V

Maximum Temperature

+70°C

Turns Ratio

1+1:1+1

Minimum Temperature

-25°C

Core Type

Laminated

Minimum Operating Frequency

30Hz

COO (ursprungsland):
GB

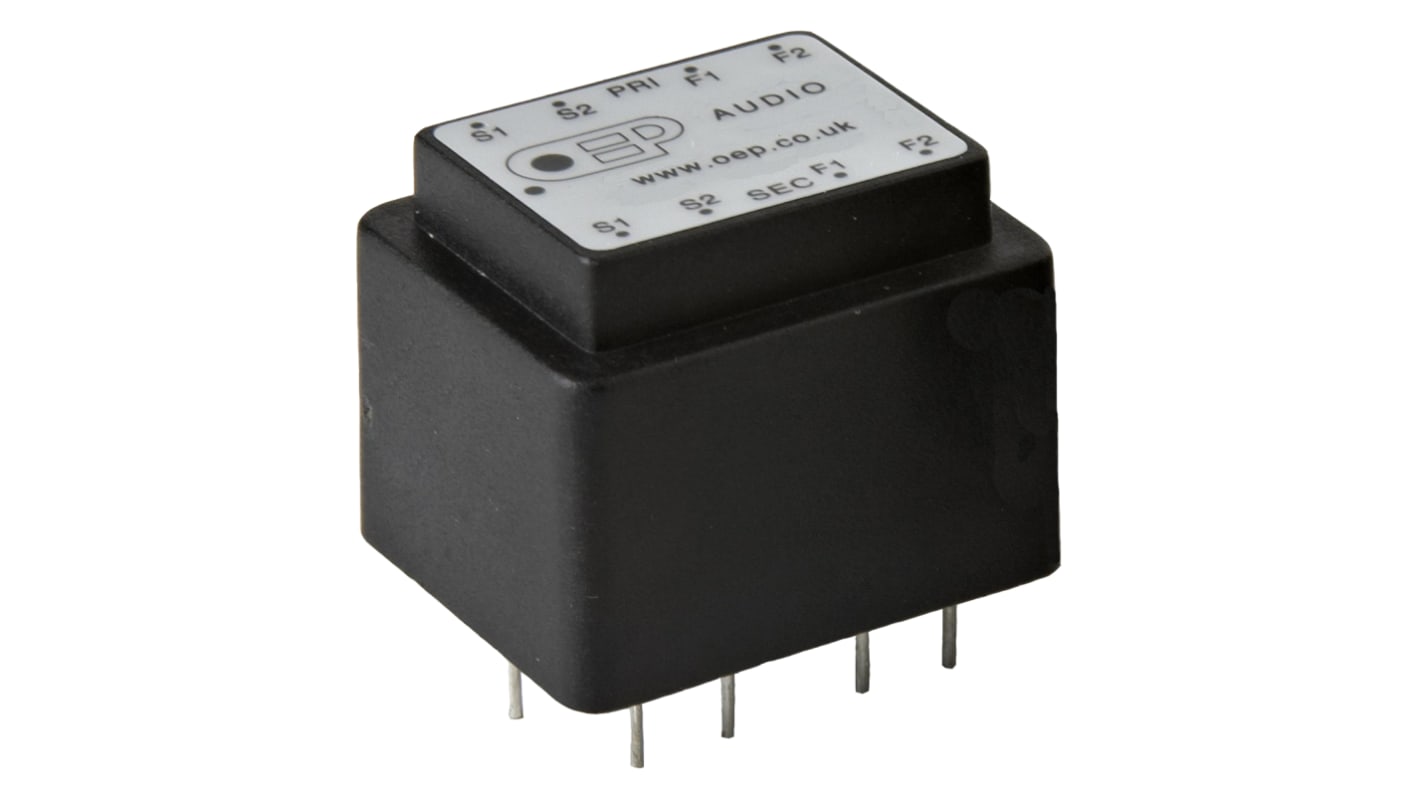

OEP PCB Mounted Audio Matching Transformer 300Hz


This range of 100 mW 300 Hz audio transformers from OEP feature electrostatic screening and are suitable for PCB mounting. They are ideal for use in low-power outputs and can be used for both microphone inputs and line inputs.

A mumetal screening can is available for these audio transformers. See 210-6469

Note

Do not pass DC through the windings.
