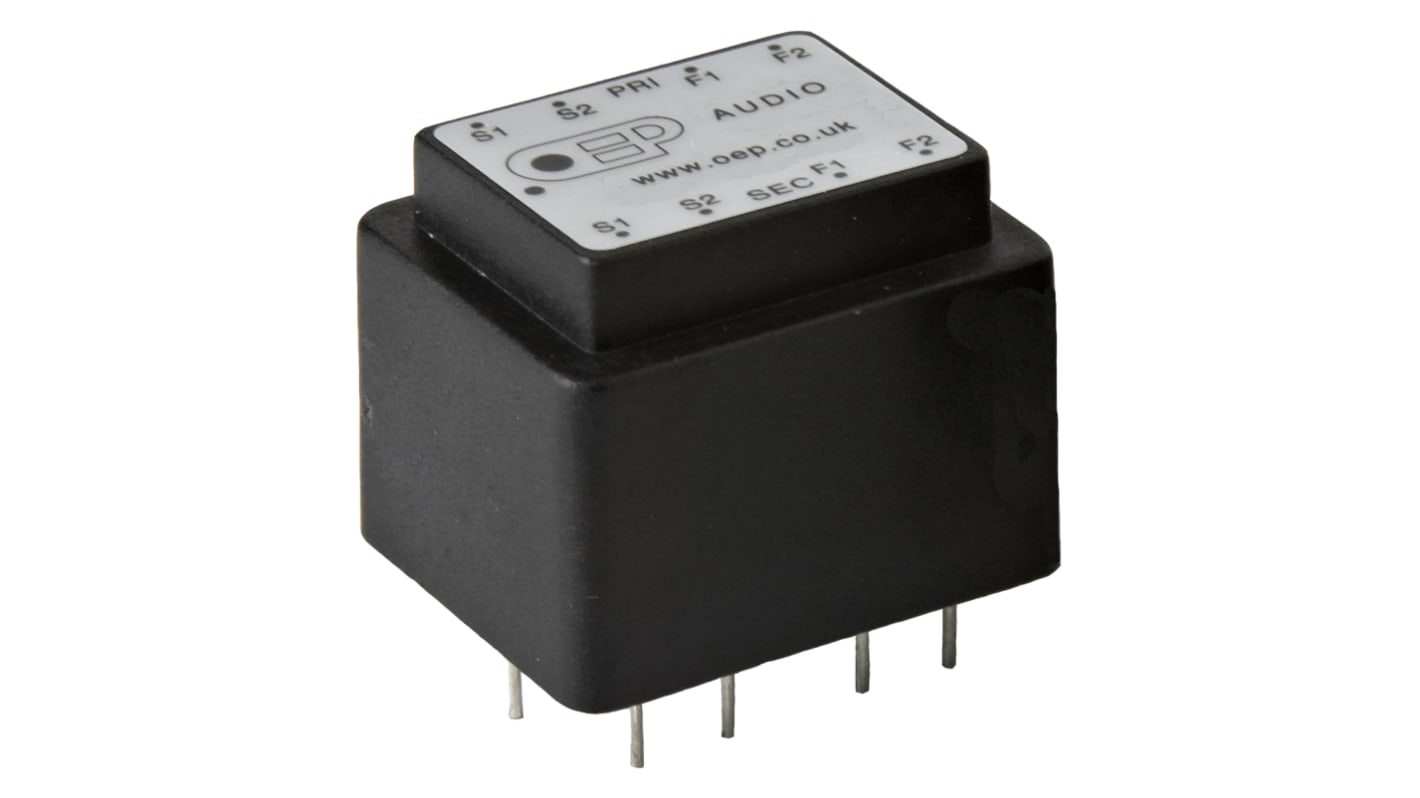

OEP Through Hole Audio Transformer 100 mW
- RS-artikelnummer:
- 123-7208
- Tillv. art.nr:
- A262A41E
- Tillverkare / varumärke:
- OEP
Mängdrabatt möjlig
Antal (1 enhet)*
473,76 kr
(exkl. moms)
592,20 kr
(inkl. moms)
Lägg till 2 enheter för att få fri frakt
I lager
- 4 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 9 | 473,76 kr |
| 10 + | 464,80 kr |
*vägledande pris
- RS-artikelnummer:
- 123-7208
- Tillv. art.nr:
- A262A41E
- Tillverkare / varumärke:
- OEP
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | OEP | |
| Product Type | Audio Transformer | |
| Primary DC Resistance | 132Ω | |
| Secondary DC Resistance | 190Ω | |
| Mount Type | Through Hole | |
| Termination Type | PC Pin | |
| Secondary Power | 100mW | |
| Minimum Operating Temperature | -25°C | |
| Number of Pins | 8 | |
| Maximum Operating Temperature | 70°C | |
| Length | 27.94mm | |
| Series | A262A41E | |
| Standards/Approvals | RoHS | |
| Weight | 40g | |
| Width | 22.2 mm | |
| Depth | 28mm | |
| Isolation Voltage | 1kV | |
| Maximum Operating Frequency | 30kHz | |
| Minimum Operating Frequency | 5Hz | |
| Construction | Enclosed | |
| Turns Ratio | 1 + 1 : 1 + 1 | |
| Välj alla | ||
|---|---|---|
Brand OEP | ||
Product Type Audio Transformer | ||
Primary DC Resistance 132Ω | ||
Secondary DC Resistance 190Ω | ||
Mount Type Through Hole | ||
Termination Type PC Pin | ||
Secondary Power 100mW | ||
Minimum Operating Temperature -25°C | ||
Number of Pins 8 | ||
Maximum Operating Temperature 70°C | ||
Length 27.94mm | ||
Series A262A41E | ||
Standards/Approvals RoHS | ||
Weight 40g | ||
Width 22.2 mm | ||
Depth 28mm | ||
Isolation Voltage 1kV | ||
Maximum Operating Frequency 30kHz | ||
Minimum Operating Frequency 5Hz | ||
Construction Enclosed | ||
Turns Ratio 1 + 1 : 1 + 1 | ||
OEP PCB Mounted Audio Matching Transformer 300Hz
This range of 100 mW 300 Hz audio transformers from OEP feature electrostatic screening and are suitable for PCB mounting. They are ideal for use in low-power outputs and can be used for both microphone inputs and line inputs.
A mumetal screening can is available for these audio transformers. See 210-6469
Note
Do not pass DC through the windings.
