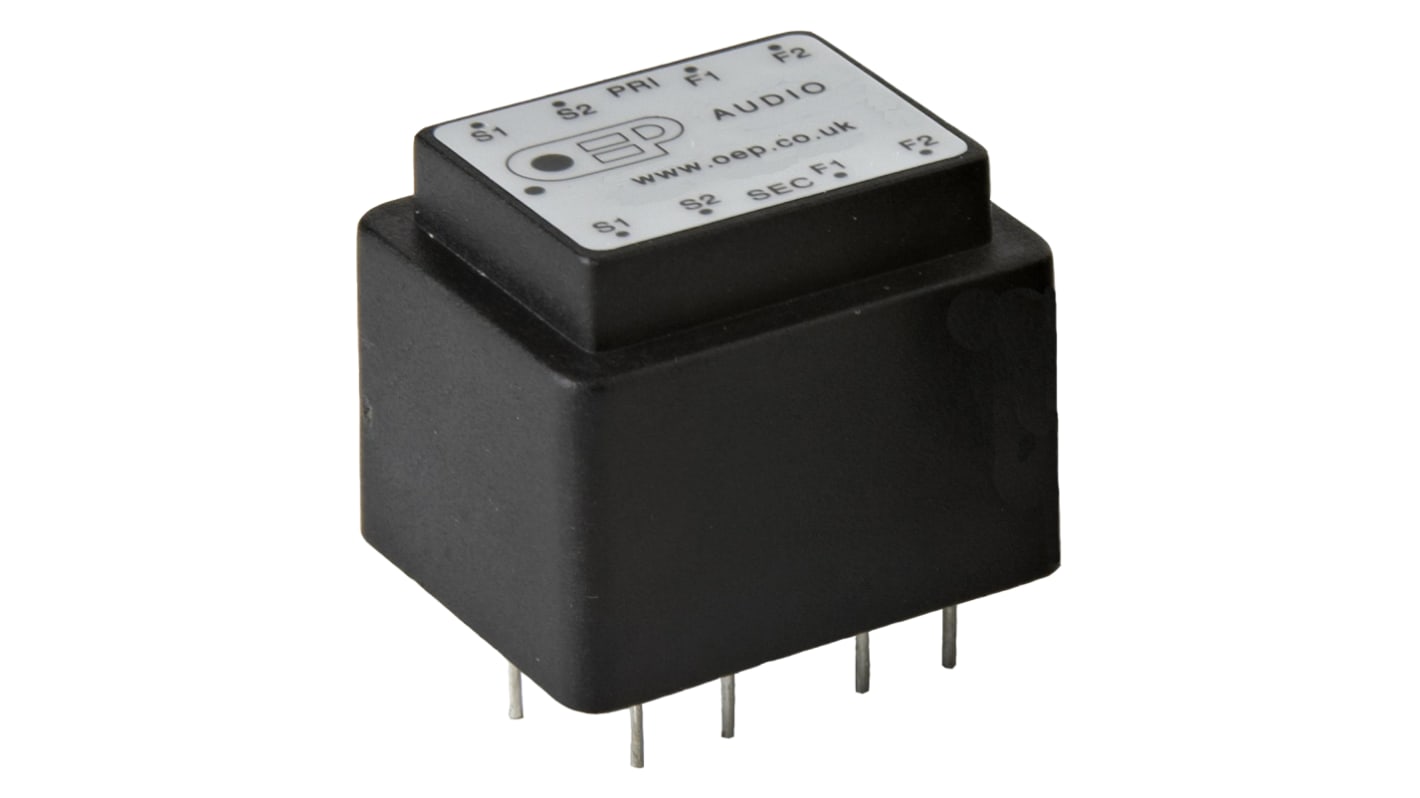

OEP Through Hole Audio Transformer
- RS-artikelnummer:
- 123-7209
- Tillv. art.nr:
- A262A45E/1
- Tillverkare / varumärke:
- OEP
Mängdrabatt möjlig
Antal (1 enhet)*
503,44 kr
(exkl. moms)
629,30 kr
(inkl. moms)
Lägg till 1 enhet för att få fri frakt
I lager
- 4 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 9 | 503,44 kr |
| 10 + | 493,36 kr |
*vägledande pris
- RS-artikelnummer:
- 123-7209
- Tillv. art.nr:
- A262A45E/1
- Tillverkare / varumärke:
- OEP
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | OEP | |
| Product Type | Audio Transformer | |
| Primary Impedance | 800Ω | |
| Primary DC Resistance | 24Ω | |
| Secondary DC Resistance | 1076Ω | |
| Mount Type | Through Hole | |
| Termination Type | PC Pin | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 70°C | |
| Weight | 40g | |
| Length | 28mm | |
| Standards/Approvals | RoHS | |
| Depth | 28mm | |
| Width | 22.2 mm | |
| Isolation Voltage | 1kV | |
| Maximum Operating Frequency | 25kHz | |
| Construction | Enclosed | |
| Turns Ratio | 1+1:5+5 | |
| Minimum Operating Frequency | 30Hz | |
| Välj alla | ||
|---|---|---|
Brand OEP | ||
Product Type Audio Transformer | ||
Primary Impedance 800Ω | ||
Primary DC Resistance 24Ω | ||
Secondary DC Resistance 1076Ω | ||
Mount Type Through Hole | ||
Termination Type PC Pin | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 70°C | ||
Weight 40g | ||
Length 28mm | ||
Standards/Approvals RoHS | ||
Depth 28mm | ||
Width 22.2 mm | ||
Isolation Voltage 1kV | ||
Maximum Operating Frequency 25kHz | ||
Construction Enclosed | ||
Turns Ratio 1+1:5+5 | ||
Minimum Operating Frequency 30Hz | ||
OEP PCB Mounted Audio Matching Transformer 300Hz
This range of 100 mW 300 Hz audio transformers from OEP feature electrostatic screening and are suitable for PCB mounting. They are ideal for use in low-power outputs and can be used for both microphone inputs and line inputs.
A mumetal screening can is available for these audio transformers. See 210-6469
Note
Do not pass DC through the windings.
