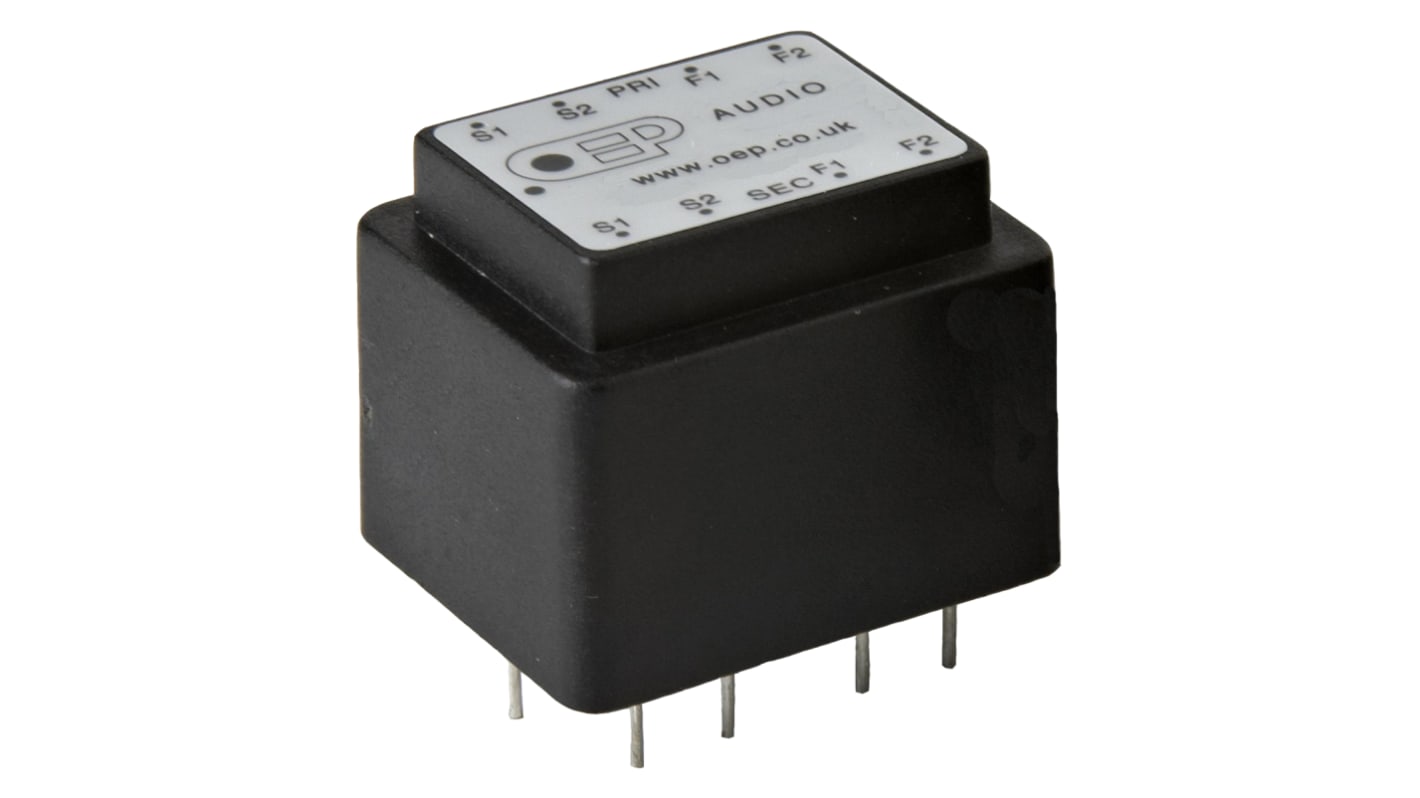

OEP Through Hole Audio Transformer
- RS-artikelnummer:
- 123-7211
- Tillv. art.nr:
- A262A48E
- Tillverkare / varumärke:
- OEP
Mängdrabatt möjlig
Antal (1 enhet)*
506,02 kr
(exkl. moms)
632,52 kr
(inkl. moms)
Lägg till 1 enhet för att få fri frakt
I lager
- 29 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter | Per enhet |
|---|---|
| 1 - 9 | 506,02 kr |
| 10 + | 495,82 kr |
*vägledande pris
- RS-artikelnummer:
- 123-7211
- Tillv. art.nr:
- A262A48E
- Tillverkare / varumärke:
- OEP
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | OEP | |
| Product Type | Audio Transformer | |
| Primary Impedance | 150Ω | |
| Primary DC Resistance | 20.6Ω | |
| Secondary DC Resistance | 220Ω | |
| Mount Type | Through Hole | |
| Termination Type | PC Pin | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | 70°C | |
| Length | 22.9mm | |
| Depth | 28mm | |
| Width | 27.94 mm | |
| Standards/Approvals | No | |
| Weight | 40g | |
| Turns Ratio | 1+1:2.89+2.89 | |
| Construction | Enclosed | |
| Maximum Operating Frequency | 30kHz | |
| Minimum Operating Frequency | 30Hz | |
| Isolation Voltage | 1kV | |
| Välj alla | ||
|---|---|---|
Brand OEP | ||
Product Type Audio Transformer | ||
Primary Impedance 150Ω | ||
Primary DC Resistance 20.6Ω | ||
Secondary DC Resistance 220Ω | ||
Mount Type Through Hole | ||
Termination Type PC Pin | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature 70°C | ||
Length 22.9mm | ||
Depth 28mm | ||
Width 27.94 mm | ||
Standards/Approvals No | ||
Weight 40g | ||
Turns Ratio 1+1:2.89+2.89 | ||
Construction Enclosed | ||
Maximum Operating Frequency 30kHz | ||
Minimum Operating Frequency 30Hz | ||
Isolation Voltage 1kV | ||
OEP PCB Mounted Audio Matching Transformer 300Hz
This range of 100 mW 300 Hz audio transformers from OEP feature electrostatic screening and are suitable for PCB mounting. They are ideal for use in low-power outputs and can be used for both microphone inputs and line inputs.
A mumetal screening can is available for these audio transformers. See 210-6469
Note
Do not pass DC through the windings.
