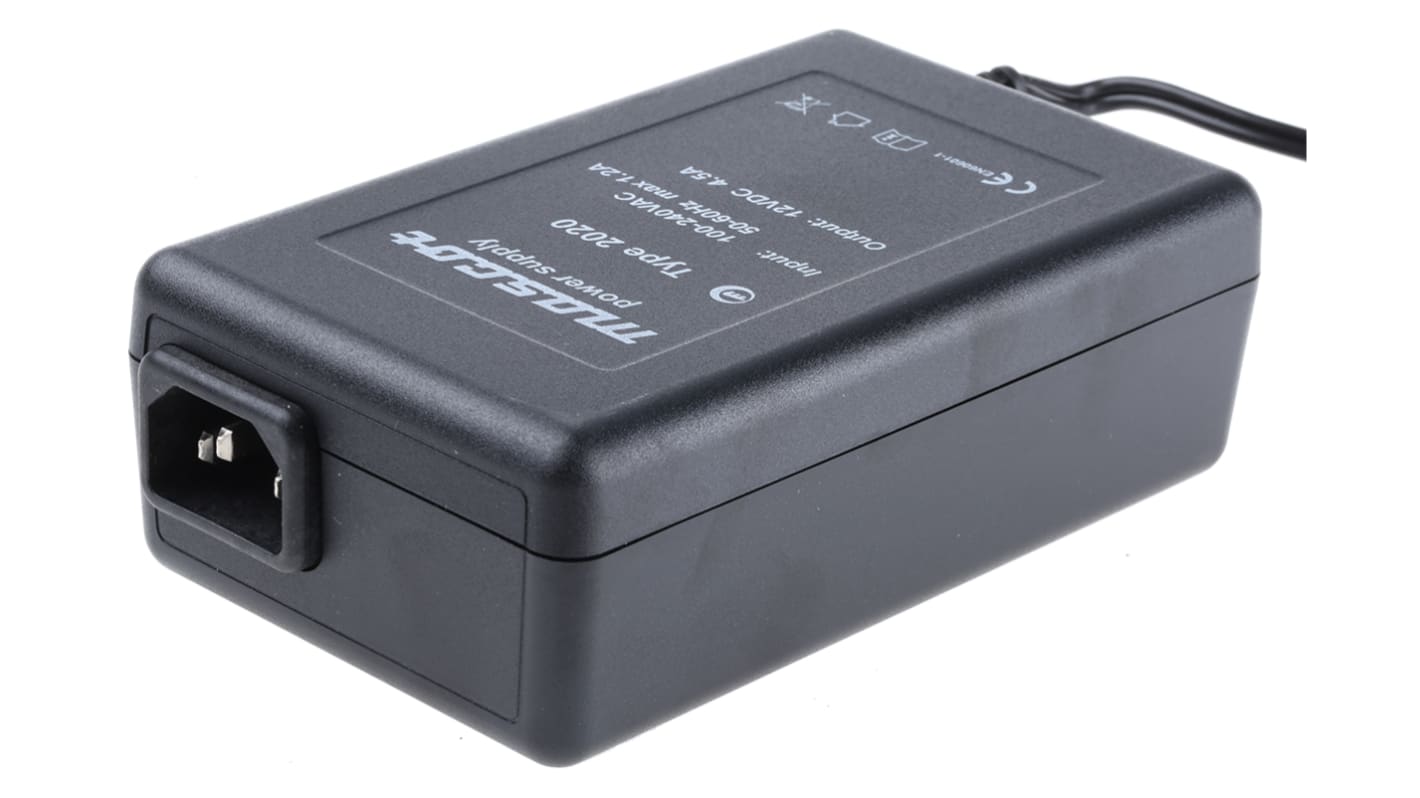

Mascot Power Brick AC/DC Adapter 12V dc Output, 4.5A Output

RS-artikelnummer:: 397-9763
Tillv. art.nr:: 2020000041
Tillverkare / varumärke:: Mascot

Mascot Power Brick AC/DC Adapter 12V dc Output, 4.5A Output

Mängdrabatt möjlig

Antal (1 enhet)*

1 225,82 kr

(exkl. moms)

1 532,28 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

Dessutom levereras 13 enhet(er) från den 26 januari 2026
Dessutom levereras 3 enhet(er) från den 26 januari 2026
Dessutom levereras 1 enhet(er) från den 02 februari 2026

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 - 4	1 225,82 kr
5 - 9	1 189,10 kr
10 - 24	1 152,37 kr
25 - 49	1 115,52 kr
50 +	1 078,90 kr

*vägledande pris

RS-artikelnummer:: 397-9763
Tillv. art.nr:: 2020000041
Tillverkare / varumärke:: Mascot

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Mascot
	Adapter Type	Power Brick Adapter
	Plug Type	3-Pin IEC
	Output Voltage	12V dc
	Input Voltage	198 → 264 V ac, 260 → 340V dc
	Output Current	4.5A
	Maximum Temperature	+40°C
	Output Connector	2.1 x 5.5 x 12 mm Female Coaxial Plug with Snap-Lock, 2.5 x 5.5 x 12 mm Female Coaxial Plug with Snap-Lock
	Input Connector	IEC 320
	Number of Outputs	1
	Cable Length	1800mm
	Medical Approved	Yes
	Efficiency	80%
	Width	80mm
	Depth	44mm
	Minimum Temperature	-20°C
	Load Regulation	±0.5%
	Line Regulation Range	±0.5%
	Length	135mm

	Välj alla
	Brand Mascot
	Adapter Type Power Brick Adapter
	Plug Type 3-Pin IEC
	Output Voltage 12V dc
	Input Voltage 198 → 264 V ac, 260 → 340V dc
	Output Current 4.5A
	Maximum Temperature +40°C
	Output Connector 2.1 x 5.5 x 12 mm Female Coaxial Plug with Snap-Lock, 2.5 x 5.5 x 12 mm Female Coaxial Plug with Snap-Lock
	Input Connector IEC 320
	Number of Outputs 1
	Cable Length 1800mm
	Medical Approved Yes
	Efficiency 80%
	Width 80mm
	Depth 44mm
	Minimum Temperature -20°C
	Load Regulation ±0.5%
	Line Regulation Range ±0.5%
	Length 135mm

Mascot 9W to 60W Medical Approved Single Output Switch Mode Desktop Power Supply

Medically approved (EN 60601) external switch mode power supplies
High efficiency
Fully regulated output
Over voltage and short circuit protection
Isolation 4kV input/output
EMC immunity to EN 50082-1, medical EN 60601-1-2
1.8m (approx.) output lead with polarity inverter
2-pin or 3-pin IEC320 input connection

Note

Non Compliant For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.

Standards

EN 60950 EN 60601 (UL 2601-1)

Approvals

UL recognised component for Canada and US (12 & 24V only)

Supplied with

2 loose connectors with snap-lock feature, allowing 4 connection options, 2.1x5.5x12mm and 2.5x5.5x12mm female co-ax plugs.
