    Belts & Pulleys

    We offer an extensive range of power transmission belts for any automation or industrial requirement. Find polyurethane belts, twist link, and timing belts as well as wedge and vee friction belts from top brands like Contitech. You can also browse a wide selection of RS Pro branded belts at competitive prices.

    The RS selection of pulleys is designed to perfectly compliment our range of power transmission belts. Within this section, you will find timing belt pulleys and wedge and vee belt pulleys - all RS Pro branded to help you shop for total quality at competitive prices.

    What are Power Transmission Belts?

    Power transmission belts help to drive the transmission by the transfer of power to different parts in the system. This system normally consists of a belt and at least two pulleys to transmit the motion needed, commonly used in the automotive industry.

    Types of Power Transmission Belts

    Power transmission belts come in various types and styles. Popular types include:

    V-belts - have tapered sides and a flat bottom with a trapezoidal cross-section. They work by using the friction between the belt and the pulley to transfer power and have a higher power transmission capacity than flat belts. V-belts are popular due to ease of installation, low cost and are available in a wide range of sizes.

    Synchronous belts - also known as timing belts, have a toothed profile and can be used as an alternative to chains and gears. They overcome belt slippage with teeth that engage with corresponding grooves in the pulley or sprocket boosting drive efficiency above a V-belt. They're used in high-powered transmission applications, such as water pumps, fuel injection pumps and camshafts. They are thin and flexible making them ideal for use where high speed or small pulleys are required. They are less noisy than chain drives and energy-efficient through the life of the belt.

    Flat belts - have a rectangular cross-section that provides a greater level of consistent friction between belts and pulleys. They have low creep and are efficient due to their low bending losses and energy-saving properties and are used in all areas of industrial areas using power transmission for their versatility.

    Belt Diagnostic Kits
    Belt Diagnostic Kits
    Belt Pulleys
    Belt Pulleys
    Drive Belt Gauges
    Drive Belt Gauges
    Laser Alignment Tools
    Laser Alignment Tools
    Link Belts
    Link Belts
    Poly V Belts
    Poly V Belts
    Profile & Round Belts
    Profile & Round Belts
    Timing Belts
    Timing Belts
    V & Wedge Belts
    V & Wedge Belts

    13099 Produkter som visas för Belts & Pulleys

    11 av 655
    OPTIBELT 32 T10 / 1610 Timing Belt, 161 Teeth, 1610mm Length, 32mm Width
    • RS-artikelnummer 217-1437
    • Tillv. art.nr 32 T10 / 1610
    Varje
    1 067,06 kr

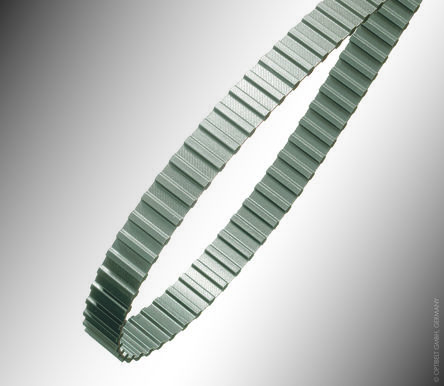

    OPTIBELT 16 DT10 / 750 AP Double Sided Timing Belt, 75 Teeth, 750mm Length, 16mm Width
    • RS-artikelnummer 193-948
    • Tillv. art.nr 16 DT10 / 750 AP
    Varje
    406,90 kr
    Contitech 800 5M 9 Timing Belt, 160 Teeth, 800mm Length, 9mm Width
    • RS-artikelnummer 475-0305
    • Tillv. art.nr 800 5M 9
    Varje
    110,74 kr
    OPTIBELT 12 T10 / 600 Timing Belt, 60 Teeth, 600mm Length, 12mm Width
    • RS-artikelnummer 217-0206
    • Tillv. art.nr 12 T10 / 600
    Varje
    206,67 kr
    OPTIBELT 850 5M 9 Timing Belt, 170 Teeth, 850mm Length, 9mm Width
    • RS-artikelnummer 204-2960
    • Tillv. art.nr 850 5M 9
    Varje
    130,43 kr

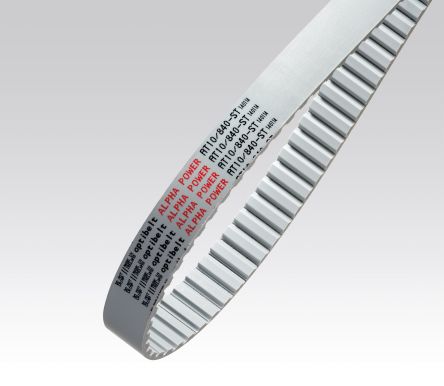

    OPTIBELT Timing Belt, 109 Teeth, 545mm Length, 10mm Width
    • RS-artikelnummer 178-943
    • Tillv. art.nr 10 T5 / 545 AP
    Varje
    202,61 kr
    OPTIBELT 339 3M 6 Timing Belt, 113 Teeth, 339mm Length, 6mm Width
    • RS-artikelnummer 217-1484
    • Tillv. art.nr 339 3M 6
    Varje
    56,79 kr

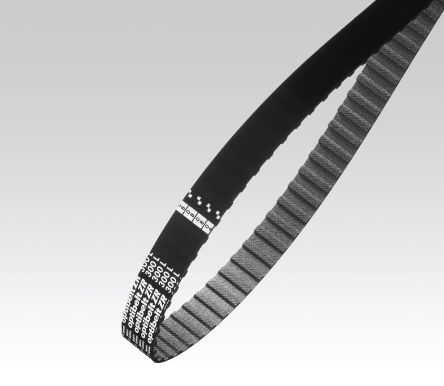

    OPTIBELT 200 XL 025 Timing Belt, 100 Teeth, 508mm Length, 6.35mm Width
    • RS-artikelnummer 217-0670
    • Tillv. art.nr 200 XL 025
    Varje
    45,25 kr
    OPTIBELT 460 5M 15 Timing Belt, 92 Teeth, 460mm Length, 15mm Width
    • RS-artikelnummer 217-1641
    • Tillv. art.nr 460 5M 15
    Varje
    139,82 kr
    Contitech 600 8M 30 Timing Belt, 75 Teeth, 600mm Length, 30mm Width
    • RS-artikelnummer 475-0771
    • Tillv. art.nr 600 8M 30
    Varje
    253,84 kr
    OPTIBELT 712 8M 20 Timing Belt, 89 Teeth, 712mm Length, 20mm Width
    • RS-artikelnummer 175-784
    • Tillv. art.nr 712 8M 20
    Varje
    222,21 kr
    OPTIBELT 50 AT10 / 1940 Timing Belt, 194 Teeth, 1940mm Length, 50mm Width
    • RS-artikelnummer 217-1686
    • Tillv. art.nr 50 AT10 / 1940
    Varje
    2 204,60 kr
    OPTIBELT 16 T10 / 1150 Timing Belt, 115 Teeth, 1150mm Length, 16mm Width
    • RS-artikelnummer 175-3001
    • Tillv. art.nr 16 T10 / 1150
    Varje
    438,45 kr
    Power Twist Plus Twist Link Belting 283A0000, belt A
    • RS-artikelnummer 679-729
    • Tillv. art.nr 283A0000
    1 rulle med 5 meter
    2 099,34 kr
    OPTIBELT 535 5M 15 Timing Belt, 107 Teeth, 535mm Length, 15mm Width
    • RS-artikelnummer 204-2892
    • Tillv. art.nr 535 5M 15
    Varje
    144,00 kr
    OPTIBELT 25 T5 / 225 Timing Belt, 45 Teeth, 225mm Length, 25mm Width
    • RS-artikelnummer 217-1245
    • Tillv. art.nr 25 T5 / 225
    Varje
    247,62 kr

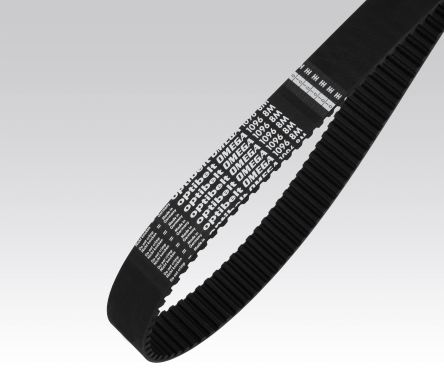

    OPTIBELT 300 5M 25 Timing Belt, 60 Teeth, 300mm Length, 25mm Width
    • RS-artikelnummer 217-1374
    • Tillv. art.nr 300 5M 25
    Varje
    152,03 kr
    Contitech HTD 276-3M-06 Timing Belt, 92 Teeth, 276mm Length, 6mm Width
    • RS-artikelnummer 182-1305
    • Tillv. art.nr HTD 276-3M-06
    Varje
    42,76 kr
    OPTIBELT 170 XL 037 Timing Belt, 85 Teeth, 431.8mm Length, 9.4mm Width
    • RS-artikelnummer 204-3182
    • Tillv. art.nr 170 XL 037
    Varje
    56,79 kr
    OPTIBELT 10 T10 / 350 Timing Belt, 35 Teeth, 350mm Length, 10mm Width
    • RS-artikelnummer 209-038
    • Tillv. art.nr 10 T10 / 350
    Varje
    140,90 kr
