    Belts & Pulleys

    We offer an extensive range of power transmission belts for any automation or industrial requirement. Find polyurethane belts, twist link, and timing belts as well as wedge and vee friction belts from top brands like Contitech. You can also browse a wide selection of RS Pro branded belts at competitive prices.

    The RS selection of pulleys is designed to perfectly compliment our range of power transmission belts. Within this section, you will find timing belt pulleys and wedge and vee belt pulleys - all RS Pro branded to help you shop for total quality at competitive prices.

    What are Power Transmission Belts?

    Power transmission belts help to drive the transmission by the transfer of power to different parts in the system. This system normally consists of a belt and at least two pulleys to transmit the motion needed, commonly used in the automotive industry.

    Types of Power Transmission Belts

    Power transmission belts come in various types and styles. Popular types include:

    V-belts - have tapered sides and a flat bottom with a trapezoidal cross-section. They work by using the friction between the belt and the pulley to transfer power and have a higher power transmission capacity than flat belts. V-belts are popular due to ease of installation, low cost and are available in a wide range of sizes.

    Synchronous belts - also known as timing belts, have a toothed profile and can be used as an alternative to chains and gears. They overcome belt slippage with teeth that engage with corresponding grooves in the pulley or sprocket boosting drive efficiency above a V-belt. They're used in high-powered transmission applications, such as water pumps, fuel injection pumps and camshafts. They are thin and flexible making them ideal for use where high speed or small pulleys are required. They are less noisy than chain drives and energy-efficient through the life of the belt.

    Flat belts - have a rectangular cross-section that provides a greater level of consistent friction between belts and pulleys. They have low creep and are efficient due to their low bending losses and energy-saving properties and are used in all areas of industrial areas using power transmission for their versatility.

    Belt Diagnostic Kits
    Belt Diagnostic Kits
    Belt Pulleys
    Belt Pulleys
    Drive Belt Gauges
    Drive Belt Gauges
    Laser Alignment Tools
    Laser Alignment Tools
    Link Belts
    Link Belts
    Poly V Belts
    Poly V Belts
    Profile & Round Belts
    Profile & Round Belts
    Timing Belts
    Timing Belts
    V & Wedge Belts
    V & Wedge Belts

    13099 Produkter som visas för Belts & Pulleys

    13 av 655
    OPTIBELT 12 T5 / 430 Timing Belt, 86 Teeth, 430mm Length, 12mm Width
    • RS-artikelnummer 208-899
    • Tillv. art.nr 12 T5 / 430
    Varje
    163,07 kr

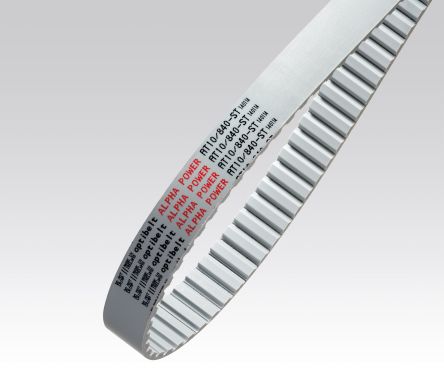

    OPTIBELT 16 T5 / 780 AP Timing Belt, 156 Teeth, 780mm Length, 16mm Width
    • RS-artikelnummer 176-098
    • Tillv. art.nr 16 T5 / 780 AP
    Varje
    331,97 kr
    OPTIBELT 10 T5 / 280 Timing Belt, 56 Teeth, 280mm Length, 10mm Width
    • RS-artikelnummer 216-9998
    • Tillv. art.nr 10 T5 / 280
    Varje
    138,23 kr
    OPTIBELT 50 T10 / 370 Timing Belt, 37 Teeth, 370mm Length, 50mm Width
    • RS-artikelnummer 217-1704
    • Tillv. art.nr 50 T10 / 370
    Varje
    571,60 kr

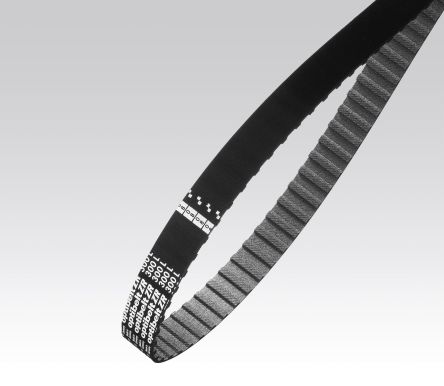

    OPTIBELT 150 XL 031 Timing Belt, 75 Teeth, 381mm Length, 7.87mm Width
    • RS-artikelnummer 217-0345
    • Tillv. art.nr 150 XL 031
    Varje
    46,72 kr
    RS PRO Timing Belt Pulley, Steel 28mm Belt Width x 8mm Pitch, 28 Tooth
    • RS-artikelnummer 183-287
    Varje
    193,09 kr
    OPTIBELT 325 5M 9 Timing Belt, 65 Teeth, 325mm Length, 9mm Width
    • RS-artikelnummer 204-2890
    • Tillv. art.nr 325 5M 9
    Varje
    69,34 kr
    OPTIBELT 925 5M 25 Timing Belt, 185 Teeth, 925mm Length, 25mm Width
    • RS-artikelnummer 175-746
    • Tillv. art.nr 925 5M 25
    Varje
    298,93 kr
    OPTIBELT 400 5M 15 Timing Belt, 80 Teeth, 400mm Length, 15mm Width
    • RS-artikelnummer 204-2880
    • Tillv. art.nr 400 5M 15
    Varje
    119,12 kr
    Contitech 187 L 050 Timing Belt, 50 Teeth, 476.25mm Length, 12.7mm Width
    • RS-artikelnummer 474-9664
    • Tillv. art.nr 187 L 050
    Varje
    65,38 kr
    OPTIBELT 322 XL 025 Timing Belt, 161 Teeth, 819.2mm Length, 6.35mm Width
    • RS-artikelnummer 177-818
    • Tillv. art.nr 322 XL 025
    Varje
    57,23 kr

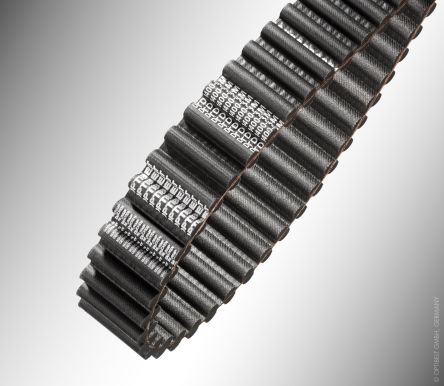

    OPTIBELT Double Sided Timing Belt, 75 Teeth, 600mm Length, 30mm Width
    • RS-artikelnummer 130-585
    • Tillv. art.nr 600 D8M 30
    Varje
    1 812,94 kr
    Contitech HTD 225-3M-06 Timing Belt, 75 Teeth, 225mm Length, 6mm Width
    • RS-artikelnummer 182-1302
    • Tillv. art.nr HTD 225-3M-06
    Varje
    40,38 kr
    OPTIBELT 1800 8M 20 Timing Belt, 225 Teeth, 1800mm Length, 20mm Width
    • RS-artikelnummer 217-0573
    • Tillv. art.nr 1800 8M 20
    Varje
    449,20 kr
    OPTIBELT Rubber RB Drive Belt, 962mm Length, 42.72mm Width
    • RS-artikelnummer 217-0162
    • Tillv. art.nr 12 PK 962 RB
    Varje
    756,89 kr
    Contitech 16 / T5 / 1500 SS Timing Belt, 300 Teeth, 1500mm Length, 16mm Width
    • RS-artikelnummer 474-6384
    • Tillv. art.nr 16 / T5 / 1500 SS
    Varje
    528,95 kr
    OPTIBELT 1890 14M 170 Timing Belt, 135 Teeth, 1890mm Length, 1mm Width
    • RS-artikelnummer 217-0586
    • Tillv. art.nr 1890 14M 170
    Varje
    8 039,55 kr
    OPTIBELT 6 T2,5 / 200 Timing Belt, 80 Teeth, 200mm Length, 6mm Width
    • RS-artikelnummer 209-723
    • Tillv. art.nr 6 T2,5 / 200
    Varje
    119,50 kr
    OPTIBELT Timing Belt, 115 Teeth, 1150mm Length, 16mm Width
    • RS-artikelnummer 179-652
    • Tillv. art.nr 16 AT10 / 1150 AP
    Varje
    625,41 kr
    OPTIBELT 896 8M 20 Timing Belt, 112 Teeth, 896mm Length, 20mm Width
    • RS-artikelnummer 176-339
    • Tillv. art.nr 896 8M 20
    Varje
    258,38 kr
