Solar connectors are used to connect solar panels to other panels, batteries and junction boxes. The most common type of solar connector is the MC4 connector, a standardised single pole connector that has built in strain relief and interlocks. These interlocks ensure a secure mating and protection against accidental release between plugs and sockets. As they are often used outside MC4 connectors are weather-proof, and are paired with cable that is double-insulated and UV resistant.
Branch Connectors are available to assist the connection of solar panels in parallel or series, for example linking multiple panels to a single battery for increased power.
The RS Range of solar connectors includes plugs, sockets and adapters suitable for applications from 15A to 69A applications.
Solar Connectors
Filter
| Beskrivning | Pris | Type | Gender | Cable CSA | Mounting Type | Termination Method | Keying | IP Rating | Current Rating | Voltage Rating | Plug/Socket | Thread Size | Maximum Operating Temperature | Minimum Operating Temperature | Series | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
Nytt
|
RS-artikelnummer
190-2003
Tillv. art.nr2270025-1
VarumärkeTE Connectivity
|
10 283,13 kr
1 Bag of 1000
Påse(ar)
|
Connector | Female | 4mm² | Cable Mount | Crimp | Plus | IP68 | 20 (UL) A, 40 (TUV) A | TUV) V dc, 1000 (UL | Socket | - | +85°C | -40°C | SOLARLOK PV4-S |
|
RS-artikelnummer
161-8595
Tillv. art.nr1740277-2
VarumärkeTE Connectivity
|
106,257 kr
Each (In a Box of 20)
Enheter
|
T-Branch | Male to Female | - | Through Hole | Solder | - | - | - | - | - | - | - | - | - |
|
RS-artikelnummer
188-2907
Tillv. art.nr1070197
VarumärkePhoenix Contact
|
97,32 kr
Each
Enheter
|
Contact Insert | Female | 1.5 → 6mm² | Cable Mount | Screw | - | - | 35A | 690 V ac | Socket | - | - | - | PRC 5-HEAD-FS6-1 |
|

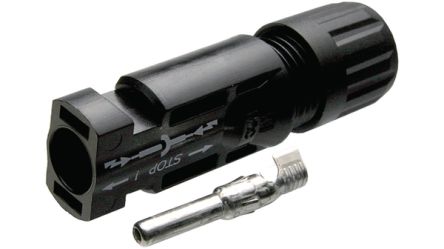

RS-artikelnummer
561-013
Tillv. art.nr32.0010P0001
VarumärkeStaubli
|
27,858 kr
Each (In a Pack of 5)
Enheter
|
Coupler | Female | 1.5 → 2.5mm² | Cable Mount | - | - | IP2x (Un Mated), IP67 (Mated) | 22A | 1 kV | - | - | +90°C | -40°C | - |
|
Nytt
|
RS-artikelnummer
190-2013
Tillv. art.nr5-2306315-1
VarumärkeTE Connectivity
|
43,194 kr
Each (In a Box of 72)
Enheter
|
Junction Box | - | - | - | - | Plus | - | - | - | - | - | - | - | SOLARLOK PV |
|
RS-artikelnummer
188-2903
Tillv. art.nr1065795
VarumärkePhoenix Contact
|
60,89 kr
Each
Enheter
|
Device Connector | - | - | Front Mount | - | - | - | - | 690 V ac | - | - | - | - | PRC FT25-0-HSG |
|
Nytt
|
RS-artikelnummer
190-2037
Tillv. art.nr1-2306314-2
VarumärkeTE Connectivity
|
66,14 kr
Each
Enheter
|
Junction Box | - | - | - | - | Minus | - | - | - | - | - | - | - | SOLARLOK PV |
|
RS-artikelnummer
696-2171
Tillv. art.nrPV-KST3I-100
VarumärkeStaubli
|
3 368,15 kr
1 Bag of 100
Påse(ar)
|
Coupler | Male | 2 → 5mm² | Cable Mount | - | - | IP2x (Un Mated), IP67 (Mated) | 22A | 1 kV | - | - | +90°C | -40°C | - |
|
RS-artikelnummer
711-7559
Tillv. art.nr1774674
VarumärkePhoenix Contact
|
28,54 kr
Each
Enheter
|
Connector | Female | 2.5 → 6mm² | Cable Mount | Spring Cage | - | IP65, IP68 | 40A | 1.1 kV | Plug | - | +85°C | -40°C | PV-CF-S 2.5-6 |
|
Nytt
|
RS-artikelnummer
193-1804
Tillv. art.nrH4CMC4DIS
VarumärkeAmphenol
|
21,238 kr
Each (In a Bag of 5)
Enheter
|
Solar Connector | Male | 4 mm², 12 AWG | Cable Mount | Quick Connect | - | IP68 | 20 (UL) A, 42 (TUV) A | TUV) V, 1500 (UL | Plug | - | +85°C | -40°C | H4 |
|
RS-artikelnummer
769-8708
Tillv. art.nr1789821
VarumärkePhoenix Contact
|
46,92 kr
Each
Enheter
|
Connector | Male | 2.5 → 6mm² | Cable Mount | Spring Cage | Plus | IP66, IP68 | 40A | 1.5 kV | Plug | - | +85°C | -40°C | PV-C1F-S 2.5-6 |
|
Nytt
|
RS-artikelnummer
190-2050
Tillv. art.nr5-2306315-2
VarumärkeTE Connectivity
|
64,52 kr
Each
Enheter
|
Junction Box | - | - | - | - | Minus | - | - | - | - | - | - | - | SOLARLOK PV |
|
RS-artikelnummer
794-7243
Tillv. art.nr32.0078P0001+32.0079P0001
VarumärkeStaubli
|
59,99 kr
1 Pair(s)
Par
|
Connector | Female, Male | 4 → 6mm² | Panel Mount | Crimp | - | IP2x (Un Mated), IP67 (Mated) | 30A | 1 kV dc | Socket | M12 | +90°C | -40°C | - |
|
RS-artikelnummer
175-0094
Tillv. art.nr32.0088P0001-UR
VarumärkeMulti Contact
|
24,12 kr
Each (In a Pack of 5)
Enheter
|
Coupler | Female | - | Cable Mount | Crimp | - | - | 53A | 1.5 kV dc | Socket | - | +85°C | -40°C | MC4-Evo2 |
|

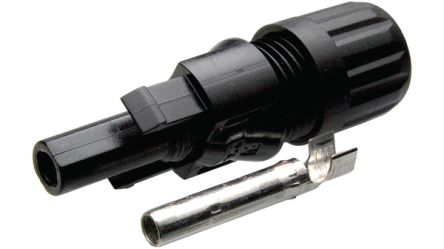

RS-artikelnummer
560-997
Tillv. art.nr32.0017P0001
VarumärkeStaubli
|
15,514 kr
Each (In a Pack of 5)
Enheter
|
Coupler | Male | 4 → 6mm² | Cable Mount | - | - | IP2x (Un Mated), IP67 (Mated) | 30A | 1 kV | - | - | +90°C | -40°C | - |
|
RS-artikelnummer
161-9373
Tillv. art.nr130244-1204
VarumärkeMolex
|
123,909 kr
Each (In a Bag of 70)
Enheter
|
Power | Male | 2.5mm² | Cable Mount | Crimp | Plus | IP67 | 15A | - | Plug | - | +80°C | -40°C | - |
|
RS-artikelnummer
794-8621
Tillv. art.nr93301-0201
VarumärkeMolex
|
33,79 kr
Each
Enheter
|
Housing | Male | 2.5 → 6mm² | Panel Mount | Crimp | - | IP2x (Un Mated), IP67 (Mated) | - | 1 kV | Plug | - | +85°C | -40°C | - |
|
RS-artikelnummer
794-7234
Tillv. art.nr32.0076P0001+32.0077P0001
VarumärkeStaubli
|
96,89 kr
1 Pair(s)
Par
|
Connector | Female, Male | 1.5 → 2.5mm² | Panel Mount | Crimp | - | IP2x (Un Mated), IP67 (Mated) | 17 A, 22.5 A | 1 kV dc | Socket | M12 | +90°C | -40°C | - |
|
RS-artikelnummer
188-2908
Tillv. art.nr1070199
VarumärkePhoenix Contact
|
97,32 kr
Each
Enheter
|
Contact Insert | Male | 1.5 → 6mm² | Cable Mount | Screw | - | - | 35A | 690 V ac | Plug | - | - | - | PRC 5-HEAD-MS6-2 |
|
Nytt
|
RS-artikelnummer
190-2029
Tillv. art.nr2270025-1
VarumärkeTE Connectivity
|
17,206 kr
Each (In a Pack of 5)
Enheter
|
Connector | Female | 4mm² | Cable Mount | Crimp | Plus | IP68 | 20 (UL) A, 40 (TUV) A | TUV) V dc, 1000 (UL | Socket | - | +85°C | -40°C | SOLARLOK PV4-S |
