Solar connectors are used to connect solar panels to other panels, batteries and junction boxes. The most common type of solar connector is the MC4 connector, a standardised single pole connector that has built in strain relief and interlocks. These interlocks ensure a secure mating and protection against accidental release between plugs and sockets. As they are often used outside MC4 connectors are weather-proof, and are paired with cable that is double-insulated and UV resistant.
Branch Connectors are available to assist the connection of solar panels in parallel or series, for example linking multiple panels to a single battery for increased power.
The RS Range of solar connectors includes plugs, sockets and adapters suitable for applications from 15A to 69A applications.
Solar Connectors
Filter
| Beskrivning | Pris | Type | Gender | Cable CSA | Mounting Type | Termination Method | Keying | IP Rating | Current Rating | Voltage Rating | Plug/Socket | Thread Size | Maximum Operating Temperature | Minimum Operating Temperature | Series | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
RS-artikelnummer
161-7952
Tillv. art.nr130244-1202
VarumärkeMolex
|
84,914 kr
Each (In a Bag of 70)
Enheter
|
Power | Male | 4 → 6mm² | Cable Mount | Crimp | Plus | IP67 | 30A | - | Plug | - | +80°C | -40°C | - |
|
RS-artikelnummer
789-3092
Tillv. art.nr130244-1203
VarumärkeMolex
|
97,062 kr
Each (In a Bag of 5)
Enheter
|
Power | Female | 2.5mm² | Cable Mount | Crimp | Minus | IP67 | 15A | - | Socket | - | +80°C | -40°C | - |
|
RS-artikelnummer
188-2916
Tillv. art.nr1621326
VarumärkePhoenix Contact
|
349,76 kr
Each
Enheter
|
Test Plug | Male | 1.5 → 6 mm², 4 → 6 mm² | Cable Mount | Screw | - | IP66, IP68, IP69K | 35A | 690 V | Plug | - | - | - | PRC 3-TC-FS6 8-21 |
|
Nytt
|
RS-artikelnummer
190-2007
Tillv. art.nr2308033-1
VarumärkeTE Connectivity
|
37,214 kr
Each (In a Box of 100)
Enheter
|
Connector | Female | 2.5 mm², 4 mm², 6 mm² | Cable Mount | - | Plus | - | - | - | Socket | - | - | - | SOLARLOK 2.0 |
|
RS-artikelnummer
175-0097
Tillv. art.nr32.0093P0001-UR
VarumärkeMulti Contact
|
18,48 kr
Each (In a Pack of 5)
Enheter
|
Coupler | Male | - | Cable Mount | Crimp | - | - | 69A | 1.5 kV dc | Plug | - | +85°C | -40°C | MC4-Evo2 |
|
RS-artikelnummer
172-2328
Tillv. art.nr32.0022P0001-UR + 32.0023P0001-UR
VarumärkeMulti Contact
|
74,90 kr
Each
Enheter
|
Panel Receptacle | Female, Male | 4 mm², 6 mm² | Panel Mount | Crimp | - | IP65, IP68 | 42 A, 47 A | 1.5 kV dc | Plug | - | +85°C | -40°C | - |
|
RS-artikelnummer
175-0096
Tillv. art.nr32.0092P0001-UR
VarumärkeMulti Contact
|
24,12 kr
Each (In a Pack of 5)
Enheter
|
Coupler | Female | - | Cable Mount | Crimp | - | - | 69A | 1.5 kV dc | Socket | - | +85°C | -40°C | MC4-Evo2 |
|
Nytt
|
RS-artikelnummer
193-1798
Tillv. art.nrH4CMC4DI
VarumärkeAmphenol
|
23,524 kr
Each (In a Bag of 5)
Enheter
|
Solar Connector | Male | 4 mm², 12 AWG | Cable Mount | Quick Connect | - | IP68 | 20 (UL) A, 42 (TUV) A | TUV) V, 1500 (UL | Plug | - | +85°C | -40°C | H4 |
|
Nytt
|
RS-artikelnummer
193-1799
Tillv. art.nrH4CMC6DI
VarumärkeAmphenol
|
14 891,05 kr
1 Box of 1000
Låda(or)
|
Solar Connector | Male | 6 mm², 10 AWG | Cable Mount | Quick Connect | - | IP68 | 30 (UL) A, 53 (TUV) A | TUV) V, 1500 (UL | Plug | - | +85°C | -40°C | H4 |
|
Nytt
|
RS-artikelnummer
190-2011
Tillv. art.nr5-2306315-2
VarumärkeTE Connectivity
|
43,194 kr
Each (In a Box of 72)
Enheter
|
Junction Box | - | - | - | - | Minus | - | - | - | - | - | - | - | SOLARLOK PV |
|
Nytt
|
RS-artikelnummer
190-2033
Tillv. art.nr2315176-1
VarumärkeTE Connectivity
|
53,50 kr
Each
Enheter
|
Connector | Male | 2.5 mm², 4 mm², 6 mm² | Cable Mount | - | Minus | - | - | - | Plug | - | - | - | SOLARLOK 2.0 |
|
Nytt
|
RS-artikelnummer
193-1800
Tillv. art.nrH4CMC6DI
VarumärkeAmphenol
|
23,524 kr
Each (In a Bag of 5)
Enheter
|
Solar Connector | Male | 6 mm², 10 AWG | Cable Mount | Quick Connect | - | IP68 | 30 (UL) A, 53 (TUV) A | TUV) V, 1500 (UL | Plug | - | +85°C | -40°C | H4 |
|
RS-artikelnummer
188-2902
Tillv. art.nr1017635
VarumärkePhoenix Contact
|
163,59 kr
Each
Enheter
|
Circular Connector | Female | 1.5 → 6 mm², 4 → 6 mm² | Front Mount | Screw | - | IP66, IP68, IP69K | 35A | 690 V ac | Socket | - | - | - | PRC 3-FC-FS6 8-21 HR |
|
Nytt
|
RS-artikelnummer
193-1803
Tillv. art.nrH4CMC4DIS
VarumärkeAmphenol
|
13 443,34 kr
1 Box of 1000
Låda(or)
|
Solar Connector | Male | 4 mm², 12 AWG | Cable Mount | Quick Connect | - | IP68 | 20 (UL) A, 42 (TUV) A | TUV) V, 1500 (UL | Plug | - | +85°C | -40°C | H4 |
|
RS-artikelnummer
175-0092
Tillv. art.nr32.0087P0001-UR
VarumärkeMulti Contact
|
18,48 kr
Each (In a Pack of 5)
Enheter
|
Coupler | Male | - | Cable Mount | Crimp | - | - | 45A | 1.5 kV dc | Plug | - | +85°C | -40°C | MC4-Evo2 |
|
RS-artikelnummer
698-7243
Tillv. art.nr1394462-4
VarumärkeTE Connectivity
|
40,629 kr
Each (In a Pack of 10)
Enheter
|
Coupler | Female | 4mm² | Cable Mount | - | Minus | IP67 | 25A | 1 kV dc | - | - | +150°C | -40°C | - |
|
Nytt
|
RS-artikelnummer
193-1801
Tillv. art.nrH4CFC4DIS
VarumärkeAmphenol
|
16 338,75 kr
1 Box of 1000
Låda(or)
|
Solar Connector | Female | 4 mm², 12 AWG | Cable Mount | Quick Connect | - | IP68 | 20 (UL) A, 42 (TUV) A | TUV) V, 1500 (UL | Socket | - | +85°C | -40°C | H4 |
|
RS-artikelnummer
136-8612
Tillv. art.nr1SNV420862R0000
VarumärkeABB
|
29,622 kr
Each (In a Bag of 5)
Enheter
|
Plug Connector | Female | 4 → 6mm² | Cable Mount | Quick Connect | Plus | IP65, IP68 | 45 A, 53 A | 1.5 kV | Plug | - | +115°C | - | MC4-Evo2 |
|

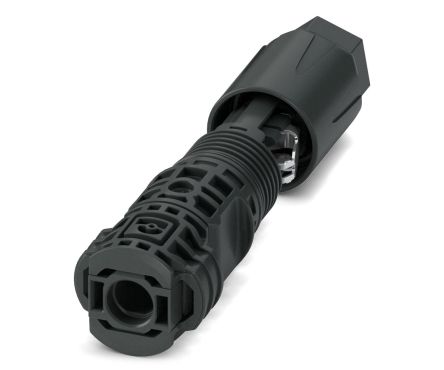

RS-artikelnummer
769-8714
Tillv. art.nr1790797
VarumärkePhoenix Contact
|
52,73 kr
Each
Enheter
|
Connector | Female | 6 → 16mm² | Cable Mount | Spring Cage | Minus | IP66, IP68 | 65A | 1.5 kV | Socket | - | +85°C | -40°C | PV-CM-S 6-16 |
|
Nytt
|
RS-artikelnummer
193-5972
Tillv. art.nr1070198
VarumärkePhoenix Contact
|
69,90 kr
Each
Enheter
|
Contact Insert | - | - | - | - | - | - | - | - | - | - | - | - | PRC 3-HEAD |
