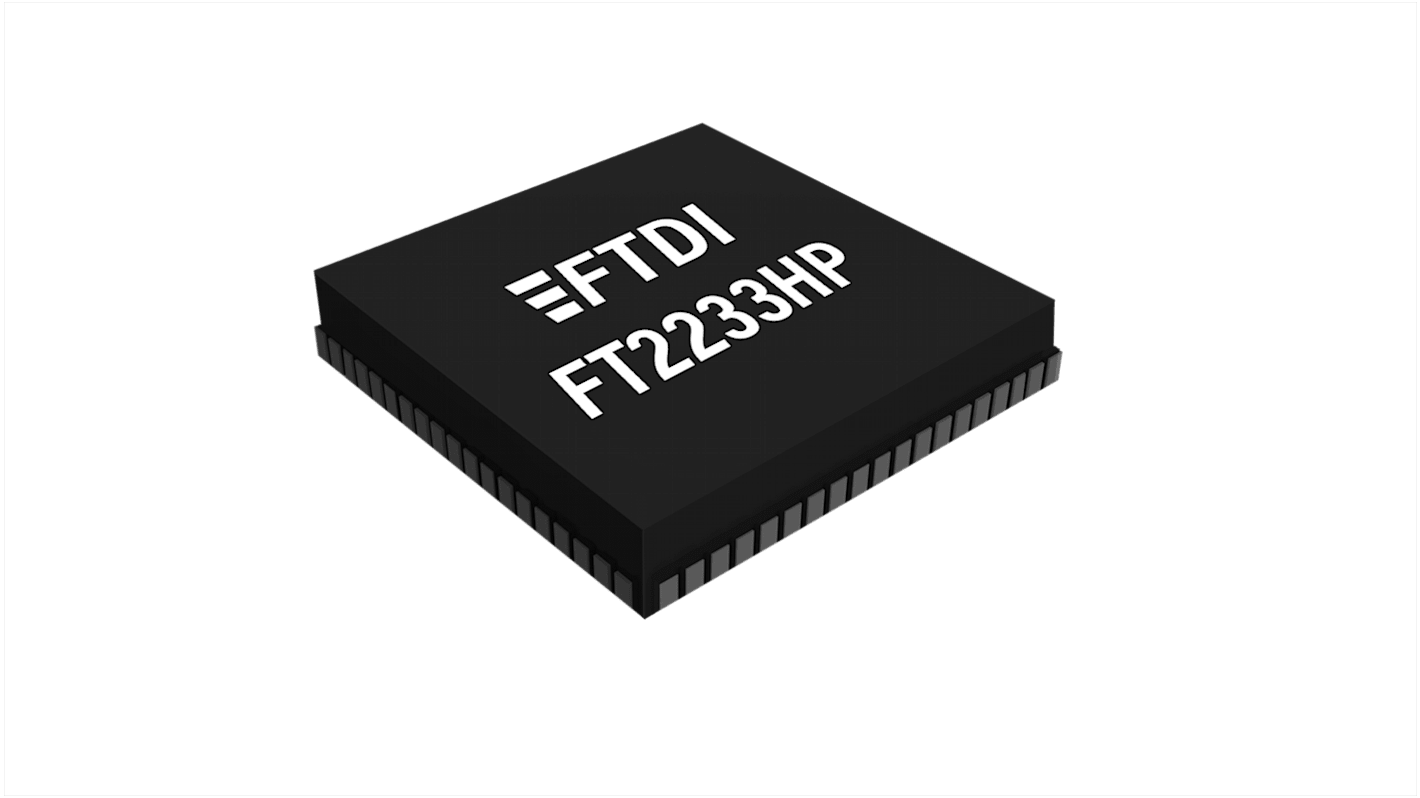

FTDI Chip FT2233HPQ-TRAY, Controller IC, 2-Channel 12 Mbps, 1.32 V, USB 2.0, 3.3 V, 76-Pin QFN

RS-artikelnummer:: 228-3121
Tillv. art.nr:: FT2233HPQ-TRAY
Tillverkare / varumärke:: FTDI Chip

FTDI Chip FT2233HPQ-TRAY, Controller IC, 2-Channel 12 Mbps, 1.32 V, USB 2.0, 3.3 V, 76-Pin QFN

Mängdrabatt möjlig

Antal (1 enhet)*

70,37 kr

(exkl. moms)

87,96 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

970 enhet(er) är redo att levereras

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 - 9	70,37 kr
10 - 99	59,70 kr
100 +	57,79 kr

*vägledande pris

RS-artikelnummer:: 228-3121
Tillv. art.nr:: FT2233HPQ-TRAY
Tillverkare / varumärke:: FTDI Chip

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	FTDI Chip
	Maximum Data Rate	12Mbps
	Number of Transceivers	2
	Product Type	Controller IC
	USB Specification	USB Type C
	Sub Type	Controller
	Power Supply Type	Single
	ESD Protection	Yes
	Maximum Supply Voltage	1.32V
	Minimum Supply Voltage	3.3V
	Mount Type	Surface
	Package Type	QFN
	Pin Count	76
	Supported Protocols	USB 2.0
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Standards/Approvals	RoHS
	Height	1mm
	Width	9.1 mm
	Series	FT2233HP
	Length	9.1mm
	Automotive Standard	No
	Supply Current	0.83mA

	Välj alla
	Brand FTDI Chip
	Maximum Data Rate 12Mbps
	Number of Transceivers 2
	Product Type Controller IC
	USB Specification USB Type C
	Sub Type Controller
	Power Supply Type Single
	ESD Protection Yes
	Maximum Supply Voltage 1.32V
	Minimum Supply Voltage 3.3V
	Mount Type Surface
	Package Type QFN
	Pin Count 76
	Supported Protocols USB 2.0
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Standards/Approvals RoHS
	Height 1mm
	Width 9.1 mm
	Series FT2233HP
	Length 9.1mm
	Automotive Standard No
	Supply Current 0.83mA

The FTDI Chip FT2233HP/FT2232HP is a Hi-Speed USB device with a Type-C/PD 3.0 controller that fully supports the latest USB Type-C and Power Delivery (PD) standards enabling support for power negotiation with the ability to sink or source current to a USB host device. The USB bridge function delivers 2 independent channels compatible with the FT2232H – Dual Hi-speed USB to multipurpose UART/MPSSE solution.

Supports Power Delivery (PD) Specification 3.0.

2 x USB PD 3.0 Port Support. Port 1 supports Dual Role Swap Function while Port 2 supports sink mode with charging function through to Port 1.

Supports 5V3A, 9V3A, 12V3A, 15V3A, 20V3A and more PDOs as sink or source.

Type-C/PD Physical Layer Protocol.

PD policy engine using 32-bit RISC controller with 8kB data RAM and 48kB code ROM.

PD mode configuration through external EEPROM.

Options to use external MCU controlling PD policy through I2C interface
