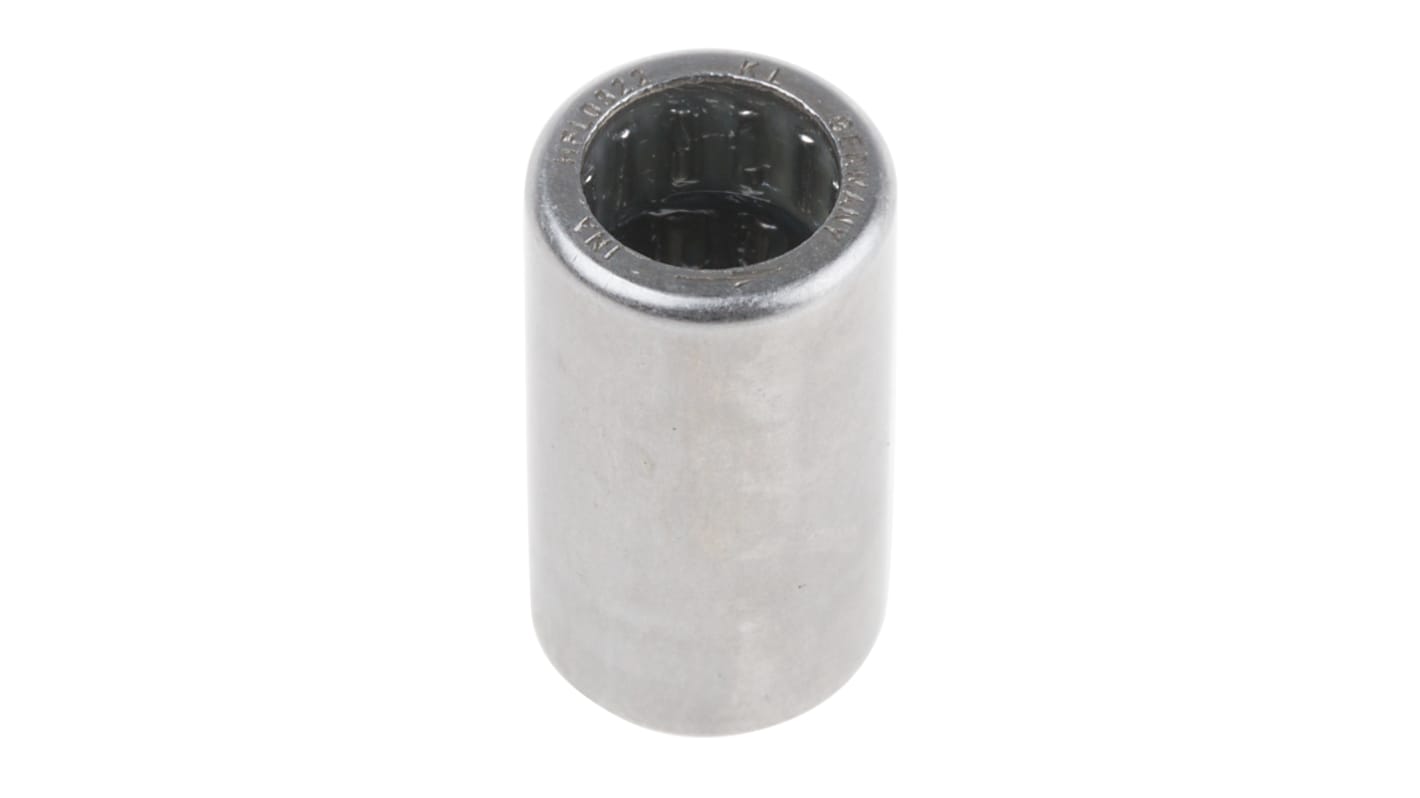

INA HFL0822-L564 Sprag Clutch Bearing 8mm I.D., 12mm O.D., 22mm Race Width

This sprag clutch bearing is a crucial component designed to provide efficient torque transfer in various mechanical systems. With an inside diameter of 8mm and an outside diameter of 12mm, this compact bearing excels in applications requiring high torque and limited space. The bearing features a race width of 22mm and impressive loading capacities, reinforcing its suitability for demanding environments.

• High torque rating ensures reliable performance in usage
• Static load rating of 3950 N enhances its durability
• Compact design ideal for miniature use
• Effective torque transfer capability improves machine efficiency
• Low friction operation reduces wear and increases longevity

• Used in automation requiring precise movements
• Ideal for electrical and electronic device assemblies
• Utilised in mechanical systems where space is constrained
• Effective in equipment that necessitates reliable clutch functionality
• Suitable for various industrial machinery requiring robust support

The dynamic load rating of 3650 N indicates the bearing's capacity to handle continuous stress during operation, ensuring consistency and reliability across various mechanical systems. This rating is essential for preventing premature failure in high-load scenarios.

The static load rating of 3950 N signifies the maximum load the bearing can withstand while stationary. This is crucial for applications where heavy loads must be supported without movement, ensuring stability and integrity in the design.

When integrating, one should evaluate the housing dimensions, load requirements, and operating conditions to ensure compatibility with other components. It is essential to ensure that the specified torque and load ratings align with the application’s demands for optimal performance.
