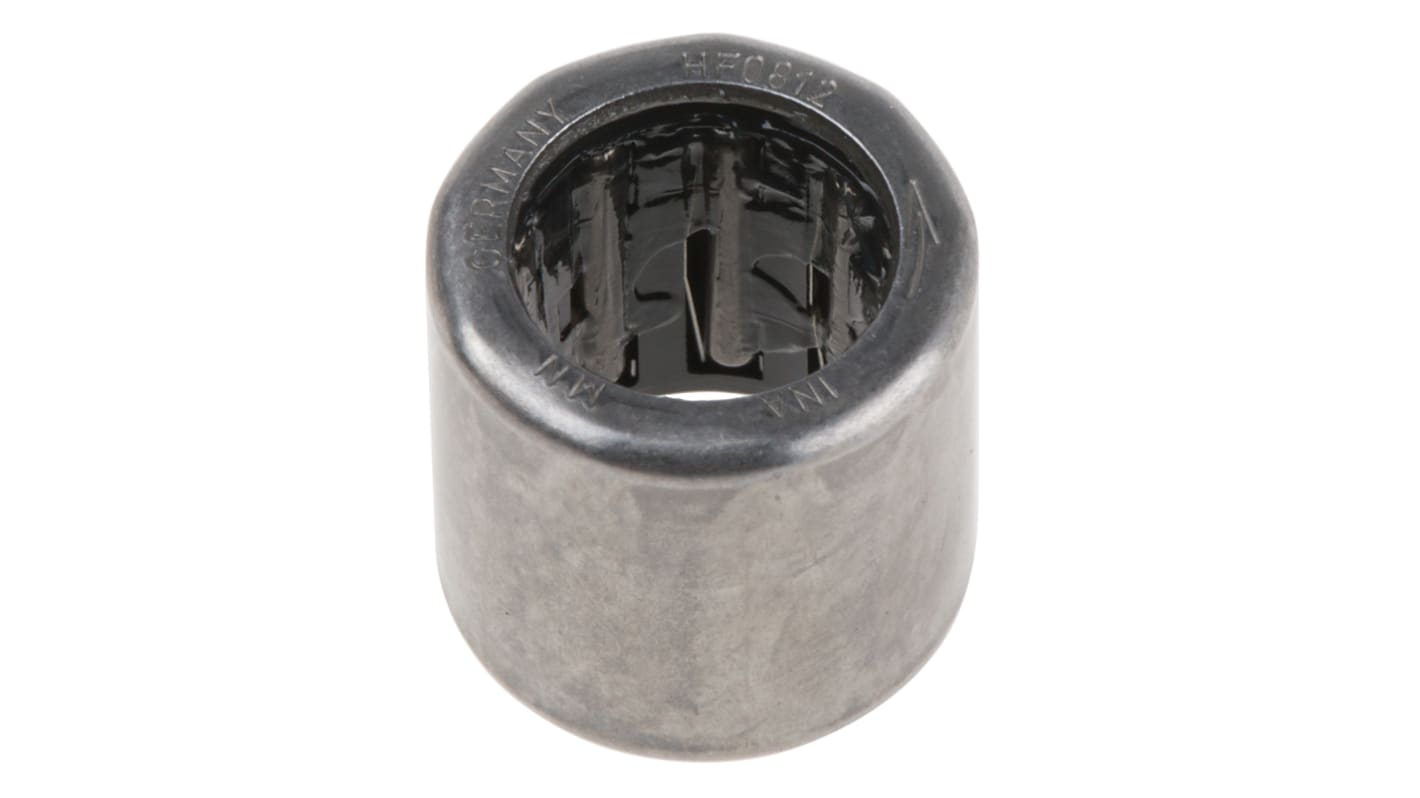

INA HF0812-L564 Sprag Clutch Bearing 8mm I.D., 12mm O.D., 12mm Race Width

RS-artikelnummer:: 137-1784
Tillv. art.nr:: HF0812-L564
Tillverkare / varumärke:: INA

INA HF0812-L564 Sprag Clutch Bearing 8mm I.D., 12mm O.D., 12mm Race Width

Se kategorien

Mängdrabatt möjlig

Price Varje*

143,14 kr

(exkl. moms)

178,92 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

38 enhet(er) är redo att levereras
Plus 10 enhet(er) är redo att levereras från en annan plats

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 - 4	143,14 kr
5 - 9	137,20 kr
10 - 24	134,62 kr
25 +	131,71 kr

*vägledande pris

RS-artikelnummer:: 137-1784
Tillv. art.nr:: HF0812-L564
Tillverkare / varumärke:: INA

Datasheet

Drawn Cup Roller Clutches

INA from Schaeffler drawn cup roller clutches are one-way clutches comprising thin‑walled, drawn outer rings with a series of ramps on the inside diameter. There are also plastic cages, pressure springs and needle rollers. They can transmit high torques in one direction and are compact in a radial direction.

Drawn cup roller clutches give precise indexing, since the individual spring loading of the needle rollers ensures continuous contact between the shaft, needle rollers and ramps. They allow high indexing frequencies due to their low mass and the resulting low moment of inertia of the clamping elements. They also have a low overrunning frictional torque.

Features and Benefits

• Lower operating costs

• Reduced maintenance due to improved lubrication

• Lower heat generation

• Less noise

• Roller clutches, HF series, do not have a bearing arrangement and can only transmit torques

• Roller clutches, HFL series, have an integral plain or rolling bearing arrangement and can support torques and radial forces.

Product Application Information

Drawn cup roller clutches can be used in various applications such as indexing clutches, back-stopping clutches and overrunning clutches. In these cases, the drawn cup roller clutch performs an overrunning or locking function.

Suffixes

KF - Plastic pressure springs

Schaeffler Series HF Sprag Clutch Bearing, 8mm Inside Diameter, 12mm Outside Diameter - HF0812-L564

This sprag clutch bearing is a compact and efficient mechanical component designed for various applications requiring precise movement control. With an inside diameter of 8mm and an outside diameter of 12mm, it is expertly engineered for high performance in demanding environments. This unique bearing can handle substantial torque and high overrunning speeds of up to 17,000 rpm, making it ideal for automation and machinery.

Features & Benefits

• Compact design optimises space in assembly requirements
• High torque rating of 3.15 Nm supports heavy loads
• Suitable for continuous use in demanding environments
• Enhances overall system performance and reliability

Applications

• Used for industrial machinery requiring precise rotational control
• Ideal for with automatic reset mechanisms
• Suitable for power transmission systems in automation devices
• Recommended for various mechanical systems needing robust support

What is the maximum torque capacity of this component?

The bearing supports a maximum torque capacity of 3.15 Nm, allowing it to manage substantial loads efficiently.

How does the design of this bearing enhance its performance?

The compact design reduces the overall weight while maintaining strength, facilitating easier integration into automated systems and machinery.

Can this bearing handle fluctuating speeds?

Yes, it is engineered to operate effectively at high speeds, with a maximum overrunning speed reaching up to 17,000 rpm, ensuring reliability in dynamic conditions.

In which specific industries is this bearing commonly used?

It is widely used in automation, electronics, and mechanical sectors, particularly in setups that require precise movement and control.

What advantages does the high torque rating provide?

A higher torque rating enhances operational efficiency, allowing for better power transmission in heavy-duty applications and improving overall performance and lifespan.
