RS PRO Solid State Relay, 5 A Load, DIN Rail Mount, 30 V Load, 30 V Control

Se alla Solid State Relays
Mängdrabatt möjlig

Antal (1 förpackning med 5 enheter)*

1 744,94 kr

(exkl. moms)

2 181,175 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 115 enhet(er) är redo att levereras
  • Plus 20 enhet(er) är redo att levereras från en annan plats
  • Dessutom levereras 50 enhet(er) från den 08 januari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
Per förpackning*
5 - 20348,988 kr1 744,94 kr
25 - 45338,172 kr1 690,86 kr
50 +323,836 kr1 619,18 kr

*vägledande pris

RS-artikelnummer:
888-6934
Tillverkare / varumärke:
RS PRO
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

RS PRO

Maximum Load Current

5 A

Mounting Type

DIN Rail

Maximum Load Voltage

30 V

Minimum Load Voltage

10 V

Minimum Control Voltage

11 V

Maximum Control Voltage

30 V

Switching Type

DC

Control Voltage Range

11 → 30 V

Minimum Load Current

1 mA

Terminal Type

Push In

Contact Configuration

SPST

Output Device

MOSFET

Load Voltage Range

10 → 30V

Dimensions

6.2 x 73 x 93mm

Operating Temperature Range

-25 → +60°C

Length

6.2mm

Off State Leakage Current

1 mA

Depth

73mm

Height

93mm

Special Features

Green LED Indicator, Suppressor Diode

Standards Met

CSA, GL, UL

COO (Country of Origin):
DE

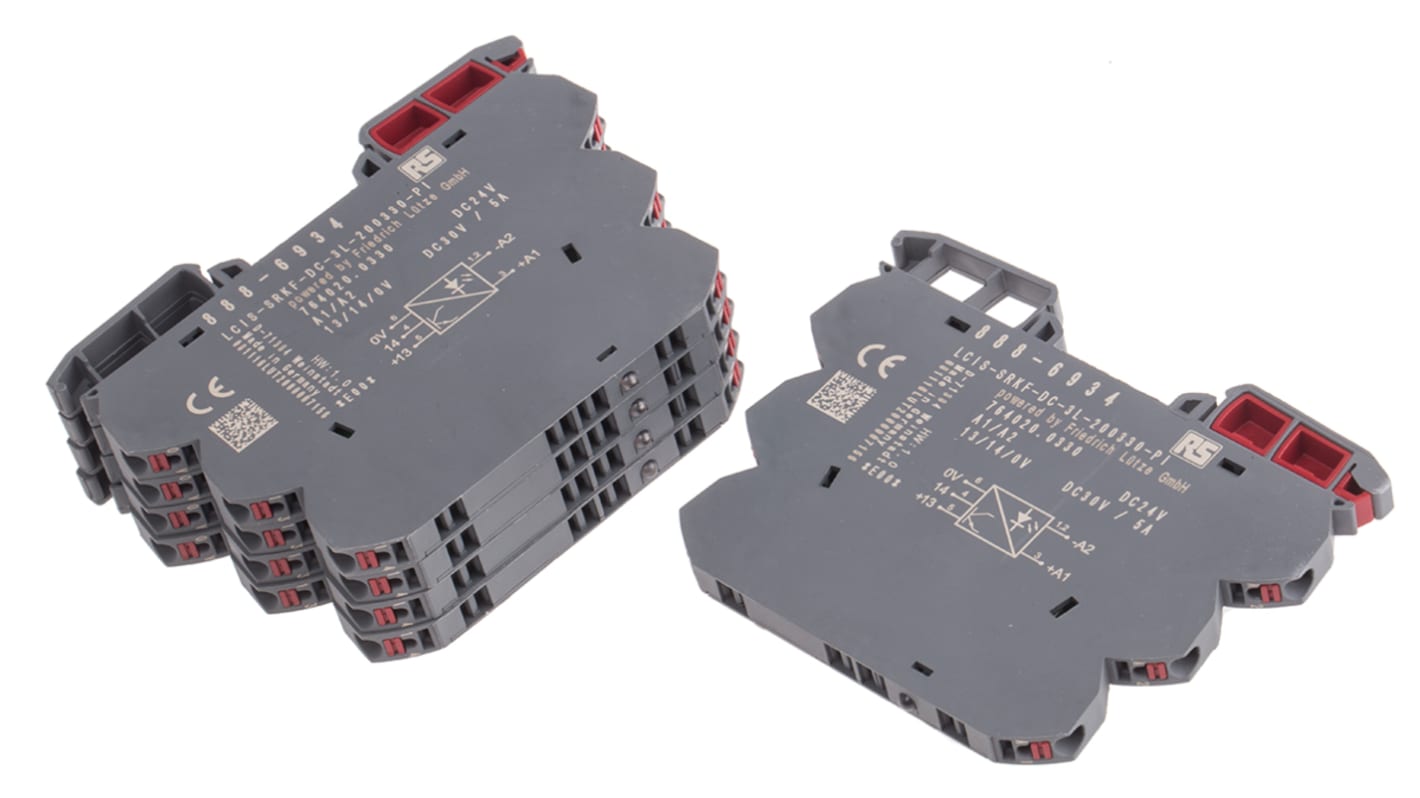

RS PRO 5 A SPNO Solid State Relay, DC, DIN Rail, MOSFET, 30 V Maximum Load


This RS PRO solid state relay opens or closes the contacts between different circuits and establishes either signal flows or interruptions. It ensures the effective operation of instrumentation and electronic applications.
The unit's compact and thin design makes for easy installation in narrow and limited spaces. Push-in terminals secure contact wires so they won't come loose and interrupt signal transmissions when exposed to bumps or vibrations. You can use this unit for a wide range of applications in industrial settings.

Features and Benefits


• SPNO (single pole normally open) contact configuration
• Control voltage range of 11 to 30 V
• Dimensions of 6.2 (length) x 73 (depth) x 93 mm (height)
• Load voltage range of 10 to 30 V
• Maximum control voltage of 30 V
• Maximum load current of 5 A
• Maximum load voltage of 30 V
• Minimum control voltage of 11 V
• Minimum load current of 1 mA
• Minimum load voltage of 10 V
• DIN rail mounting type
• Off state leakage current of 1 mA
• Operating temperature range of -25 to +60°C
• MOSFET (metal-oxide-semiconductor field-effect transistor) output device
• Green LED indicator and suppressor diode special features
• Canadian Standards Association (CSA), GL (Germanischer Lloyd) and UL (Underwriters' Laboratories) standards met
• DC switching type
• Push-in terminal type
