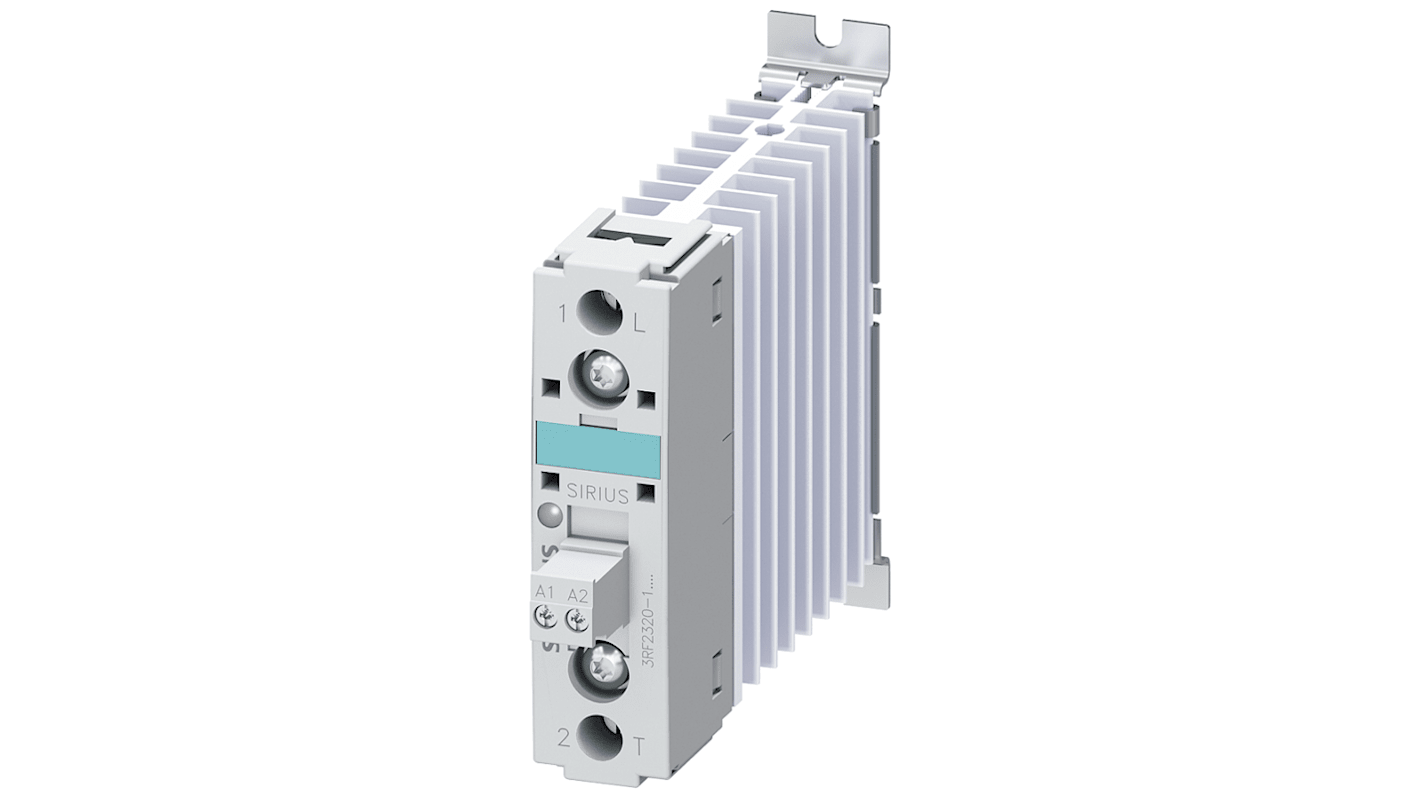

Siemens 3RF2 Series Solid State Relay, 20 A Load, DIN Rail Mount, 600 V Load, 30 V Control

Se alla Solid State Relays

Antal (1 enhet)*

1 142,51 kr

(exkl. moms)

1 428,14 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 13 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +1 142,51 kr

*vägledande pris

RS-artikelnummer:
203-2154
Distrelec artikelnummer:
137-46-176
Tillv. art.nr:
3RF2320-1AA45
Tillverkare / varumärke:
Siemens
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Siemens

Maximum Load Current

20 A

Mounting Type

DIN Rail

Maximum Load Voltage

600 V

Minimum Load Voltage

48 V

Minimum Control Voltage

4 V

Maximum Control Voltage

30 V

Switching Type

Protective

Control Voltage Range

4 → 30 V

Range

SIRIUS 3RF

Minimum Load Current

5 A

Number of Poles

1

Terminal Type

Screw

Contact Configuration

SPST

Output Device

Mosfet

Relay Type

Solid State Relay

Series

3RF2

Dimensions

95 x 22.5 x 120mm

Height

95mm

Length

22.5mm

Minimum Operating Temperature

-25°C

Maximum Operating Temperature

+60°C

Operating Temperature Range

-25 → +60°C

Depth

120mm

Standards Met

EAC

Special Features

Short-Circuit Protection

COO (Country of Origin):
DE

Siemens Solid State Relay, Zero-Point Switching Function, 1200V Blocking Voltage - SIRIUS Series - 3RF2320-1AA45


Power up your heavy-duty application with this solid state relay from Siemens. It controls voltages between 48 and 600V, making it ideal for ramping motors or lighting systems up and down with ease. Unlike electromechanical alternatives, it has no moving parts, so doesn't give in to wear and tear. To prevent equipment damage, it shrugs off surges up to 600A. The high current and voltage ratings mean this component is a good fit for agricultural or transportation applications.

Features & Benefits


• Snaps directly onto 35mm DIN rails for easy mounting
• Screw terminals speed up the wiring process and achieve a solid connection
• Compact dimension of 22.5 (W) x 123.5 (L) x 100mm (H) save space in busy setups
• IP20 rating means it's safe to touch during installation and maintenance

What accessories are available for this SSR?


There are several accessories available to customise your setup. By popping on a relay cover (203-2101), you can safeguard the existing settings. A plug-in module (469-3167) lets you add I/O devices or a current-monitoring relay (203-2074) to keep a close eye on your system.
