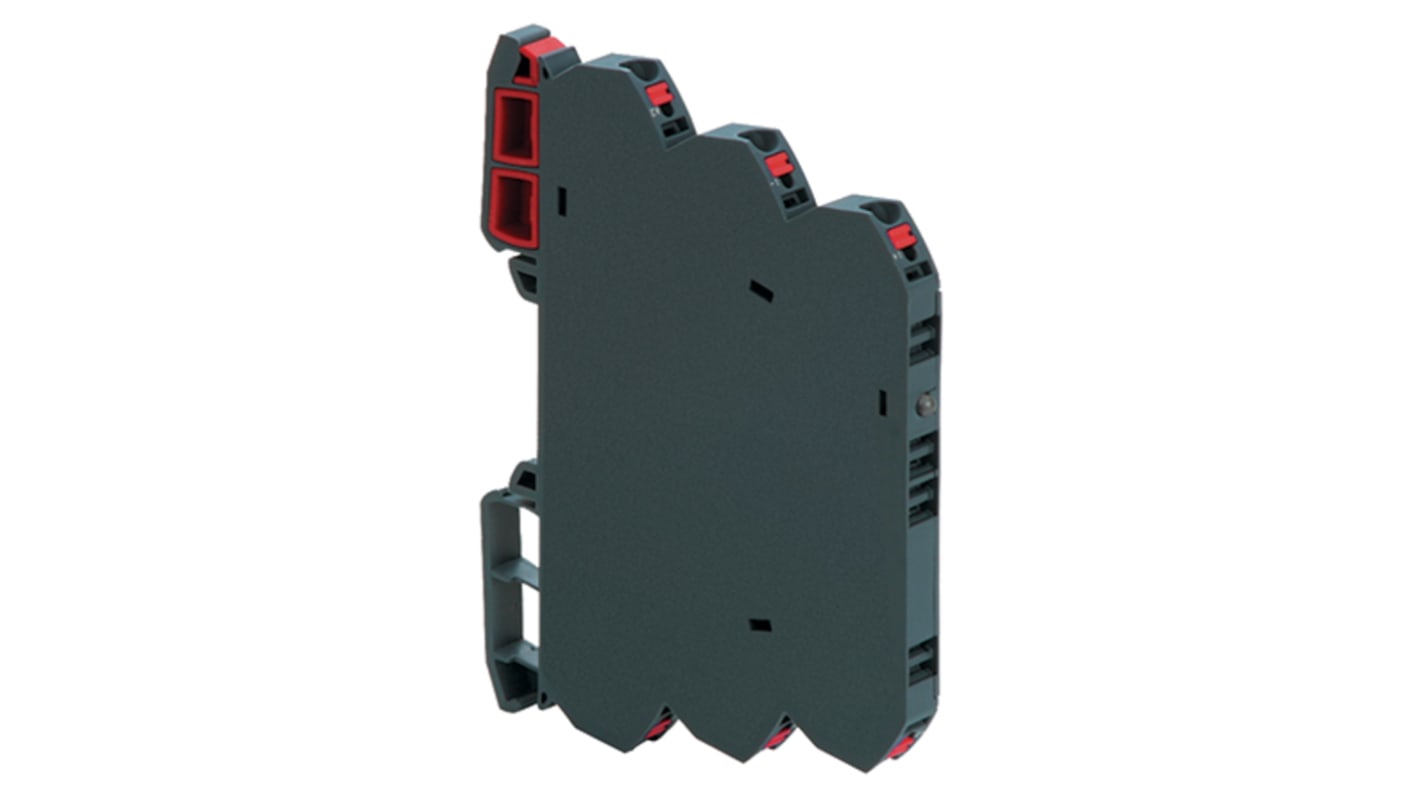

RS PRO Solid State Relay, 3 A Load, DIN Rail Mount, 30 V Load, 230 V Control
- RS-artikelnummer:
- 888-6938
- Tillverkare / varumärke:
- RS PRO
70 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 5)
327,842 kr
(exkl. moms)
409,802 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 5 - 20 | 327,842 kr | 1 639,21 kr |
| 25 - 45 | 314,402 kr | 1 572,01 kr |
| 50 + | 307,504 kr | 1 537,52 kr |
- RS-artikelnummer:
- 888-6938
- Tillverkare / varumärke:
- RS PRO
Lagstiftning och ursprungsland
- COO (Country of Origin):
- DE
Produktdetaljer
Push In Solid State Relays 6.2mm
MosFet Interface Solid State Push In Relays – Covering a wide range of applications offering extremely accurate processing, especially for coupling signals and for switching loads of up to 250 V/16 A at temperatures ranging from -40°C to +75°C.
A compact width of 6.2mm which is excellent for narrow applications. Also available with spring loaded connections for areas with strong vibration.
A compact width of 6.2mm which is excellent for narrow applications. Also available with spring loaded connections for areas with strong vibration.
Every push in has inspection openings with a diameter of 2mm guaranteeing secure signal tracking.
Semiconductor, 2 conductor technology
High switching frequencies
Low control power
Wear and bounce free switching
Vibration and impact resistant
Long service life
Operating Temp -25 °C to -60 °C
Dimensions – 6.2 x 93 x 73 mm
LED Indicator
LED Indicator
Semiconductor, 2 conductor technology
High switching frequencies
Low control power
Wear and bounce free switching
Vibration and impact resistant
Long service life
Operating Temp -25 °C to -60 °C
Dimensions – 6.2 x 93 x 73 mm
LED Indicator
LED Indicator
Approvals
UL, CSA, GL
Specifikationer
Attribute | Value |
|---|---|
| Maximum Load Current | 3 A |
| Mounting Type | DIN Rail |
| Maximum Load Voltage | 30 V |
| Minimum Load Voltage | 10 V |
| Maximum Control Voltage | 230 V |
| Minimum Control Voltage | 110 V |
| Switching Type | DC |
| Control Voltage Range | 110 → 230 V |
| Minimum Load Current | 1 mA |
| Contact Configuration | SPST |
| Terminal Type | Push In |
| Output Device | MOSFET |
| Load Voltage Range | 10 → 30V |
| Dimensions | 6.2 x 73 x 93mm |
| Height | 93mm |
| Standards Met | CSA, GL, UL |
| Length | 6.2mm |
| Depth | 73mm |
| Special Features | Green LED Indicator, Varistor |
| Operating Temperature Range | -25 → +60°C |
| Off State Leakage Current | <100 μA |
