Finder 34 Series Solid State Relay, 0.1 A Load, PCB Mount, 48 V dc Load, 30 V Control

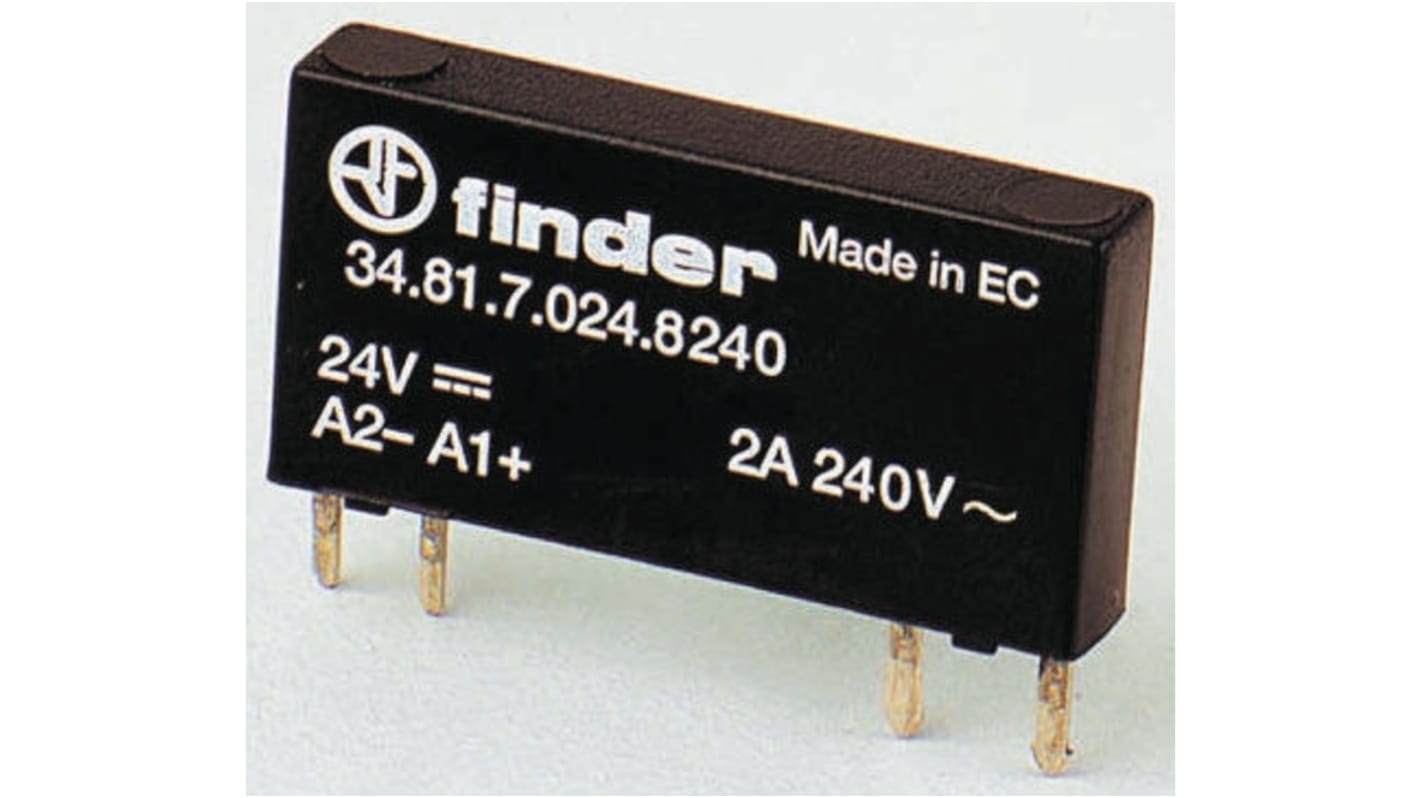

Denna bild representerar endast produktgruppen

Se alla Solid State Relays
Mängdrabatt möjlig

Antal (1 enhet)*

236,32 kr

(exkl. moms)

295,40 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 39 enhet(er) är redo att levereras från en annan plats
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 - 9236,32 kr
10 - 24217,39 kr
25 - 49207,76 kr
50 +200,59 kr

*vägledande pris

RS-artikelnummer:
457-4454
Distrelec artikelnummer:
137-44-462
Tillv. art.nr:
34.81.7.024.7048
Tillverkare / varumärke:
Finder
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

Finder

Maximum Load Current

0.1 A

Mounting Type

PCB Mount

Maximum Load Voltage

48 V dc

Minimum Load Voltage

1.5 V dc

Minimum Control Voltage

16 V

Maximum Control Voltage

30 V

Switching Type

DC

Control Voltage Range

16 → 30 V

Minimum Load Current

0.05 mA

Number of Poles

1

Terminal Type

PCB Pin

Contact Configuration

SPST

Package Style

SIP4

Relay Type

Solid State Relay

Series

34

Load Voltage Range

1.5 → 48V dc

Maximum Turn On Time

0.03 ms

Dimensions

28 x 15 x 5mm

Depth

5mm

Standards Met

cURus, EAC

Height

15mm

Length

28mm

Off State Leakage Current

0.001 mA

Operating Temperature Range

-20 → +70°C

Maximum Operating Temperature

+70°C

Minimum Operating Temperature

-20°C

COO (Country of Origin):
IT

Finder Series 34 Solid State Relay, 0.1A Maximum Load Current, 48V DC Maximum Load Voltage - 34.81.7.024.7048


This solid state relay is designed for PCB mounting, offering reliable switching capabilities for low voltage applications. With dimensions of 28 x 15 x 5mm, it features a compact SIP4 package style, making it suitable for space-constrained environments. This device operates efficiently within a broad control voltage range of 16 to 30V and can handle a maximum load voltage of up to 48V DC. It is an ideal component for automation and electronic projects.

Features & Benefits


• Capable of switching 0.1 A at 48V DC for efficient performance
• Offers silent, high-speed switching with a long operational life
• PCB pin terminal type ensures easy integration into circuit boards
• Designed to operate in temperatures ranging from -20°C to +70°C
• Complies with cURus and EAC standards for quality assurance
• Minimal off-state leakage current enhances energy efficiency

Applications


• Ideal for automation systems requiring precise control
• Used with sensitive DC load circuits for reliable operation
• Suitable for electrical panel employing PCB mounting
• Effective in mechanical systems needing efficient low voltage switching

What is the maximum load voltage and current that this relay can handle?


The relay can accommodate a maximum load voltage of 48V DC and can handle a maximum load current of 0.1 A.

How does this relay maintain energy efficiency during operation?


It features minimal off-state leakage current of just 0.001 mA, which helps to conserve energy when the device is not actively switching.

What are the compatibility features of this relay?


It can be mounted directly onto a PCB or via compatible sockets, providing flexibility in installation methods.

What is the significance of its switching type?


Being a DC relay, it is optimised for switching direct current applications, ensuring reliability and performance in low voltage scenarios.

Approvals

UL
