Produktdetaljer

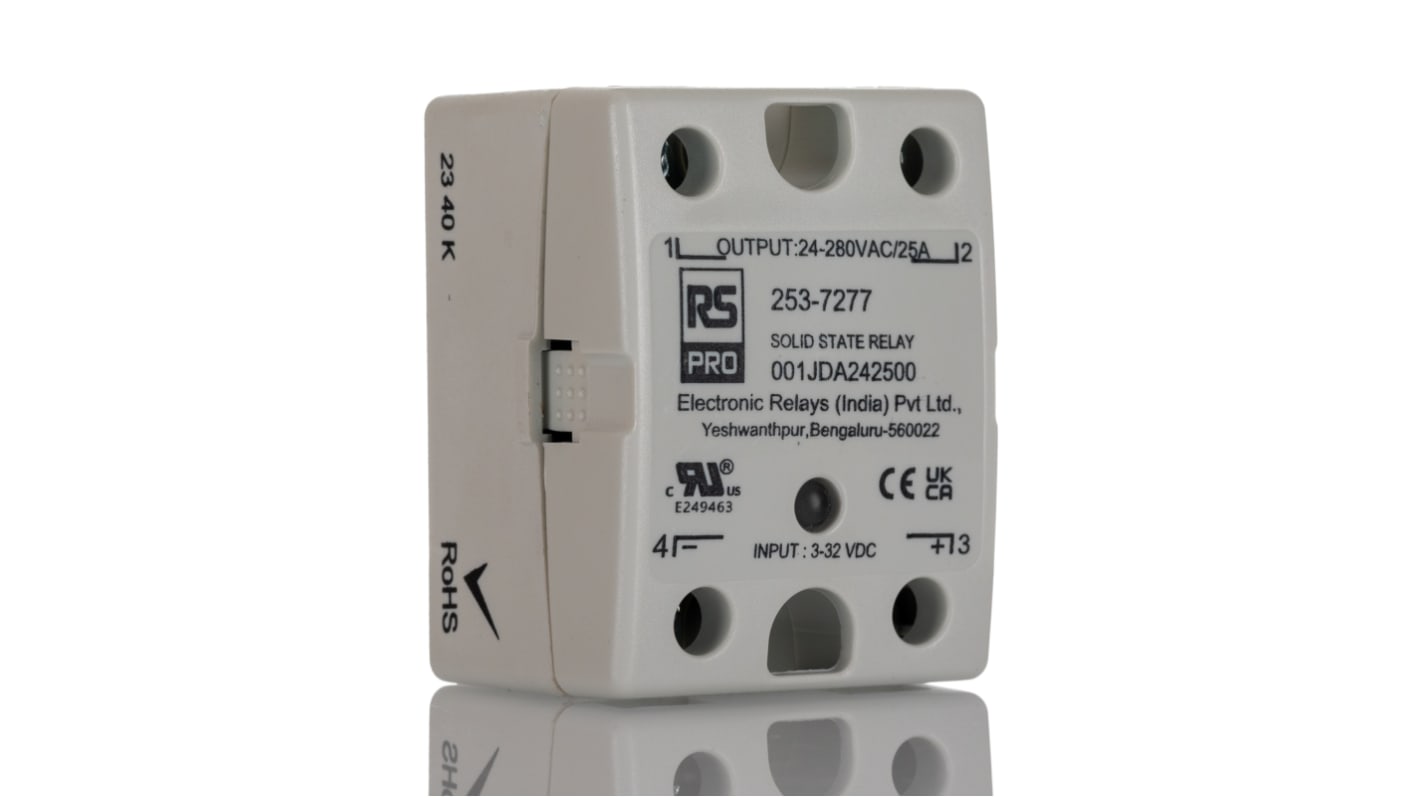

RS PRO Solid-State Relays - Triac Output
From the trusted brand RS PRO comes a range of solid-state relays designed to provide the very best performance via a Triac output switching element. These bidirectional devices are capable of controlling AC power by switching both halves of the AC waveform. They can switch AC loads, such as heaters, lamps, motors, and other devices that require precise control of power levels.
Why would you choose a Triac Solid-State Relay?
Solid-State Relays are panel mount/surface mount relays, widely used in industrial switching applications such as control of heaters, motors, solenoid, lighting, and microcontroller-based systems. SSR switching is preferred due to high reliability and long life and in electrically harsh environment. Ratings are offered starting from 10 Amps to 40 Amps for 240- and 440-volts applications.
Features and Benefits
- Single Phase
- TTL/CMOS compatible (sink mode)
- Integrated snubber
- LED status indication
- Reverse voltage protection for DC/AC types
- Terminals are polarised to prevent reverse connection
- Built in safety cover to meet IP 20 protection
Specifications
- Panel Mount/ Surface Mount
- Output Device: Triac
- Contact figuration: SPST
- Opto isolation 4000VAC
- Minimum Load Voltage: 24 V rms
- Maximum Load Voltage: 240 V rms, 280 V rms
- Dimensions: 47.75 mm x 46.6 mm x 36.5mm
Applications
- Lighting control systems
- Motor speed control
- Power regulators
- AC power switching
Specifikationer
Attribute | Value |
---|---|
Maximum Load Current | 25 Amps |
Mounting Type | Panel Mount, Surface Mount |
Maximum Load Voltage | 280 Vrms |
Minimum Load Voltage | 24 Vrms |
Switching Type | Zero Cross |
Minimum Load Current | 80 mA rms |
Contact Configuration | SPST |
Output Device | Triac |
