    Parallax Inc Propeller ActivityBot Wheel Encoder Kit

    RS-artikelnummer:
    843-0878
    Tillv. art.nr:
    32501
    Tillverkare / varumärke:
    Parallax Inc
    Parallax Inc
    Se alla Sensor Development Tools
    Denna produkt har utgått
    RS-artikelnummer:
    843-0878
    Tillv. art.nr:
    32501
    Tillverkare / varumärke:
    Parallax Inc
    COO (Country of Origin):
    US

    Lagstiftning och ursprungsland

    COO (Country of Origin):
    US

    Produktdetaljer

    Propeller ActivityBot Wheel Encoder kit


    A pair of reflective opto-sensors designed to work with shaft-mounted slotted-discs providing rotational speed information. They can be used to provide basic odometry for a mobile robot.

    Sharp GPA2025 modulated infrared sensors reduce interference from ambient light
    Communication: Active-high (Vcc = reflection detected)
    Power supply: +5Vdc @ 60mA
    Operating temperature range: -10 to +60°C
    Recommended disc/wheel: Parallax Small Robot Wheel & Tyre, RS 843-0897

    Note

    The Propeller ActivityBot kit (RS 790-5227) contains this encoder kit and encoder wheels as standard.

    Supplied with

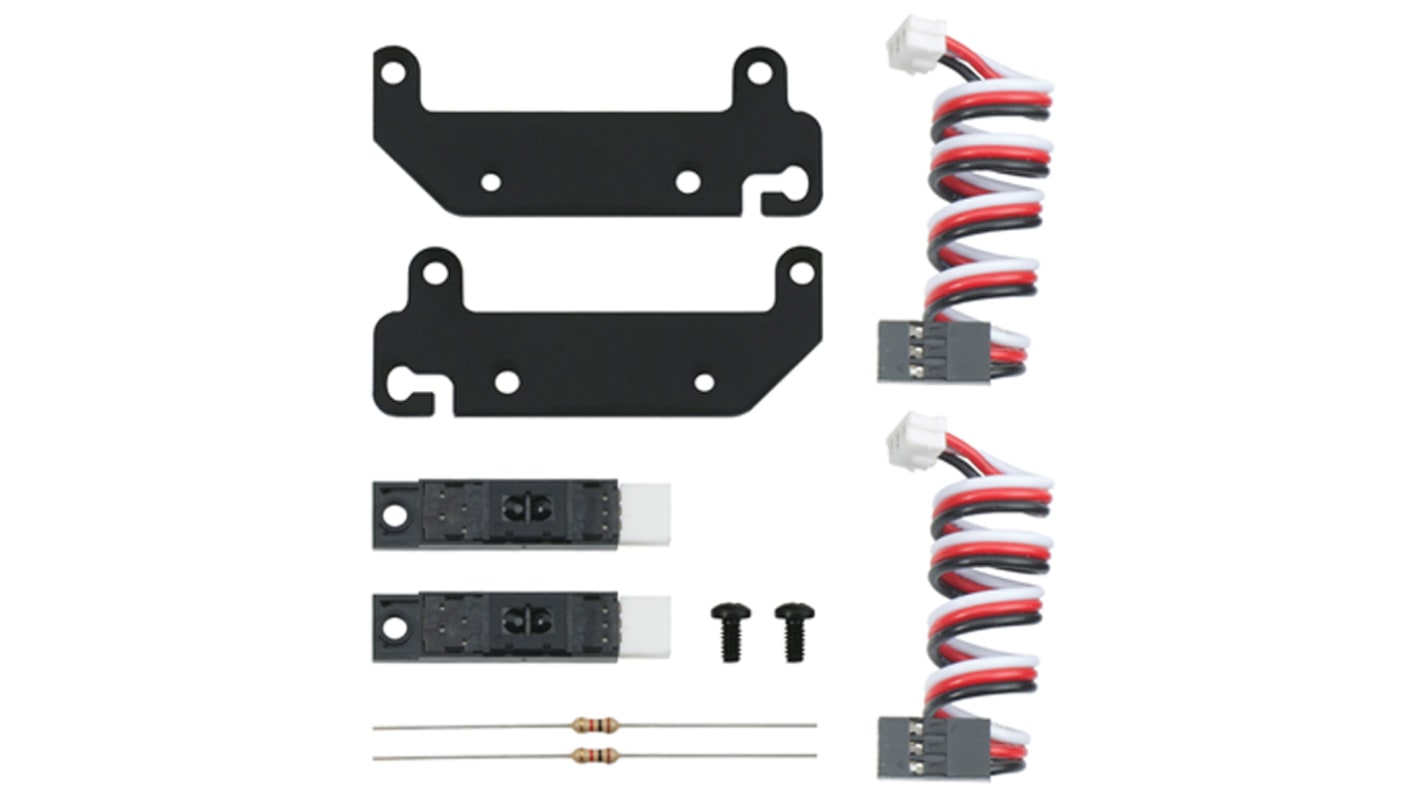

    2 x cables, 2 x 20kΩ resistors, 2 x mounting brackets, 2 x #4-40 machine screws


    The Propeller™ 1 microprocessor chip makes it easy to rapidly develop embedded applications. Its eight 32-bit processors (COGs) can operate simultaneously, either independently or cooperatively, sharing common resources through a central hub. The developer has full control over how and when each cog is employed; there is no compiler-driven or operating system-driven splitting of tasks among multiple cogs. A shared system clock keeps each cog on the same time reference, allowing for true deterministic timing and synchronization. Two programming languages are available: the easy-to-learn high-level Spin, and Propeller Assembly which can execute at up to 160 MIPS (20 MIPS per COG).

    Specifikationer

    AttributeValue
    Kit NamePropeller ActivityBot Wheel Encoder Kit
    Denna produkt har utgått
