Allen Bradley Guardmaster 440E Strömbrytare med dragsnöre 209.5 mm 4 NC Rak

Se alla Dragsnöreströmställare

Antal (1 enhet)*

2 950,19 kr

(exkl. moms)

3 687,74 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 8 enhet(er) är redo att levereras
  • Plus 7 enhet(er) är redo att levereras från en annan plats
  • Dessutom levereras 10 enhet(er) från den 18 maj 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +2 950,19 kr

*vägledande pris

RS-artikelnummer:
443-8077
Tillv. art.nr:
440E-L13147
Tillverkare / varumärke:
Allen Bradley Guardmaster
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Varumärke

Allen Bradley Guardmaster

Produkttyp

Strömbrytare med dragsnöre

Monteringsriktning

Rak

Indikatortyp

Repspänning

Kontaktkonfiguration

4 NC

IP-klassning

IP66

Antal kabelgenomföringar

1

Serie

440E

E-stopp-knapp

Ja

Kontakt DC-spänning

24V dc

Kontakt AC-spänning

600V ac

Minsta arbetsstemperatur

-25°C

Återställningsknapp

Ja

Maximal arbetstemperatur

80°C

Längd

209.5mm

Djup

85mm

Standarder/godkännanden

IEC, ISO, EN

Bredd

62mm

Husmaterial

Gjuten

Certifiering för farligt område

Nej

Mekanisk livslängd

1000000Operations

Kanalingång

M20

RoHS-status: Undantagen

COO (ursprungsland):
DO

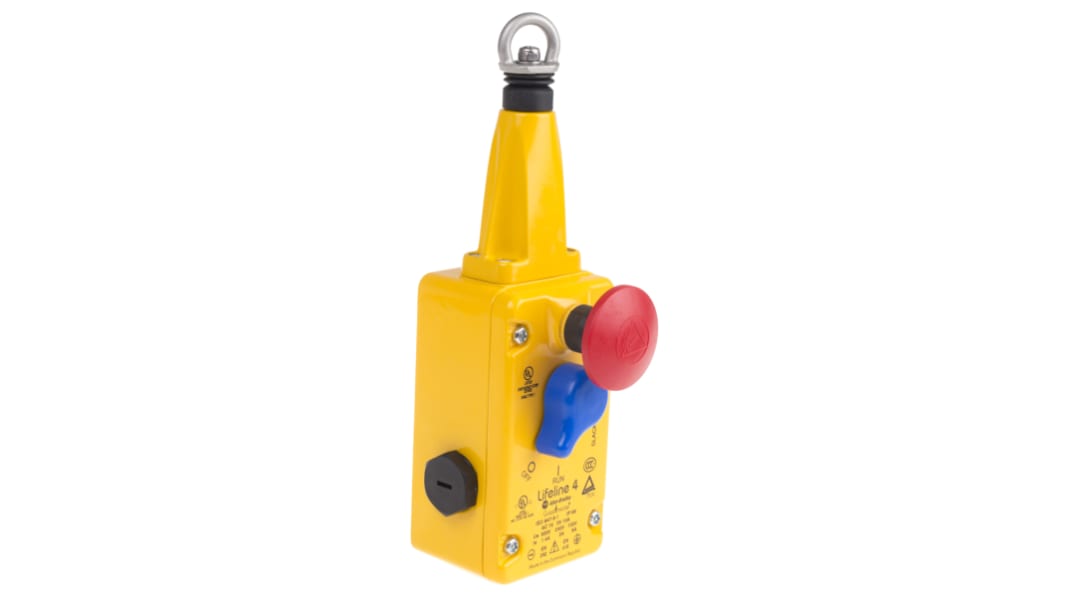

440E-L13147 Lifeline 4 Cable Switch with E-Stop


The 440E-L13147 grab wire switch has 4 Normally Closed safety contacts and features M20 conduit entry. It has excellent durability due to its housing material, which is comprised of heavy-duty painted zinc-based diecast alloy (LM24). It also has a yellow body with a blue reset button to enable clear visibility of the device in a panic situation. It has an operating temperature of -25°C to 80°C (-13…176°) and an ingress protection rating of IP66, which ensures that it is both dust-tight and protected against jets of water. This switch is well suited for installation along or around awkward machinery, such as conveyor belts and can switch up to a span of 125m.

What is a cable pull switch?


A cable pull switch, also known as grab wire switches or rope pull switches, are a common type of emergency stop device and safeguarding measure. They allow personnel to stop moving machinery anywhere along its length instead of at just one point on the machine and can be used over a long distance. This is useful if there is a chance that someone may become entangled in lengthy moving machinery, such as conveyor belts. These devices are hung by a wire around the machinery and can be operated by pulling the cord. This isolates the circuit and stops the hazard.

Allen Bradley Guardmaster 440E Lifeline 4 Rope Pull Switch


Secure vital protection for personnel around hazardous moving machinery by implementing constant emergency stop access with the 440E Lifeline 4 Cable Switch, by Allen Bradley Guardmaster.

The Cable Pull switches have a steel wire rope which is connected to latching pull switches, so that when the rope is pulled in any direction along the length the switch is tripped to stop the machine, minimising risk of injury and risk of damage to machinery.

The 440E Lifeline 4 is a versatile switch that incorporates many features in one unit to provide uniquely exceptional protection, ease-of-use and installation, and resilience, such as:

• It has a rope status indicator, allowing for simple set up and easy maintenance for spans of up to 125m.

• It also features a mushroom head emergency stop button for E-stop access at the extreme ends of the span

• This switch has a positive mode mechanism, ensuring that the contacts are instantly latched open upon actuation. They can be reset only through intentional action by turning the blue reset knob. Its design defends against nuisance tripping and the effects of thermal expansion.

Features and Benefits:


• Ease-of-installation and use due to universal mounting and operation

• Superior safety - Switch lockout on cable pulled and cable slack

• Lid mounted emergency stop button which conforms to ISO 850

• Safety contact gap >2 x 2mm

• CE marked in compliance to relevant European Directives

• Operating Force < 125 N (300 mm Deflection)

• Tension force 188 N lock-out, 103 N running

Note: For suitable rope kits see stock no. 366-3878 typically.

This safety device can be used with GuardLink™, a new safety linking technology from Allen Bradley Guardmaster. GuardLink™ simplifies and reduces the connection time of the safety system, whilst providing real-time diagnostic information over Ethernet IP. This makes it simple to identify the location of the device that has tripped the safety system, thus reducing downtime, and improving the machines overall efficiency. For more details, please go to the GuardLink™ brochure.

Standards: Designed to conform to EN418, EN292, EN60947-5-1, ISO 13850, BS 5304.

Approvals: BG, UL listed for Canada and US
