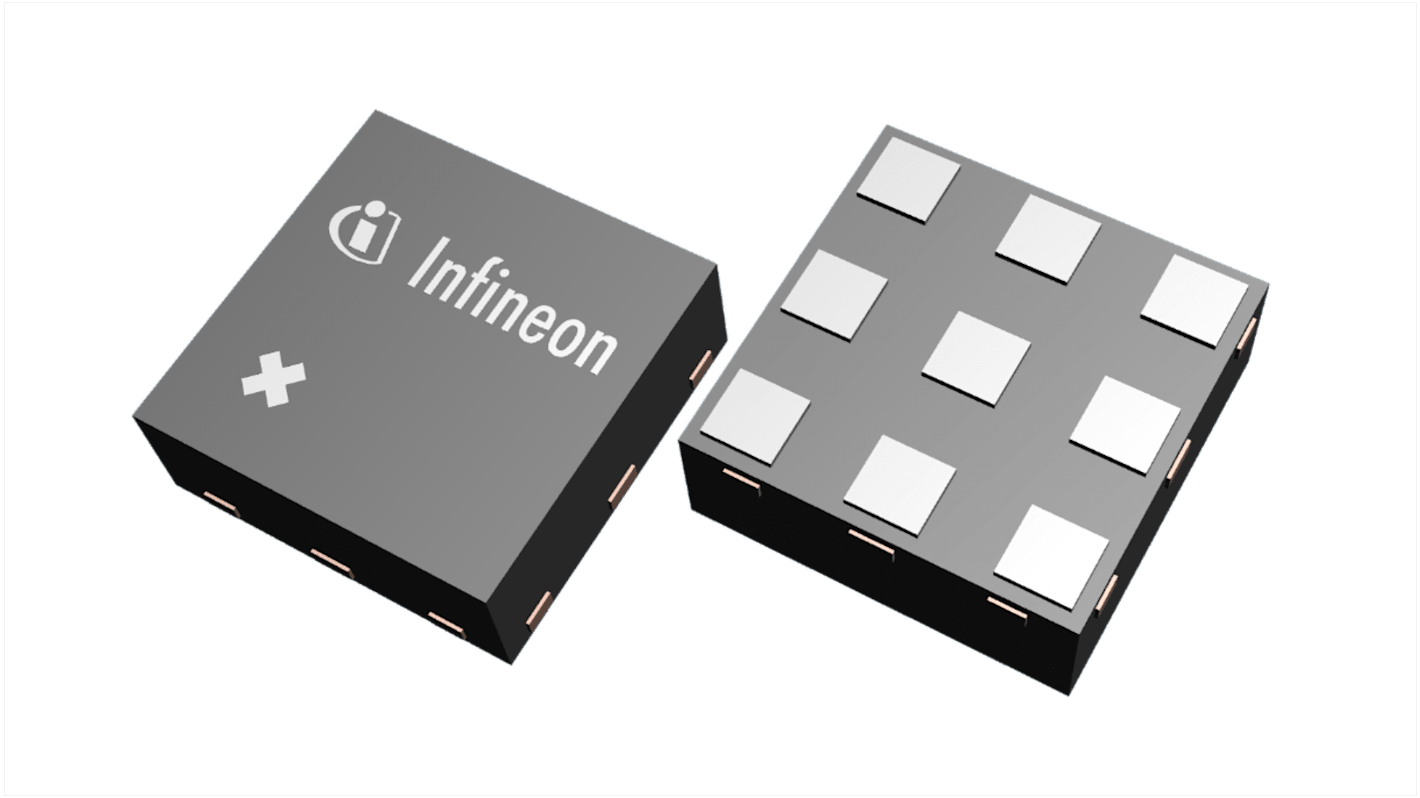

BGA9C1MN9E6327XTSA1 Infineon, RF Amplifier Low Noise, 19 dB 5000 MHz, 9-Pin TSNP-9-6
- RS-artikelnummer:
- 233-3493
- Tillv. art.nr:
- BGA9C1MN9E6327XTSA1
- Tillverkare / varumärke:
- Infineon
12000 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 5)
9,072 kr
(exkl. moms)
11,34 kr
(inkl. moms)
| Enheter | Per unit | Per Pack* |
| 5 - 45 | 9,072 kr | 45,36 kr |
| 50 - 120 | 7,542 kr | 37,71 kr |
| 125 - 245 | 7,076 kr | 35,38 kr |
| 250 - 495 | 6,544 kr | 32,72 kr |
| 500 + | 6,10 kr | 30,50 kr |
- RS-artikelnummer:
- 233-3493
- Tillv. art.nr:
- BGA9C1MN9E6327XTSA1
- Tillverkare / varumärke:
- Infineon
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
The Infineon a low noise amplifier for LTE and 5G which covers a wide frequency range from 4.4 GHz to 5.0 GHz. The LNA provides up to 19.0 dB gain and 0.9 dB noise figure at a current consumption of 5.6 mA in the application configuration.
RoHS and WEEE compliant package
High EMI robustness
High EMI robustness
Specifikationer
Attribute | Value |
|---|---|
| Amplifier Type | Low Noise |
| Typical 3dB Bandwidth | 4400 To 5000MHz |
| Typical Power Gain | 19 dB |
| Typical Noise Figure | 1dB |
| Number of Channels per Chip | 1 |
| Maximum Operating Frequency | 5000 MHz |
| Package Type | TSNP-9-6 |
| Pin Count | 9 |
| Series | BGA9C1 |
