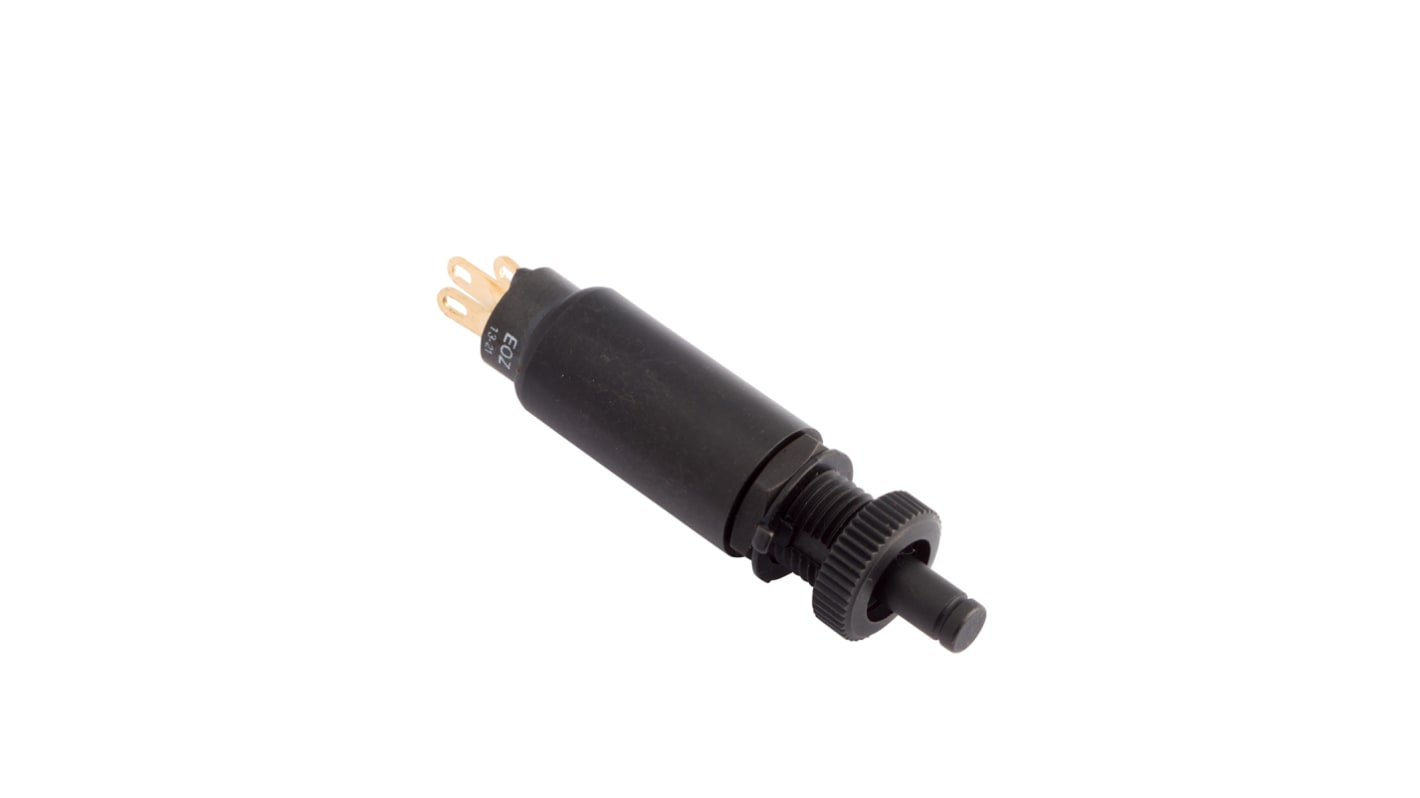

EOZ DJET Series Push Button Switch, Momentary, Panel, 6.4 mm Cutout, SPDT, IP67, IP65

Se alla Push Button Switches

Antal (1 enhet)*

792,29 kr

(exkl. moms)

990,36 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 8 enhet(er) är redo att levereras från en annan plats
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +792,29 kr

*vägledande pris

RS-artikelnummer:
913-1651
Tillv. art.nr:
17.17851.30
Tillverkare / varumärke:
EOZ
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

EOZ

Actuator Colour

Black

Switch Operation

Momentary

Product Type

Push Button Switch

Panel Cutout Size

6.4 mm

Series

DJET

Mount Type

Panel

Contact Configuration

SPDT

Terminal Type

Solder

IP Rating

IP67, IP65

Minimum Operating Temperature

-40°C

Actuator Style

Cap

Maximum Operating Temperature

85°C

Switch Contact Current

50 mA

Standards/Approvals

RoHS

COO (Country of Origin):
FR

DJET Series Pushbutton switches, Front Panel Sealed


The DJET series push button switches and be used in outdoor applications as they are IP67 front panel sealed for the 10mm version. The 6.35 mm version can be fitted with a silicone cap giving IP5 protection. They are available in single or double pole versions and in two sizes, either 6.35 mm or 10 mm diameters. They have a positive snap-action switching system with an electrical life of 100 000 operations.

For mounting, these units are pushed through the panel cut out and then fastened with a fixing nut from the back. Do not tighten by the means of top not.

Potential Applications


These units can be used in many possible applications and are extremely versatile. Some examples would include military and avionics equipment, telecommunications, medical equipment and power supplies.
