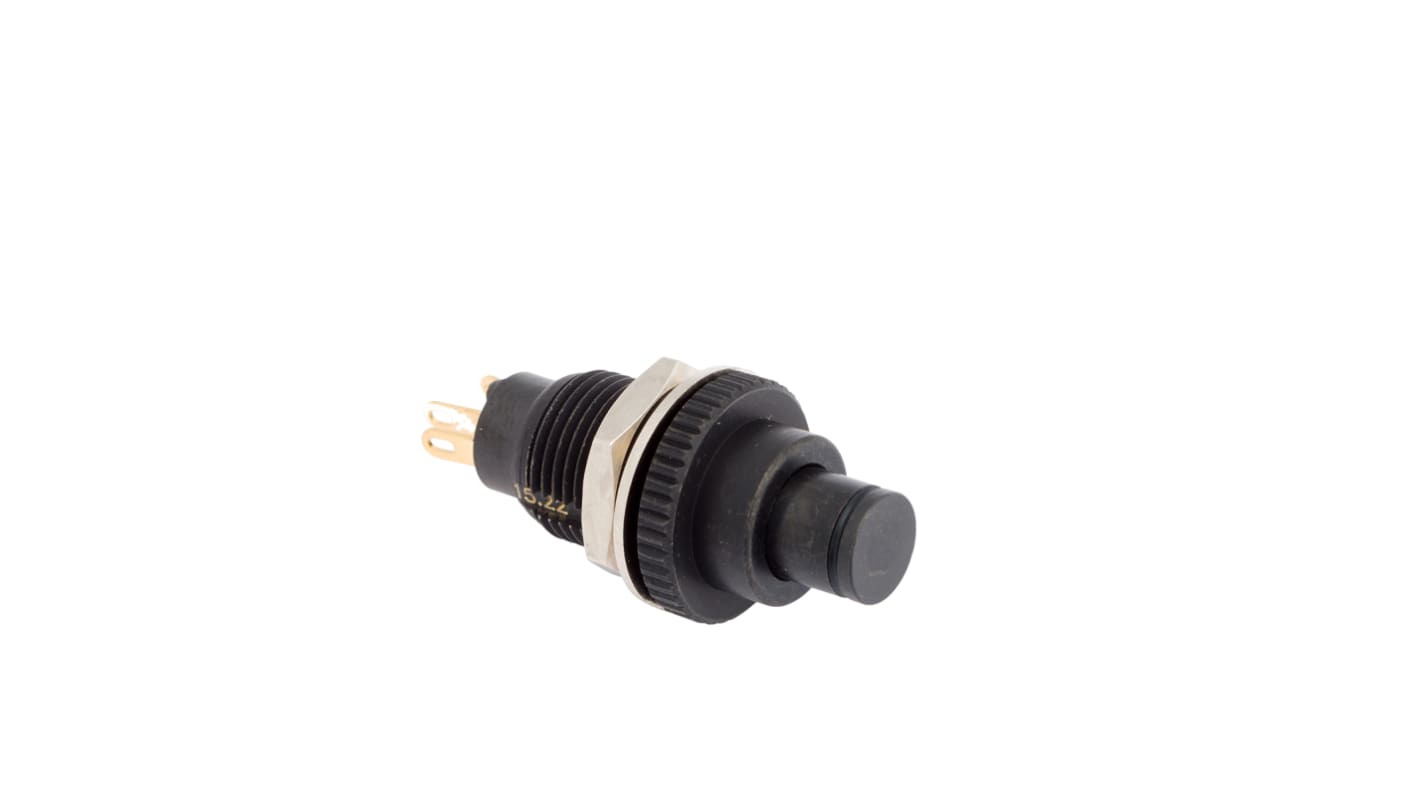

EOZ DJET Series Push Button Switch, Momentary, Panel, 10.2 mm Cutout, SPDT, IP65, IP67

Se alla Push Button Switches
Mängdrabatt möjlig

Antal (1 enhet)*

1 681,03 kr

(exkl. moms)

2 101,29 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Tillfälligt slut
  • Leverans från den 20 mars 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 - 41 681,03 kr
5 - 91 618,85 kr
10 - 241 561,73 kr
25 - 491 507,86 kr
50 +1 457,46 kr

*vägledande pris

RS-artikelnummer:
913-1649
Tillv. art.nr:
17.17551.30
Tillverkare / varumärke:
EOZ
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

EOZ

Switch Operation

Momentary

Actuator Colour

Black

Product Type

Push Button Switch

Series

DJET

Panel Cutout Size

10.2 mm

Mount Type

Panel

Contact Configuration

SPDT

Terminal Type

Solder

IP Rating

IP65, IP67

Actuator Style

Cap

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Standards/Approvals

RoHS

Switch Contact Current

100 μA

COO (Country of Origin):
FR

DJET Series Pushbutton switches, Front Panel Sealed


The DJET series push button switches and be used in outdoor applications as they are IP67 front panel sealed for the 10mm version. The 6.35 mm version can be fitted with a silicone cap giving IP5 protection. They are available in single or double pole versions and in two sizes, either 6.35 mm or 10 mm diameters. They have a positive snap-action switching system with an electrical life of 100 000 operations.

For mounting, these units are pushed through the panel cut out and then fastened with a fixing nut from the back. Do not tighten by the means of top not.

Potential Applications


These units can be used in many possible applications and are extremely versatile. Some examples would include military and avionics equipment, telecommunications, medical equipment and power supplies.
