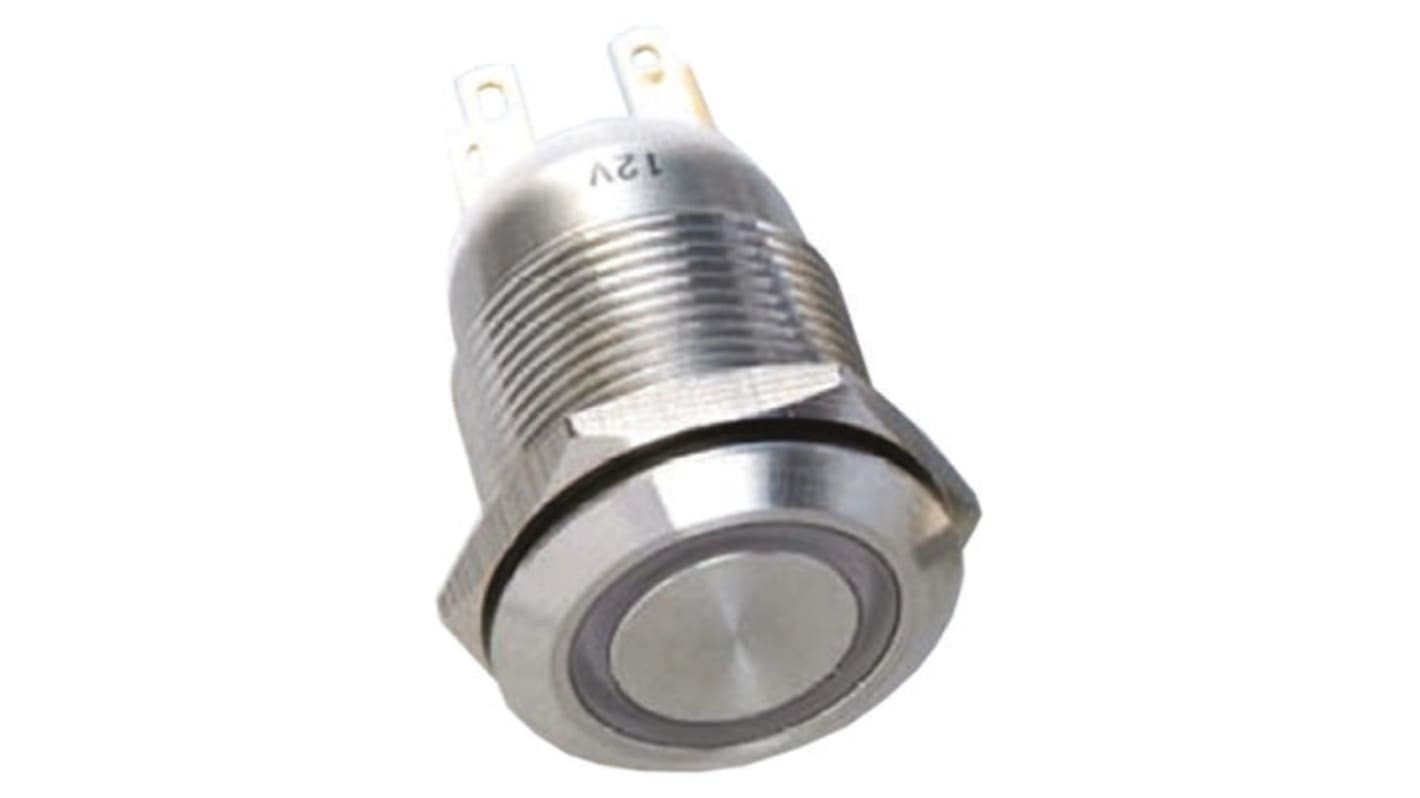

    EOZ Illuminated Momentary Push Button Switch, Panel Mount, SPDT, 19.2mm Cutout, Yellow LED, IP65

    RS-artikelnummer:
    690-3494
    Tillv. art.nr:
    R19FFSSPAGRY220
    Tillverkare / varumärke:
    EOZ
    EOZ

    Denna bild representerar endast produktgruppen

    Se alla Push Button Switches
    Tillfälligt slut i lager restorder för leverans 2022-09-27
    Add to Basket
    Enheter

    Nästa dag-leverans inte möjlig

    Lagt till varukorgen

    Pris (ex. moms) Each

    314,01 kr

    (exkl. moms)

    392,51 kr

    (inkl. moms)

    EnheterPer unit
    1 - 14314,01 kr
    15 - 49270,87 kr
    50 - 99227,78 kr
    100 - 249211,79 kr
    250 +197,82 kr

    Alternativ

    Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar denna produkt istället.

    EOZ Illuminated Momentary Push Button Switch, Panel Mount, SPDT, 19.2mm Cutout, White LED, IP65
    RS-artikelnummer
    690-3472

    Pris (ex. moms) Each

    366,66 kr

    (exkl. moms)

    458,32 kr

    (inkl. moms)

    RS-artikelnummer:
    690-3494
    Tillv. art.nr:
    R19FFSSPAGRY220
    Tillverkare / varumärke:
    EOZ
    COO (Country of Origin):
    FR

    Lagstiftning och ursprungsland

    COO (Country of Origin):
    FR

    Produktdetaljer

    R Series illuminated Anti-vandal pushbutton (19 mm)


    These R series are a range of 19 mm vandal resistant push buttons, ideal for use across a number of industries and applications such as:-


    • Access Control systems.
    • Machinery and factory equipment.
    • Exposed public areas such as ticket machines, kiosks and vending machines.
    • And many more.


    Features and Benefits


    • Vandal Resistant push buttons.
    • Impact resistant to IK09 – protected against 10 joules impact. Equivalent to impact of 5 kg mass dropped from approximately 200 mm above impacted surface.
    • Sealed to IP65 – totally protected against dust and protected against low pressure jets of water from all directions – limited ingress permitted.
    • Mounted in 19mm holes.
    • Illuminated – ring or central dot LED illumination, available in several different colours. They will emit a light when pressed.
    • Long life service making these ideal for using in public spaces, exposed or aggressive industrial environments.



    Specifikationer

    AttributeValue
    Switch OperationMomentary
    Mounting TypePanel Mount
    IlluminatedYes
    Contact ConfigurationSingle Pole Double Throw (SPDT)
    Panel Cut Out Size19.2 (Dia.)mm
    Panel Cut Out Diameter19.2mm
    LED ColourYellow
    IP RatingIP65
    Actuator ColourSilver
    Contact Current Rating5 A @ 250 V ac
    Actuator ShapeRound
    Case ColourStainless Steel
    Actuator TypeButton
    Terminal TypeSolder
