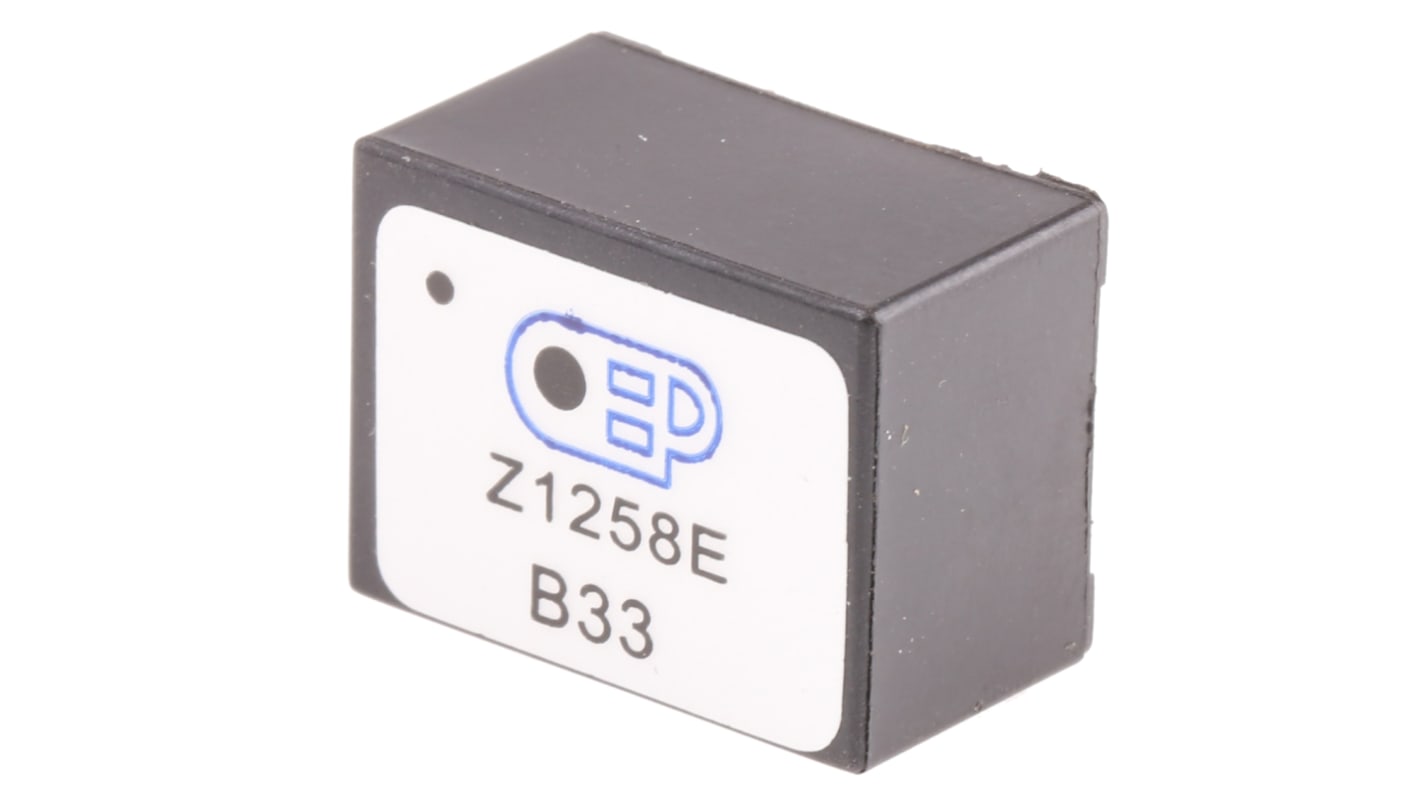

OEP Through Hole Pulse Transformer 1:1 Turns Ratio, 2H Prim. Inductance, 45Ω Prim. Resistance

Se alla Pulse Transformers
Mängdrabatt möjlig

Antal (1 enhet)*

103,22 kr

(exkl. moms)

129,02 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 606 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 - 24103,22 kr
25 - 9992,83 kr
100 +76,43 kr

*vägledande pris

RS-artikelnummer:
533-0160
Tillv. art.nr:
Z1258E
Tillverkare / varumärke:
OEP
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

OEP

Primary Inductance

2H

Primary DC Resistance

45Ω

Secondary DC Resistance

45Ω

Insertion Loss

1.1dB

Turns Ratio

1:1

Mounting Type

Through Hole

Leakage Inductance

6mH

Dimensions

19 x 15 x 11.3mm

Depth

11.3mm

Length

19mm

Width

15mm

COO (Country of Origin):
CN

OEP, Line Isolating Transformers


From OEP, this selection of compact encapsulated PCB and surface mount line isolating transformers are for use in data transmission applications. They are approved and certified for use in telecommunications circuits required to meet BS6305 (Speech and Non-Speech Class A) providing the line hold current is diverted from the windings by a choke or other electronic means. Constructed from resin encapsulated in a glass filled nylon box, these line isolating transformers are flame retardant to UL94-V0 requirements.

Note

Stock no. 210-6273 is a surface mount device.

Standards

BS415; EN60950; EN41003

Approvals

BABT
