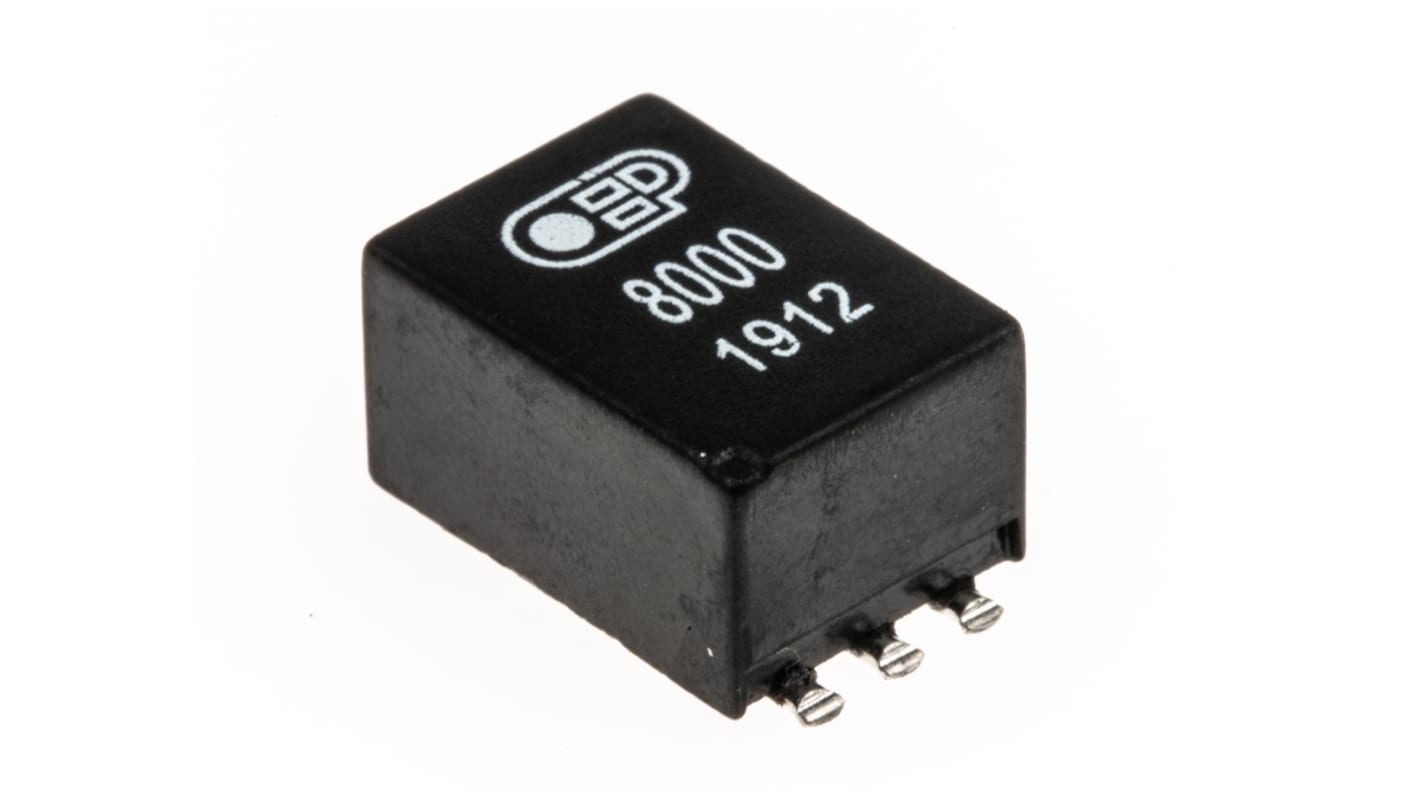

OEP Surface Mount Pulse Transformer 1:1 Turns Ratio, 3.6H Prim. Inductance, 111Ω Prim. Resistance

Se alla Pulse Transformers
Mängdrabatt möjlig

Antal (1 enhet)*

64,40 kr

(exkl. moms)

80,50 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • 179 enhet(er) är redo att levereras
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 - 4964,40 kr
50 +59,02 kr

*vägledande pris

RS-artikelnummer:
210-6273
Tillv. art.nr:
OEP8000
Tillverkare / varumärke:
OEP
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

OEP

Primary Inductance

3.6H

Primary DC Resistance

111Ω

Secondary DC Resistance

111Ω

Insertion Loss

4dB

Turns Ratio

1:1

Mounting Type

Surface Mount

Leakage Inductance

4100µH

Dimensions

9 x 7.3 x 14.2mm

Depth

14.2mm

Length

9mm

Width

7.3mm

Maximum Operating Frequency

4kHz

Minimum Operating Frequency

200Hz

Minimum Temperature

-10°C

Maximum Temperature

+85°C

Termination Type

Solder

COO (Country of Origin):
CN

OEP, Line Isolating Transformers


From OEP, this selection of compact encapsulated PCB and surface mount line isolating transformers are for use in data transmission applications. They are approved and certified for use in telecommunications circuits required to meet BS6305 (Speech and Non-Speech Class A) providing the line hold current is diverted from the windings by a choke or other electronic means. Constructed from resin encapsulated in a glass filled nylon box, these line isolating transformers are flame retardant to UL94-V0 requirements.

Note

Stock no. 210-6273 is a surface mount device.

Standards

BS415; EN60950; EN41003

Approvals

BABT

Approvals

BABT

Standards

BS415; EN60950; EN41003
