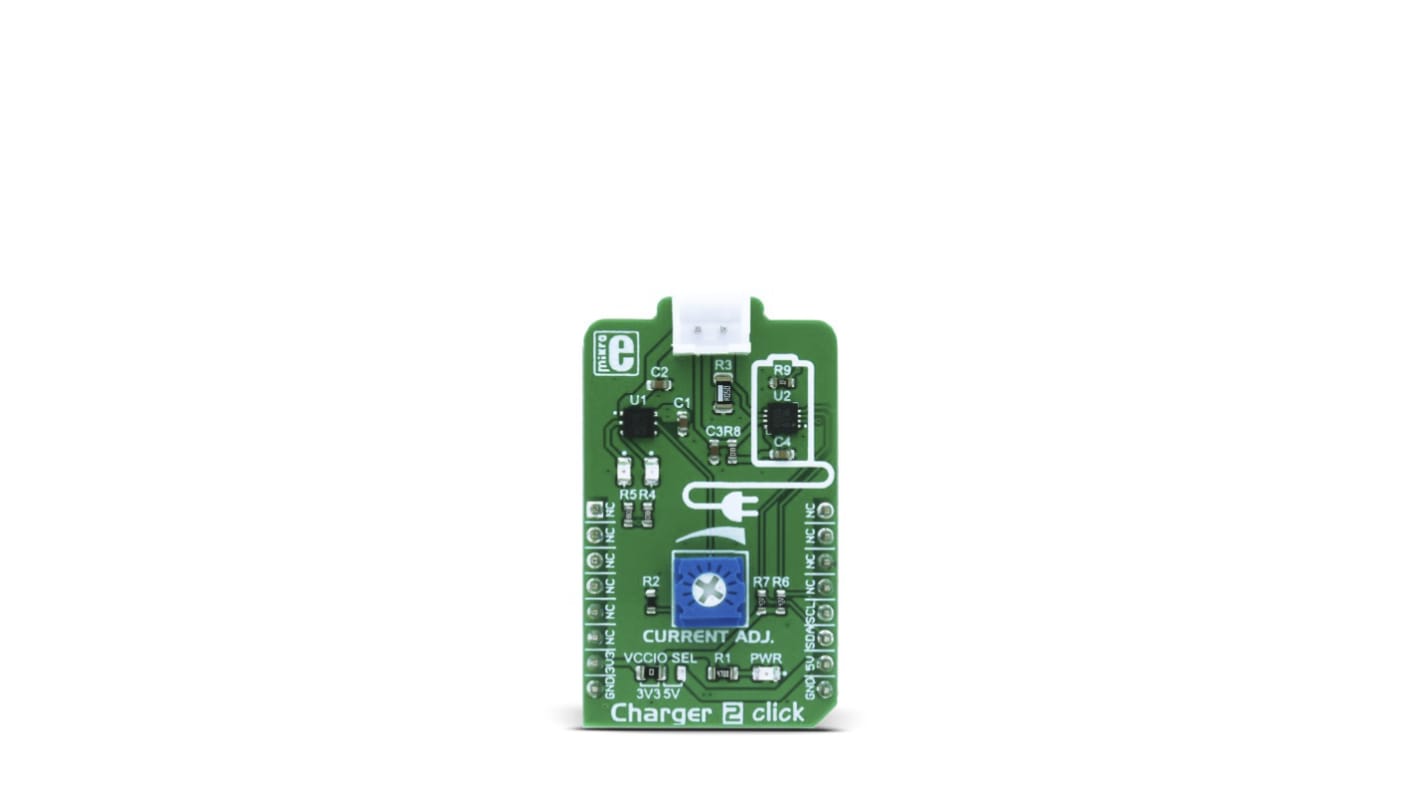

MikroElektronika Charger 2 Click Board Battery Charger for STBC08, STC3100 for Optimal and Reliable Charging of 3.7 V

Se kategorien

Antal (1 enhet)*

206,41 kr

(exkl. moms)

258,01 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • Dessutom levereras 6 enhet(er) från den 22 december 2025
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Enheter
Per enhet
1 +206,41 kr

*vägledande pris

RS-artikelnummer:
184-0907
Distrelec artikelnummer:
301-63-909
Tillv. art.nr:
MIKROE-3049
Tillverkare / varumärke:
MikroElektronika
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

MikroElektronika

Power Management Function

Battery Charger

Product Type

Development Kit

For Use With

Optimal and Reliable Charging of 3.7 V Lithium-Polymer Batteries

Kit Classification

Click Board

Featured Device

STBC08, STC3100

Kit Name

Charger 2 Click Board

Standards/Approvals

No

Distrelec Product Id

30163909

Charger 2 click is a LiPo/Li-Ion battery charger with the additional monitoring IC onboard. This Click board™ as a whole, offers unpreceded battery charging and monitoring solution for 3.7V LiPo/Li-Ion batteries, with the capacity measurement/gas gauge function, for up to 7000 mAh. It provides measurement data via the I2C interface and two signaling LEDs on the Click board™ itself. It features two dedicated ICs - one for charging the battery and one for monitoring its status. The charging function is performed by the STBC08, a standalone linear battery charger IC, while the monitoring of the critical battery parameters is done by the STC3100, a battery monitor IC with Coulomb counter/gas gauge.

Battery voltage monitoring

Internal temperature sensor

Coulomb counter with 12/14-bit AD converter+/- 80 mV input voltage range

Internal or external 32768 Hz time base

I2C interface for gas gauge monitoring and device control

32-RAM bytes

8-byte unique device ID

One general-purpose I/O

Cellular phones, PDA, MP3 players, cordless phones

Digital cameras, USB appliances, Bluetooth devices
