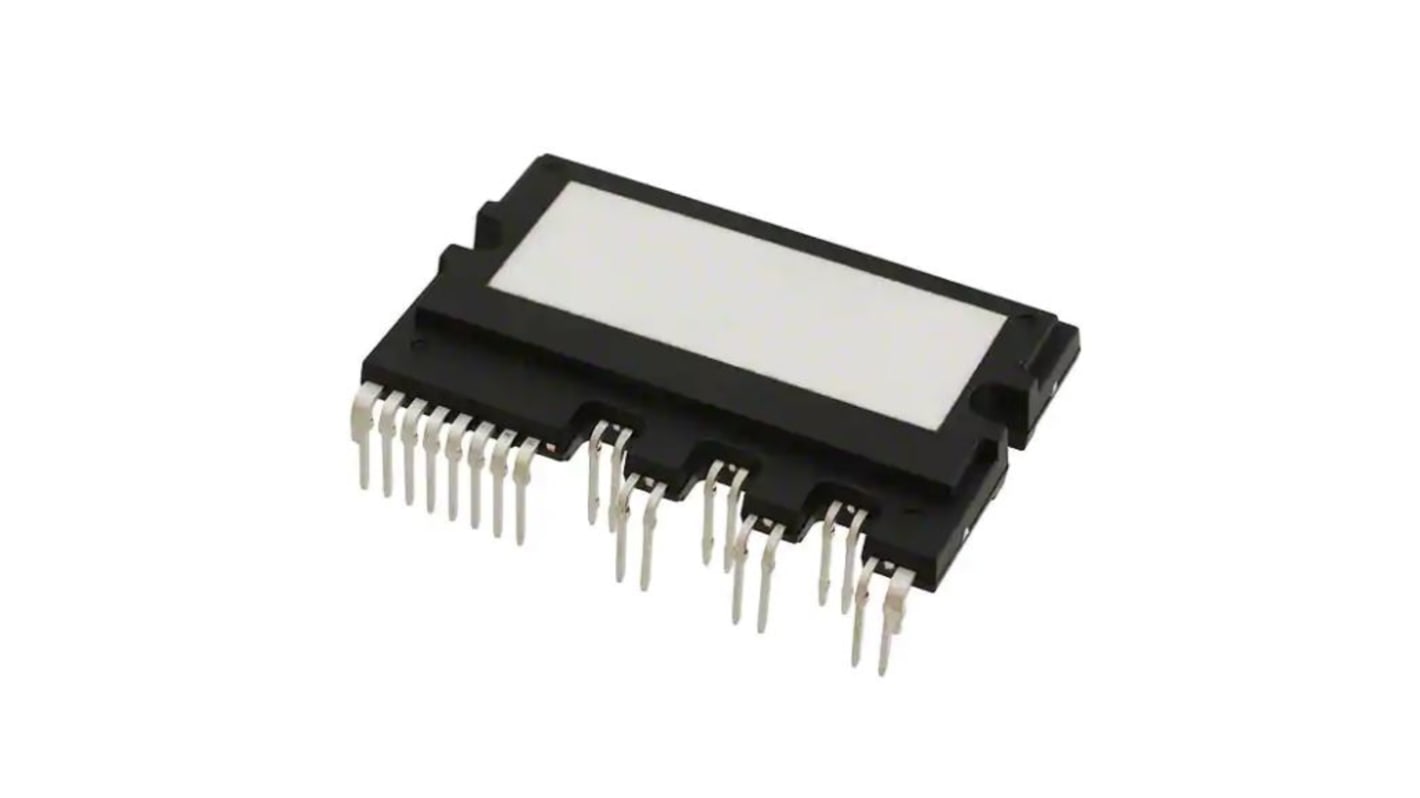

onsemi FPAB20BH60B, Power Factor Pre-Regulator Circuit, 20 kHz, 253 Vrms 27-Pin, SPMIC
- RS-artikelnummer:
- 181-1937
- Tillv. art.nr:
- FPAB20BH60B
- Tillverkare / varumärke:
- onsemi
Mängdrabatt möjlig
Antal (1 enhet)*
186,26 kr
(exkl. moms)
232,82 kr
(inkl. moms)
GRATIS leverans för online beställningar över 500,00 kr
Sista RS lager
- Slutlig(a) 33 enhet(er), redo att levereras
Enheter | Per enhet |
|---|---|
| 1 - 9 | 186,26 kr |
| 10 + | 160,61 kr |
*vägledande pris
- RS-artikelnummer:
- 181-1937
- Tillv. art.nr:
- FPAB20BH60B
- Tillverkare / varumärke:
- onsemi
Specifikationer
Datablad
Lagstiftning och ursprungsland
Produktdetaljer
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla | Attribut | Värde |
|---|---|---|
| Brand | onsemi | |
| Maximum Switching Frequency | 20 kHz | |
| IC Type | Power Factor Pre-Regulator Circuit IC | |
| Maximum Sink Current | 5mA | |
| Maximum Supply Current | 26 mA | |
| Mounting Type | Through Hole | |
| Package Type | SPMIC | |
| Pin Count | 27 | |
| Dimensions | 44.2 x 27 x 5.7mm | |
| Height | 5.7mm | |
| Length | 44.2mm | |
| Maximum Operating Supply Voltage | 253 Vrms | |
| Maximum Operating Temperature | +150 °C | |
| Minimum Operating Supply Voltage | 187 Vrms | |
| Width | 27mm | |
| Minimum Operating Temperature | -40 °C | |
| Välj alla | ||
|---|---|---|
Brand onsemi | ||
Maximum Switching Frequency 20 kHz | ||
IC Type Power Factor Pre-Regulator Circuit IC | ||
Maximum Sink Current 5mA | ||
Maximum Supply Current 26 mA | ||
Mounting Type Through Hole | ||
Package Type SPMIC | ||
Pin Count 27 | ||
Dimensions 44.2 x 27 x 5.7mm | ||
Height 5.7mm | ||
Length 44.2mm | ||
Maximum Operating Supply Voltage 253 Vrms | ||
Maximum Operating Temperature +150 °C | ||
Minimum Operating Supply Voltage 187 Vrms | ||
Width 27mm | ||
Minimum Operating Temperature -40 °C | ||
- COO (Country of Origin):
- CN
The FPAB20BH60B is an advanced PFC SPM® 3 module providing a fully-featured, high-performance Boost PFC (Power Factor Correction) input power stage for consumer, medical, and industrial applications. These modules integrate optimized gate drive of the built-in IGBT to minimize EMI and losses, while also providing multiple on-module protection features including under-voltage lockout, over-current shutdown, thermal monitoring, and fault reporting. These modules also feature a full-wave rectifier, and high-performance output diode for additional space savings and mounting convenience.
600 V - 20 A Single-Phase Boost PFC with Integral Gate Driver and Protection
Very Low Thermal Resistance Using Al2O3 DBC Substrate
Full-Wave Bridge Rectifier and High-Performance Output Diode
Built-in NTC Thermistor for Temperature Monitoring
Optimized for 20kHz Switching Frequency
Isolation Rating: 2500 Vrms/min.
Motion Control - Home Appliance/Industrial Motor
Very Low Thermal Resistance Using Al2O3 DBC Substrate
Full-Wave Bridge Rectifier and High-Performance Output Diode
Built-in NTC Thermistor for Temperature Monitoring
Optimized for 20kHz Switching Frequency
Isolation Rating: 2500 Vrms/min.
Motion Control - Home Appliance/Industrial Motor
