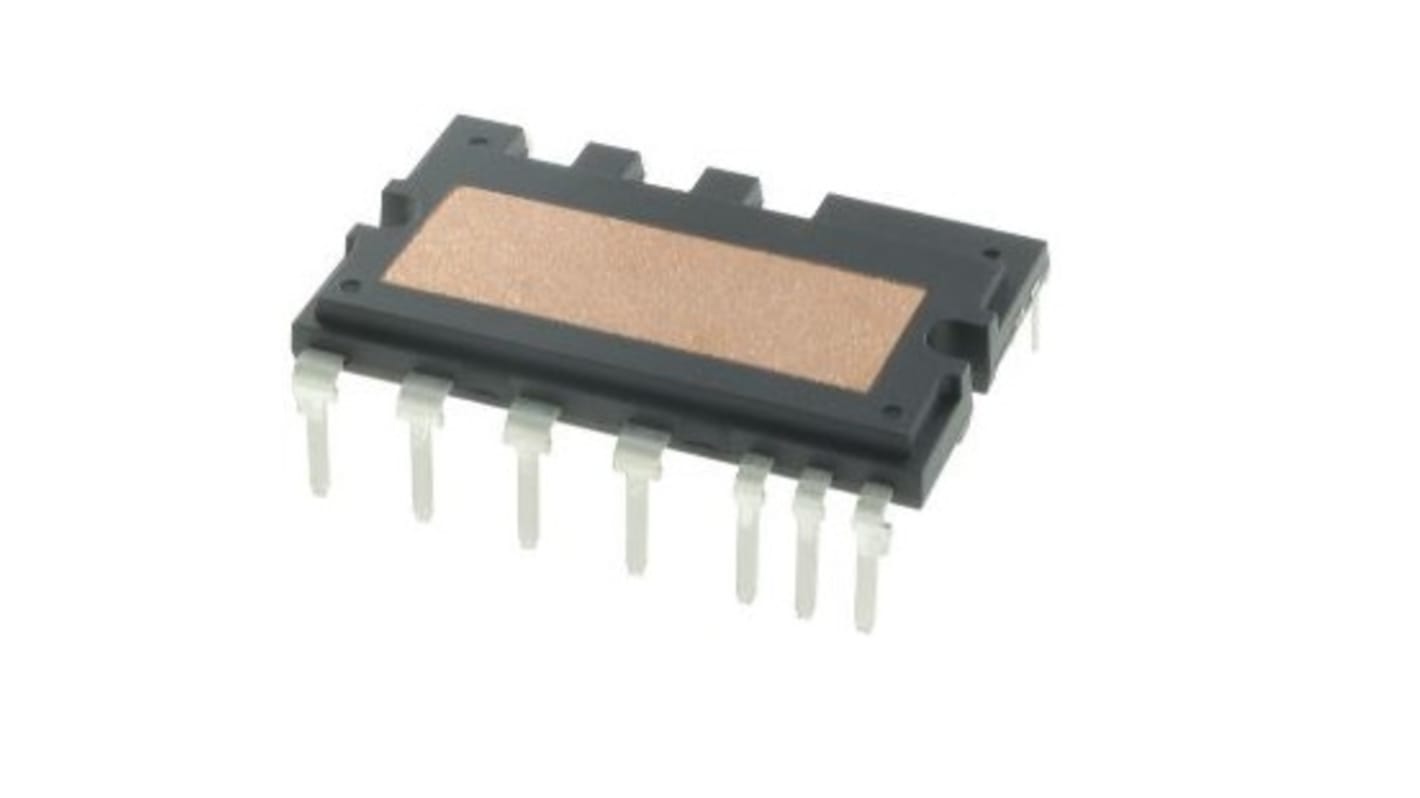

onsemi FPDB60PH60B, Power Factor Pre-Regulator Circuit, 20 kHz, 264 Vrms 27-Pin, SPMHC

Se alla Power Factor Correction
Mängdrabatt möjlig

Antal (1 enhet)*

241,92 kr

(exkl. moms)

302,40 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
Sista RS lager
  • Slutlig(a) 3 enhet(er), redo att levereras
Enheter
Per enhet
1 - 9241,92 kr
10 +208,54 kr

*vägledande pris

RS-artikelnummer:
181-1931
Tillv. art.nr:
FPDB60PH60B
Tillverkare / varumärke:
onsemi
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

onsemi

Maximum Switching Frequency

20 kHz

IC Type

Power Factor Pre-Regulator Circuit IC

Maximum Sink Current

5mA

Maximum Supply Current

26 mA

Mounting Type

Through Hole

Package Type

SPMHC

Pin Count

27

Dimensions

44.2 x 27 x 5.7mm

Height

5.7mm

Length

44.2mm

Maximum Operating Supply Voltage

264 Vrms

Maximum Operating Temperature

+150 °C

Minimum Operating Temperature

-40 °C

Minimum Operating Supply Voltage

180 Vrms

Width

27mm

COO (Country of Origin):
CN
The FPDB60PH60B is an advanced PFC SPM® 3 module providing a fully-featured, high-performance Bridgeless PFC (Power Factor Correction) input powerstage for consumer, medical, and industrial applications. These modules integrate optimized gate drive of the built-in IGBTs to minimize EMI and losses, while also providing multiple on-module protection features including under-voltage lockout, over-current shutdown, thermal monitoring, and fault reporting. These modules also feature high-performance output diodes and shunt resistor for additional space savings and mounting convenience.

600 V - 60 A 2-Phase Bridgeless PFC with Integral Gate Driver and Protection
Very Low Thermal Resistance Using AlN DBC Substrate
Built-in NTC Thermistor for Temperature Monitoring
Built-in Shunt Resistor for Current Sensing
Optimized for 20kHz Switching Frequency
Isolation Rating: 2500 Vrms/min.
Motion Control - Home Appliance/Industrial Motor
