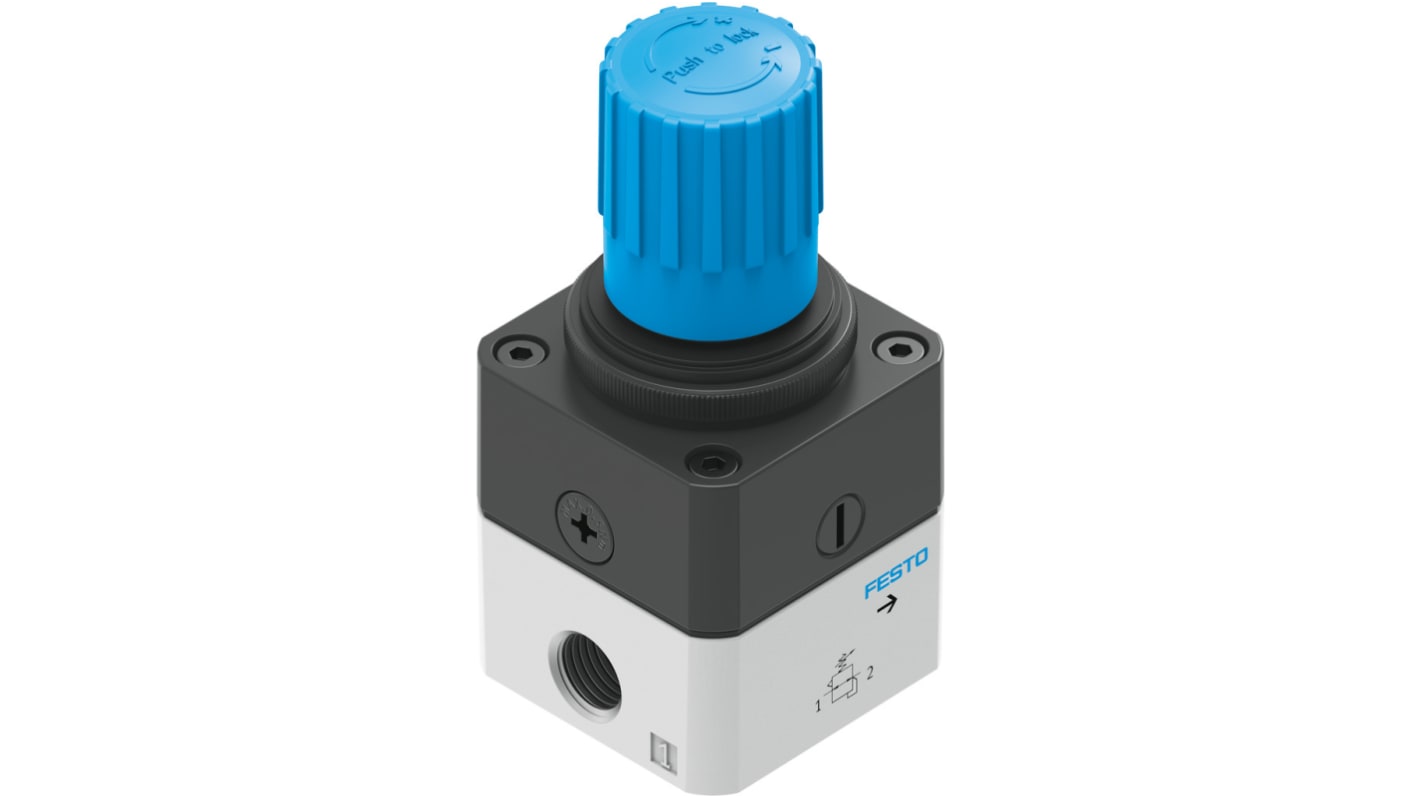

Festo G 1/4 Pneumatic Regulator - 1bar to 4bar, 1/4in, 12bar max. input, 159501

RS-artikelnummer:: 121-5642
Distrelec artikelnummer:: 301-68-930
Tillv. art.nr:: LRP-1/4-4
Tillverkare / varumärke:: Festo

Festo G 1/4 Pneumatic Regulator - 1bar to 4bar, 1/4in, 12bar max. input, 159501

Mängdrabatt möjlig

Antal (1 enhet)*

2 653,95 kr

(exkl. moms)

3 317,44 kr

(inkl. moms)

GRATIS leverans för online beställningar över 500,00 kr

I lager

12 enhet(er) är redo att levereras
Plus 4 enhet(er) är redo att levereras från en annan plats

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet
1 - 4	2 653,95 kr
5 - 9	2 547,78 kr
10 +	2 488,08 kr

*vägledande pris

RS-artikelnummer:: 121-5642
Distrelec artikelnummer:: 301-68-930
Tillv. art.nr:: LRP-1/4-4
Tillverkare / varumärke:: Festo

Specifikationer

Datablad

Lagstiftning och ursprungsland

Produktdetaljer

Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	Festo
	Port Connection	G 1/4
	Maximum Outlet Pressure	4bar
	Minimum Outlet Pressure	1bar
	Maximum Input Pressure	12bar
	Manufacturer Series	LRP
	Pressure Gauge Port Size	G 1/4
	Port Connection Thread Size	1/4in
	Pressure Gauge Port Thread Size	1/4in
	Maximum Flow Rate	2300L/min
	Typical Flow Rate	2000L/min
	Port Connection Thread Standard	G
	Minimum Operating Temperature	-10°C
	Maximum Operating Temperature	+60°C
	Model Number p	159501
	Overall Dimensions	50 x 50 x 111mm
	Overall Length	50mm
	Overall Height	111mm
	Overall Width	50mm
	Pressure Gauge Port Thread Standard	G

	Välj alla
	Brand Festo
	Port Connection G 1/4
	Maximum Outlet Pressure 4bar
	Minimum Outlet Pressure 1bar
	Maximum Input Pressure 12bar
	Manufacturer Series LRP
	Pressure Gauge Port Size G 1/4
	Port Connection Thread Size 1/4in
	Pressure Gauge Port Thread Size 1/4in
	Maximum Flow Rate 2300L/min
	Typical Flow Rate 2000L/min
	Port Connection Thread Standard G
	Minimum Operating Temperature -10°C
	Maximum Operating Temperature +60°C
	Model Number p 159501
	Overall Dimensions 50 x 50 x 111mm
	Overall Length 50mm
	Overall Height 111mm
	Overall Width 50mm
	Pressure Gauge Port Thread Standard G

COO (Country of Origin):: HU

Festo Pneumatic Regulator, 1 to 12 Bar Operating Pressure, -10 to 60°C Ambient Temperature - LRP-1/4-4, Numeric Part Number: 159501

This precision pressure regulator from the LRP series provides reliable performance with an adjustable outlet pressure from 1 bar to 4 bar. The pilot-controlled diaphragm technology ensures consistent pressure, making it crucial for maintaining system integrity.

Features & Benefits

• Adjustable outlet pressure from 1 bar to 4 bar
• Maximum flow rate of 2300L/min
• Pilot-controlled diaphragm for stable pressure regulation
• Suitable for compressed air and inert gases
• Rotary knob actuator lock for ease of use
• RoHS-compliant for environmentally friendly operation

Applications

• Automation processes requiring precise pressure control
• Pneumatic tools and machinery in manufacturing
• Systems involving compressed air and inert gases
• Compact mounting applications
• Laboratories needing regulated pressure

Will it operate effectively in varying temperatures?

Yes, it functions within -10°C to 60°C.

Is it suitable for oil-lubricated systems?

No, it is not suitable for use with oil lubrication.
