- RS-artikelnummer:
- 176-1891
- Tillverkare / varumärke:
- RS PRO
100 I lager för avsändande samma dag
Lagt till varukorgen
Pris (ex. moms) Var (i ett paket med 10)
252,874 kr
(exkl. moms)
316,092 kr
(inkl. moms)
Enheter | Per unit | Per Pack* |
10 + | 252,874 kr | 2 528,74 kr |
- RS-artikelnummer:
- 176-1891
- Tillverkare / varumärke:
- RS PRO
Lagstiftning och ursprungsland
- COO (Country of Origin):
- IT
Produktdetaljer

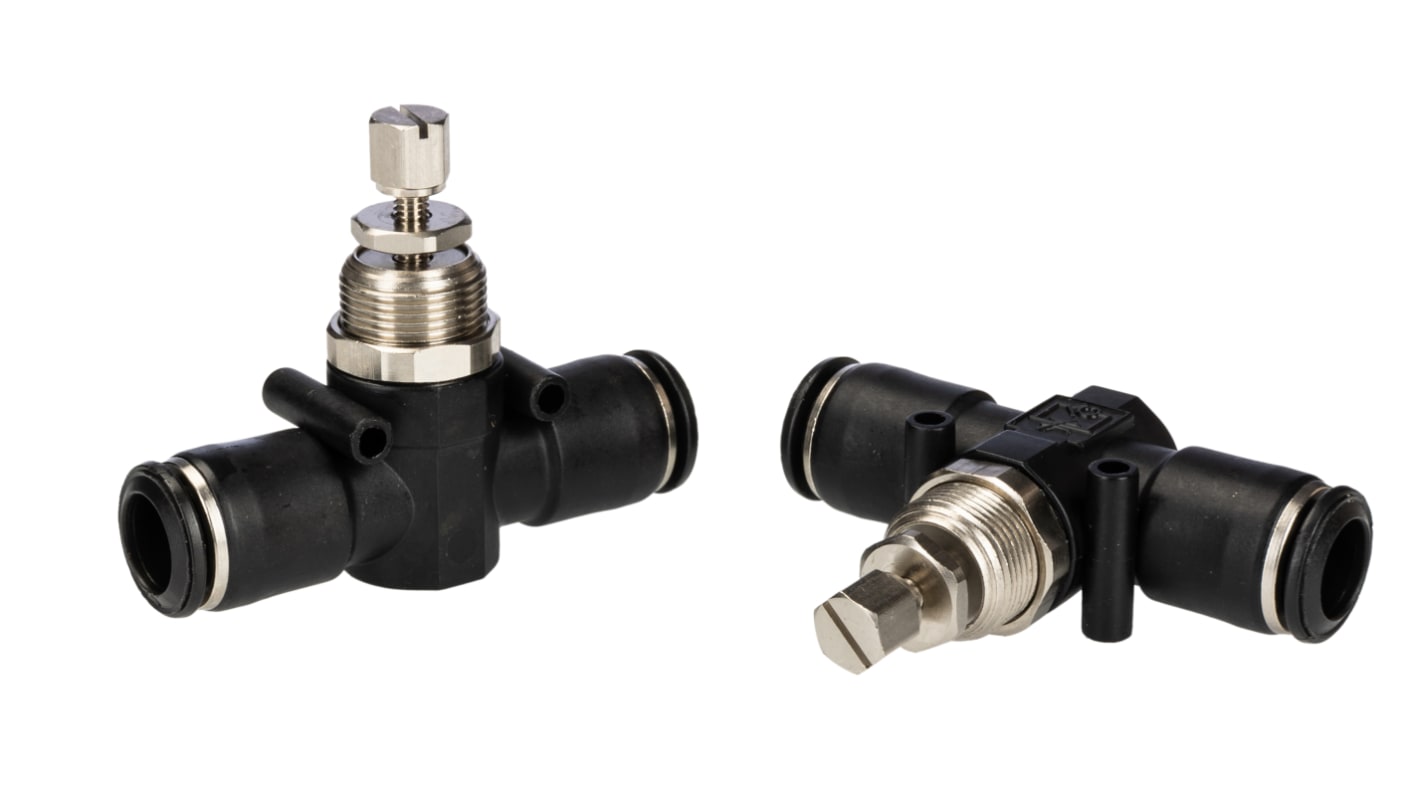

RS PRO Flow Regulator, Push-in 10 mm Tube Inlet Port x Push-in 10 mm Tube Outlet Port
Use these RS PRO restrictor valves to control the flow of compressed air or fluids in your pneumatic system. You can also use this type of component in garage equipment, production line machinery and water treatment systems. It's simple to increase or decrease the flow in your pneumatic system by adjusting the knob on top of the valve.
These restrictor valves come with two push-in connectors for a simple, leak-free fit and have two moulded screw holes for easy wall mounting. They're suitable for everything from automotive processes to food and beverage production. As these valves are silicone-free, you can use them with fluids such as paints and inks without risk of contamination.
These regulators have a durable body formed of a technopolymer material. Their sleeves, locking nuts and nipples are made of nickel-plated brass for corrosion resistance and low friction. The O-ring and lip-ring seals are built from nitrile butadiene rubber (NBR) that's resistant to oil, water and alcohol, so you can rest assured they'll last.
These restrictor valves come with two push-in connectors for a simple, leak-free fit and have two moulded screw holes for easy wall mounting. They're suitable for everything from automotive processes to food and beverage production. As these valves are silicone-free, you can use them with fluids such as paints and inks without risk of contamination.
These regulators have a durable body formed of a technopolymer material. Their sleeves, locking nuts and nipples are made of nickel-plated brass for corrosion resistance and low friction. The O-ring and lip-ring seals are built from nitrile butadiene rubber (NBR) that's resistant to oil, water and alcohol, so you can rest assured they'll last.
Features and Benefits
• Maximum outlet pressure of 10 bar
• Minimum outlet pressure of 1 bar
• Push-in 10 mm tube inlet port
• Push-in 10 mm tube outlet port
• Flow controller type
• Minimum outlet pressure of 1 bar
• Push-in 10 mm tube inlet port
• Push-in 10 mm tube outlet port
• Flow controller type
Specifikationer
Attribute | Value |
---|---|
Type | Flow Controller |
Inlet Port Type | Tube |
Tube Inlet Port | Push In 10mm |
Tube Outlet Port | Push In 10 mm |
Outlet Port Type | Tube |
Minimum Outlet Pressure | 1bar |
Maximum Outlet Pressure | 10bar |
