Produktdetaljer

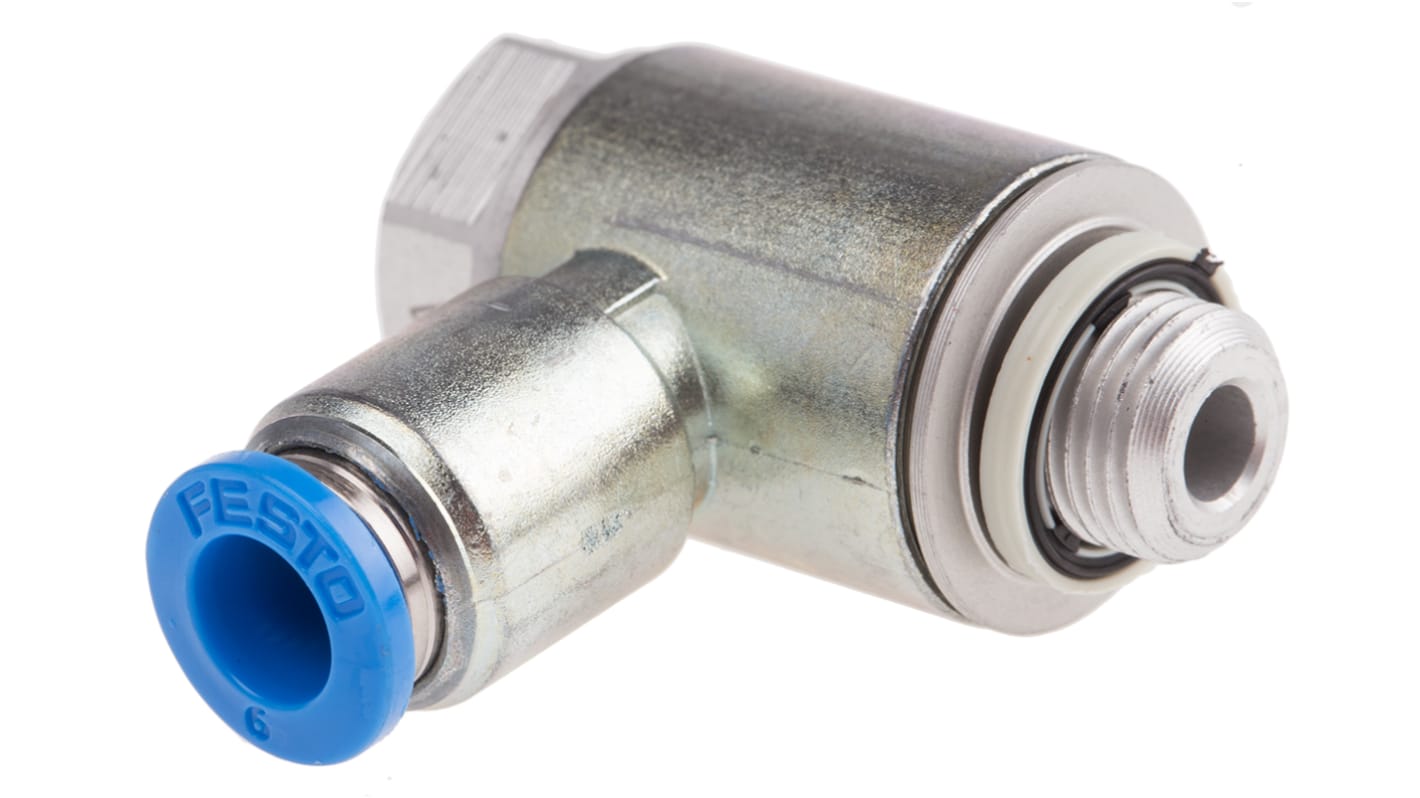

Festo Exhaust Valve, One-Way Flow Control Type, 10 Bar Maximum Operating Pressure - GRLA-1/8-QS-6-MF-D
When you need a steadying hand on mechanical motions, turn to this exhaust valve from Festo. It fits neatly into standard pneumatic systems thanks to a G1/8 threaded outlet port and a 6mm push-in tube inlet port. As it's designed with a one-way flow control function, you can use this valve to reliably regulate piston speeds. It handles harsh industrial conditions without breaking a sweat as it has a broad operating temperature range between -10°C and +60°C. Need to tweak flow rate and speed? Simply use a slotted-head screwdriver to make manual adjustments in a snap.
Features & Benefits
• Maximum operating pressure of 10 bar for reliable performance in demanding systems
• Standard nominal flow rate of 400L/min makes it suitable for high-speed piston drivers
• Nominal tightening torque of 3Nm means it's a sturdy choice
• Aluminium alloy body and brass adjusting screw resist corrosion for a long product life
• Push-in QS fittings make mounting a breeze
• Standard nominal flow rate of 400L/min makes it suitable for high-speed piston drivers
• Nominal tightening torque of 3Nm means it's a sturdy choice
• Aluminium alloy body and brass adjusting screw resist corrosion for a long product life
• Push-in QS fittings make mounting a breeze
Applications
• Agricultural equipment
• Pharmaceutical industry
• Medical laboratories
• Robotics engineering
• Pharmaceutical industry
• Medical laboratories
• Robotics engineering
How much does this exhaust valve weigh?
Weighing in at just 32g, this unit puts minimal strain on your pneumatic system.
Flow Regulators & Restrictors - Festo
Specifikationer
Attribute | Value |
---|---|
Type | Flow Controller |
Inlet Port Type | Tube |
Tube Inlet Port | 6mm |
Manufacturer Series | GRLA |
Outlet Port Type | Threaded |
Threaded Outlet Port | G 1/8 |
Minimum Outlet Pressure | 0.2bar |
Maximum Outlet Pressure | 10bar |
Threaded Outlet Thread Standard | G |
Threaded Outlet Thread Gender | Male |
Threaded Outlet Thread Size | 1/8 in |
Body Material | Aluminium Alloy |
Model Number p | 537075 |
Standards Met | RoHS Compliant |
