Hitta liknande produkter genom att välja ett eller flera attribut.

Välj alla	Attribut	Värde
	Brand	onsemi
	Channel Type	Type N
	Product Type	MOSFET
	Maximum Continuous Drain Current Id	75A
	Maximum Drain Source Voltage Vds	650V
	Series	NTHL
	Package Type	TO-247
	Mount Type	Through Hole
	Pin Count	3
	Maximum Drain Source Resistance Rds	19.3mΩ
	Channel Mode	Enhancement
	Typical Gate Charge Qg @ Vgs	282nC
	Forward Voltage Vf	1.2V
	Minimum Operating Temperature	-55°C
	Maximum Gate Source Voltage Vgs	30 V
	Maximum Power Dissipation Pd	625W
	Maximum Operating Temperature	150°C
	Length	15.9mm
	Standards/Approvals	No
	Height	5.1mm
	Width	21.1 mm
	Automotive Standard	No

	Välj alla
	Brand onsemi
	Channel Type Type N
	Product Type MOSFET
	Maximum Continuous Drain Current Id 75A
	Maximum Drain Source Voltage Vds 650V
	Series NTHL
	Package Type TO-247
	Mount Type Through Hole
	Pin Count 3
	Maximum Drain Source Resistance Rds 19.3mΩ
	Channel Mode Enhancement
	Typical Gate Charge Qg @ Vgs 282nC
	Forward Voltage Vf 1.2V
	Minimum Operating Temperature -55°C
	Maximum Gate Source Voltage Vgs 30 V
	Maximum Power Dissipation Pd 625W
	Maximum Operating Temperature 150°C
	Length 15.9mm
	Standards/Approvals No
	Height 5.1mm
	Width 21.1 mm
	Automotive Standard No

Datasheet - NTHL019N65S3H

The ON Semiconductor MOSFET is brand−new high voltage super−junction MOSFET family that is utilizing charge balance technology for outstanding low on-resistance and lower gate charge performance. This advanced technology is tailored to minimize conduction loss, provides superior switching performance, and withstand extreme dv/dt rate.

Pb−Free

RoHS compliant

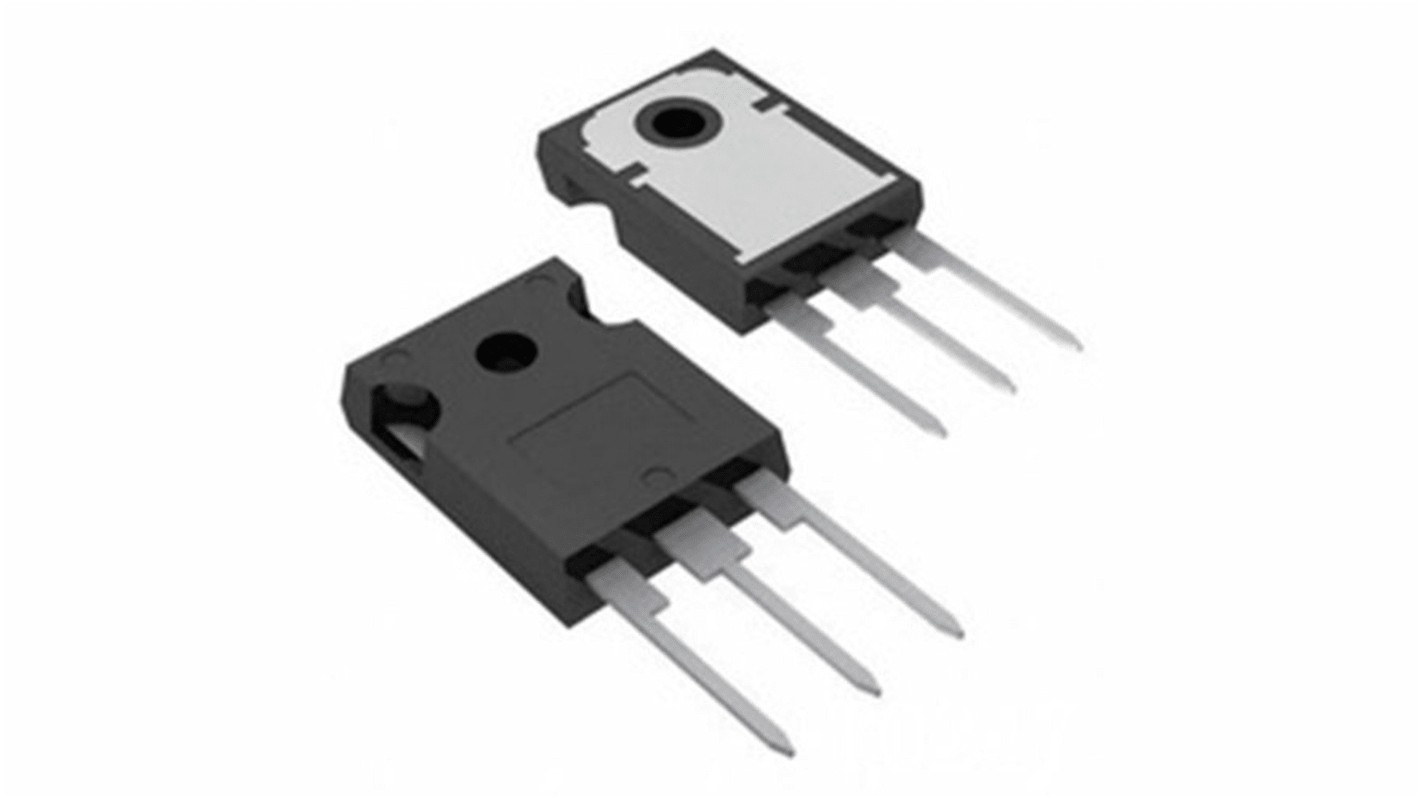

onsemi NTHL Type N-Channel MOSFET, 75 A, 650 V Enhancement, 3-Pin TO-247 NTHL019N65S3H
