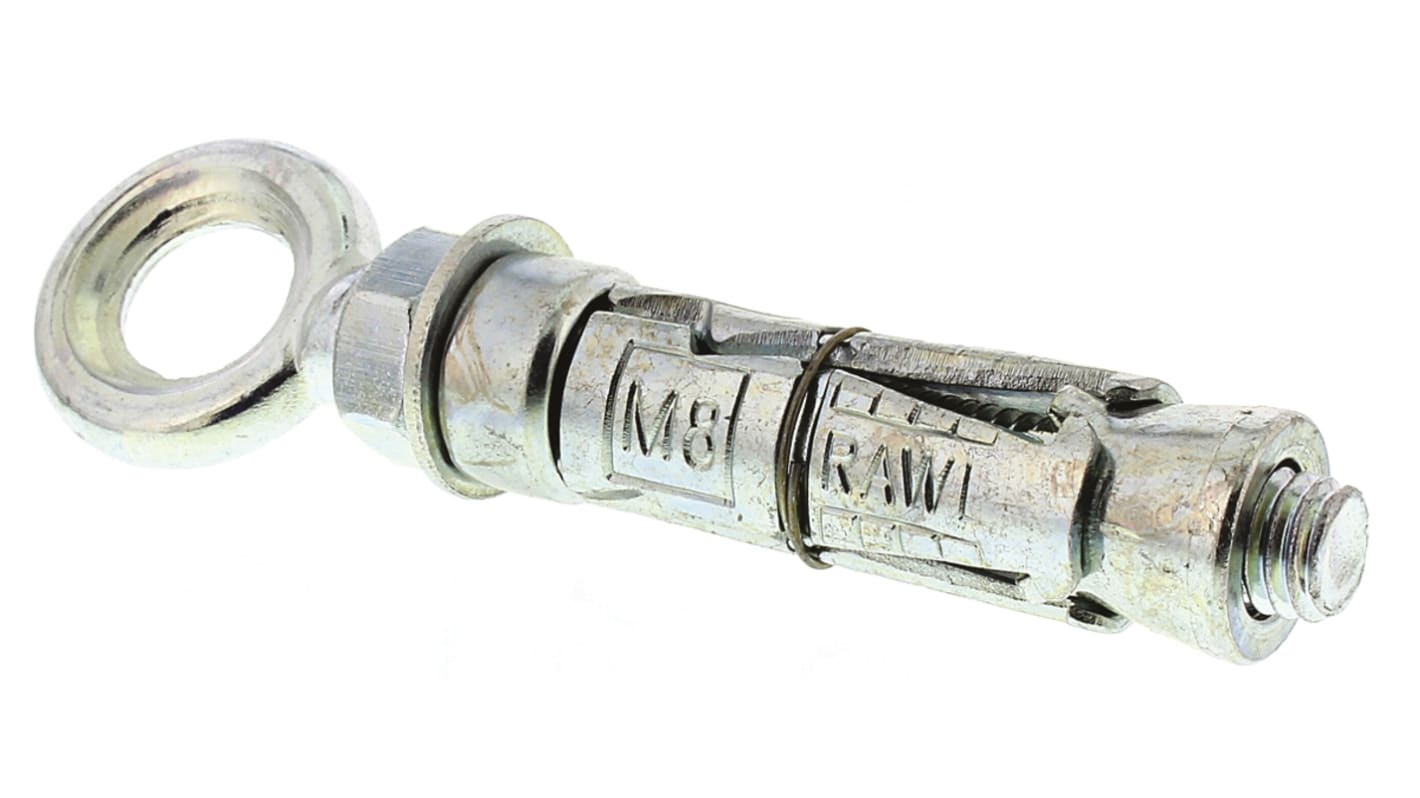

RawlPlug Steel Masonry Anchor M8 x 98mm, 14mm Fixing Hole

RS-artikelnummer:: 528-233
Tillv. art.nr:: R-RBL-08EW
Tillverkare / varumärke:: RawlPlug

RawlPlug Steel Masonry Anchor M8 x 98mm, 14mm Fixing Hole

Price Var (i ett paket med 10)*

62,94 kr

(exkl. moms)

78,68 kr

(inkl. moms)

GRATIS leverans för beställningar över 500,00 kr

I lager

240 enhet(er) är redo att levereras
Plus 20 enhet(er) är redo att levereras från en annan plats

Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"

Enheter	Per enhet	Per förpackning*
10 +	62,94 kr	629,40 kr

*vägledande pris

RS-artikelnummer:: 528-233
Tillv. art.nr:: R-RBL-08EW
Tillverkare / varumärke:: RawlPlug

RawlPlug R-RBL-E Rawlbolt™ All Purpose Shield Anchor Plug Eye Bolt.

From RawlPlug this is the R-RBL-E Rawlbolt shield anchor eye bolt plug, one of RawlPlug’s most sought after all purpose expanding shield anchors. The R-RBL-E Rawlbolt is the eye bolt version, the original single piece cold formed eye bolt closed forged hook with excellent durability and safety. The expanding sleeve is made up of 3-pieces providing excellent expansion and optimum load safety for any material.

Features and Benefits.

R-RBL-E Rawlbolt Expanding Eye Bolt Plug.

Shield anchor.

Expanding.

Single piece cold formed.

Excellent durability.

3-Piece expanding sleeve.

Optimal load and safety capacity.

Used in any material.

Closed forged hook (maximum safety).

Suitable for permanent and temporary anchoring.

Safety Note: Eye Rawlbolts and not suitable for all Arrest Systems or shock loading.

Typical Shield Anchor Eye Bolt Fixings Applications.

Supporting ladder restraints.

Supporting Guy ropes, stays and cables.

Material the R-RBL-E Rawlbolt Eye Bolts are Compatible with?

Approved for use in:

Cracked concrete C20/25-C50/60.

Non-Cracked concrete C20/25-C50/60.

Unreinforced concrete.

Reinforced concrete.

Solid clay brick ≥ 20MPa.

Hollow lightweight concrete block LAC 5 ≥ 5MPa.

Hollow sand lime brick ≥ 15MPa.

Hollow core slab C20/25.

Hollow core slab C30/37-C50/60.

R-RBL-E Rawlbolt Expansion Eye and Hook Bolts Fixings Available?

Stock number 528227, M6, Shield anchor Eye Bolt, 12 mm x 83 mm.

Stock number 528205, M6, Shield anchor Hook Bolt, 12 mm x 83 mm.

Stock number 528233, M8, Shield anchor Eye Bolt, 14 mm x 98 mm.

Stock number 528211, M8, Shield anchor Hook Bolt, 14 mm x 98 mm.

Stock number 6816738, M10, Shield anchor Eye Bolt, 16 mm x 120 mm.

Stock number 6816735, M10, Shield anchor Hook Bolt, 16 mm x 120 mm.

Stock number 6816731, M12, Shield anchor Eye Bolt, 20 mm x 145 mm.

Stock number 6816744, M12, Shield anchor Hook Bolt, 20 mm x 145 mm.

How to use the R-RBL-E Rawlbolt Expansion Eye Bolts?

Drill a hole (have pre-drilled hole ready) ensure that it is the correct diameter and depth needed.

Special note: If fixing into brickwork avoid all mortar joint areas.

Clean out the drilled hole removing all debris and dust (important to thoroughly remove everything, use a blowpump).

Insert the anchor into the pre-drilled hole till it is flush with the surface then position the eye as required.

Tighten the fixing carefully, only to the recommended torque using the Hex but and not the eye.

Attribute	Value
Thread Size	M8
Type	Shield Anchor Eye Bolt
Length	98mm
Fixing Hole Diameter	14mm
Material	Steel
Eye Inside Diameter	12mm
