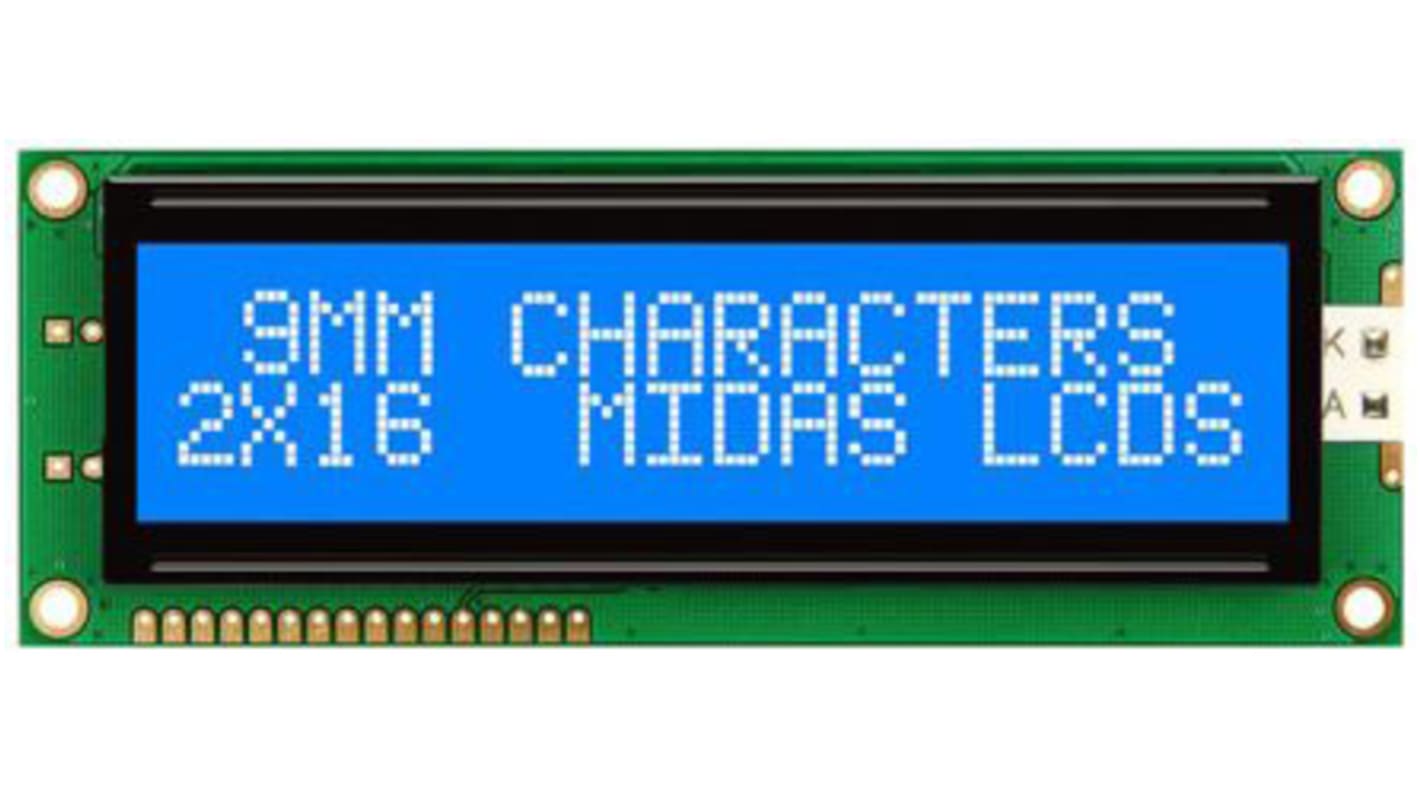

Midas MC21609AB6W-BNMLW-V2 AB Alphanumeric LCD Display, Blue on White, 2 Rows by 16 Characters, Transmissive
- RS-artikelnummer:
- 135-9762
- Tillv. art.nr:
- MC21609AB6W-BNMLW-V2
- Tillverkare / varumärke:
- Midas
Det är tyvärr inte möjligt att visa lagerbehållning för närvarande. Uppdatera sidan och försök igen.
Nästa dag-leverans inte möjlig
Lagt till varukorgen
Pris (ex. moms) Varje
188,64 kr
(exkl. moms)
235,80 kr
(inkl. moms)
| Enheter | Per unit |
| 1 - 4 | 188,64 kr |
| 5 - 9 | 169,68 kr |
| 10 + | 160,25 kr |
- RS-artikelnummer:
- 135-9762
- Tillv. art.nr:
- MC21609AB6W-BNMLW-V2
- Tillverkare / varumärke:
- Midas
Datablad
Lagstiftning och ursprungsland
- COO (Country of Origin):
- CN
Produktdetaljer
Midas Character COB LCD Displays
This series of character LCD displays, from Midas Displays, have chip-on-board (COB) mechanical construction. The LCD displays are available in 16, 20 and 40 character options with super twisted nematic (STN) or film compensated super twisted nematic (FSTN) technologies. Alternative appearances are created with positive and negative modes available in the COB LCD displays. The majority of character LCD controllers come with conventional interface equivalent to HD44780 and include standard on board character sets. In order to meet the demands of customer applications the COB LCD displays are available with a viewing angle of 6 o'clock.
Chip-on-board (COB) LCD display
Parallel interface
Operational temperature -20 to +70 °C
STN and FSTN display options
Parallel interface
Operational temperature -20 to +70 °C
STN and FSTN display options
Midas Alphanumeric Displays
Specifikationer
Attribute | Value |
|---|---|
| Display Type | Alphanumeric |
| Character Matrix | 2 Rows by 16 Characters |
| Characters per Row | 16 |
| Character Rows | 2 |
| Character Height | 5.2mm |
| Character Width | 3mm |
| Viewing Area Dimensions | 66 x 16mm |
| Viewing Area Height | 16.4mm |
| Viewing Area Width | 64.5mm |
| Interface Type | 8-bit |
| External Depth | 13.5mm |
| Illumination Colour | Blue |
| Backlight Type | LED |
| Background Colour | White |
| External Dimensions | 84 x 13.5 x 44mm |
| External Width | 84mm |
| External Height | 44mm |
| Display Mode | Transmissive |
| Display Matrix Technology | STN |
| Maximum Operating Temperature | +70°C |
| Voltage Rating | 4.7 → 5.5V |
| Minimum Operating Temperature | -20°C |
| Current Rating | 1.5mA |
| Operating Temperature Range | -20 → +70°C |
| Series | AB |
| Driver Mounting | COB |
