RS PRO Blue 16 mm² Hook Up Wire, 7/1.7 mm, 100m
- RS-artikelnummer:
- 185-3959
- Tillverkare / varumärke:
- RS PRO
Tillfälligt slut i lager – restorder för leverans 2024-06-28
Lagt till varukorgen
Pris (ex. moms) 1 rulle med 100 meter
5 773,34 kr
(exkl. moms)
7 216,68 kr
(inkl. moms)
| Rulle(ar) | Per Reel | Per Metre* |
| 1 + | 5 773,34 kr | 57,733 kr |
Alternativ
Denna produkt är för närvarande inte tillgänglig. Vi rekommenderar denna produkt istället.
- RS-artikelnummer
- 185-3958
Pris (ex. moms) 1 rulle med 50 meter
2 901,14 kr
(exkl. moms)
3 626,42 kr
(inkl. moms)
- RS-artikelnummer:
- 185-3959
- Tillverkare / varumärke:
- RS PRO
Lagstiftning och ursprungsland
- COO (Country of Origin):
- GB
Produktdetaljer

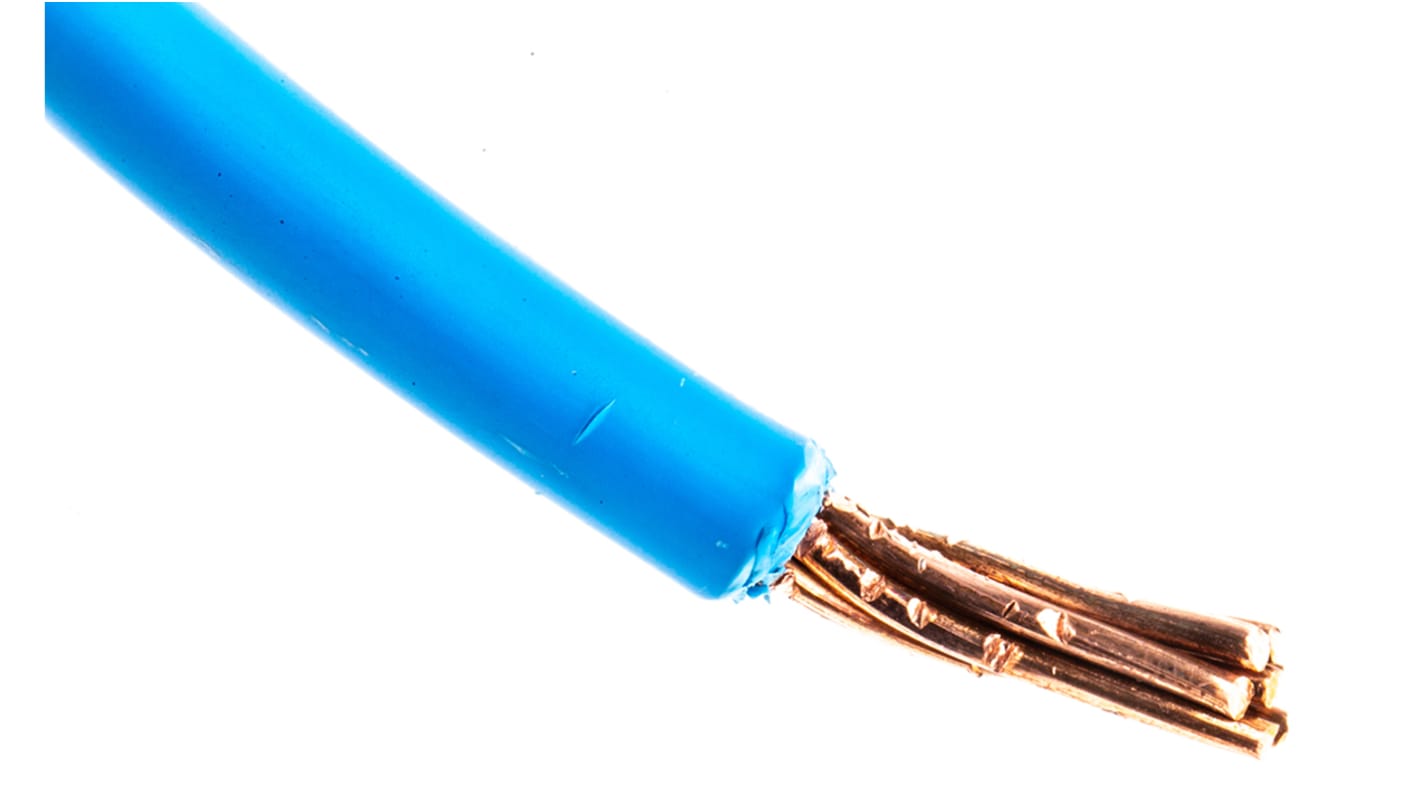

RS PRO Single Core Cable
The RS PRO 100m low smoke non-halogen (LSNH) thermosetting insulated single-core cable has a plain annealed copper conductor with a nominal cross-sectional area of 16mm². The HO7Z-R harmonised blue coloured cable has a voltage rating of 450VDC and 750VAC. It is designed to be used in installations where smoke and acid gas emission would pose a major hazard in the event of a fire. The cable is intended for installation in surface mount or embedded conduits, or similar closed systems. This cable is suitable for use in channels with cover.
Features and Benefits
• Operating temperature ranges between -15°C and 90°C
• Low smoke non halogen insulation
• Insulation wall thickness: 1mm
• Strand size: 1.70mm
• Overall diameter ranges between 6.4mm and 8mm
• Number of strands: 7
• Low smoke non halogen insulation
• Insulation wall thickness: 1mm
• Strand size: 1.70mm
• Overall diameter ranges between 6.4mm and 8mm
• Number of strands: 7
Applications
• Switchgear
• Controlgear
• Fixed protection installation
• Controlgear
• Fixed protection installation
Certifications
• BS EN 60228
• BS EN 50363-5
• BS EN 50525-3-41:2011
• BS EN 50363-5
• BS EN 50525-3-41:2011
Specifikationer
Attribute | Value |
|---|---|
| Cross Sectional Area | 16 mm² |
| Sheath Colour | Blue |
| Cable Shape | Single Core |
| Core Strands | 7/1.7 mm |
| Length | 100m |
| European Harmonised Code | H07V-R |
| Outer Diameter | 8mm |
| Voltage Rating | 450 V dc, 750 V ac |
| CPR Certification | Dca |
| Cable Type | Conduit |
| Series | 6491B |
| Insulation Wall Thickness | 1mm |
| Number of Strands | 7 |
| Outer Sheath Material | LSZH |
| Size of Strands | 1.7 mm |
