RS PRO Green/Yellow 16mm² Hook Up Wire, 7/1.7 mm, 50m, LSNH EI5 Insulation

Se alla Hook Up Wire

Antal (1 rulle med 50 meter)*

3 573,16 kr

(exkl. moms)

4 466,45 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • Dessutom levereras 1 enhet(er) från den 29 december 2025
  • Dessutom levereras 3 enhet(er) från den 29 december 2025
  • Dessutom levereras 14 enhet(er) från den 13 januari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Rulle(ar)
Per rulle
Per meter*
1 +3 573,16 kr71,463 kr

*vägledande pris

RS-artikelnummer:
185-3955
Tillverkare / varumärke:
RS PRO
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

RS PRO

Cross Sectional Area

16mm²

Sheath Colour

Green/Yellow

Cable Shape

Single Core

Core Strands

7/1.7 mm

Length

50m

Insulation Material

LSNH EI5

European Harmonised Code

H07V-R

Voltage Rating

450 V dc, 750 V ac

Outer Diameter

8mm

CPR Certification

Dca

Maximum Operating Temperature

90°C

Minimum Operating Temperature

-15°C

Conductor Material

Copper

Cable Type

Conduit

Standards Met

BS EN 50525-3-41:2011 Clause 4.1

Series

6491B

Insulation Wall Thickness

1mm

Harmonised Code

H07Z-R

Number of Strands

7

Outer Sheath Material

LSZH

Size of Strands

1.7mm

COO (Country of Origin):
GB

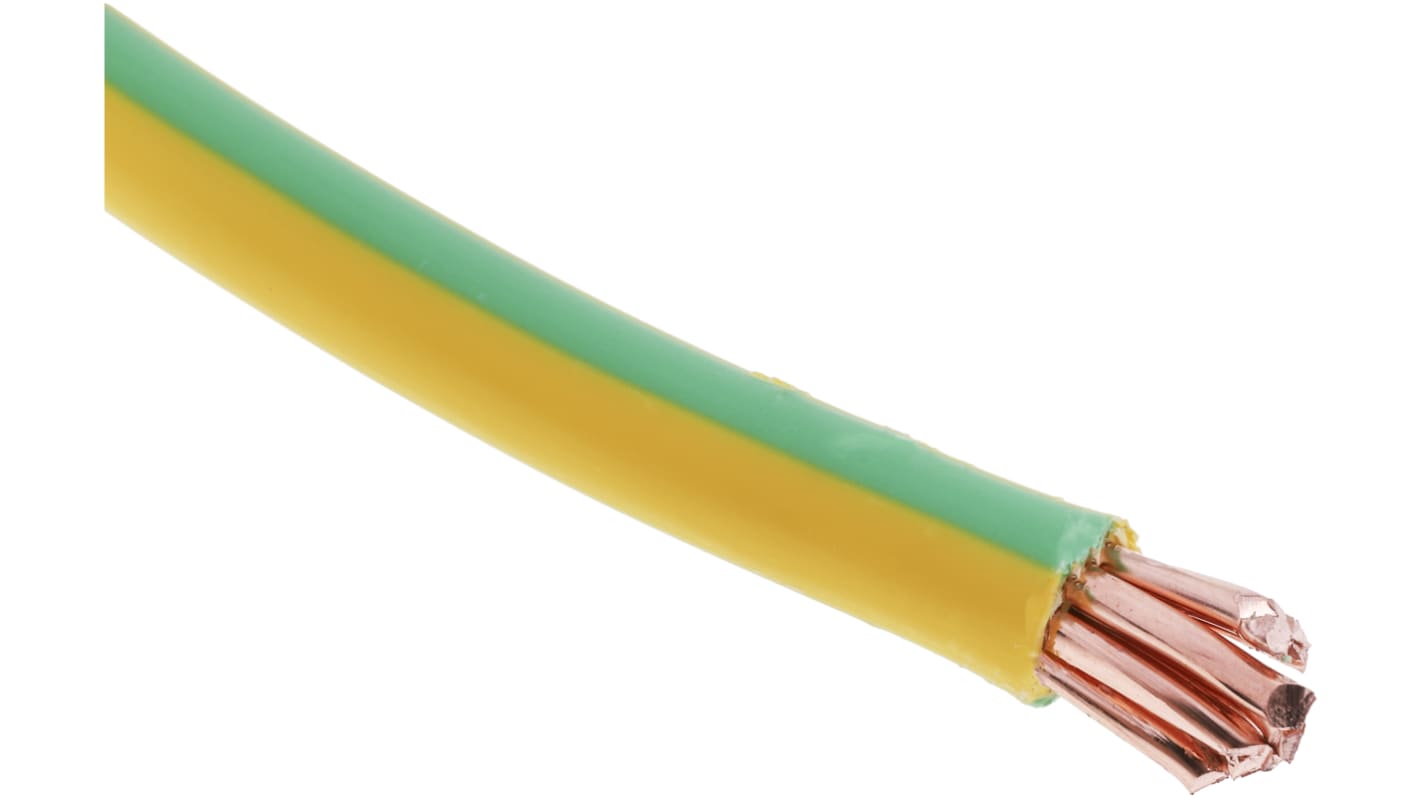

RS PRO Single-Core LSZH HO7Z-R Conduit and Trunking Cable, Green/Yellow, 16 mm² CSA, 450 V DC, 750 V AC, 50 m


This conduit cable from RS PRO has a low smoke zero halogen (LSZH) outer sheath. This means it won't release toxic fumes or excess smoke in the event of fire, making it suitable for use in public spaces like houses or offices.
The yellow and green sheath colour makes this cable easily identifiable as an earth connector. The wire has both AC and DC voltage ratings, so you can use it either as part of a building's wiring for mains or lighting or as an earth bond for equipment that utilises direct current.
The cable has a 16 mm² cross-sectional area (CSA), but the multi-core design ensures you can still bend it around corners. It comes in a 50 m reel for easy deployment.

Features and Benefits


• Single-core cable type
• 6491B wire type (single-core, stranded wire for conduits and fixed connections)
• Core strand size of 1.7 mm
• Cross-sectional area of 16 mm²
• Meets H07Z-R harmonised code for wires suitable for use in public spaces
• Insulation wall thickness of 1 mm
• Length of 50 m
• Seven strands
• Outer diameter of 8 mm
• Low smoke zero halogen (LSZH) outer sheath material
• Green/yellow sheath colour
• Voltage rating of 450 V DC, 750 V AC
