RS PRO Green/Yellow 16mm² Hook Up Wire, 7/1.7 mm, 100m, LSNH EI5 Insulation

Se alla Hook Up Wire

Antal (1 rulle med 100 meter)*

7 881,22 kr

(exkl. moms)

9 851,52 kr

(inkl. moms)

Add to Basket
välj eller skriv kvantitet
I lager
  • Dessutom levereras 3 enhet(er) från den 19 januari 2026
  • Dessutom levereras 10 enhet(er) från den 10 februari 2026
  • Dessutom levereras 20 enhet(er) från den 17 februari 2026
Behöver du mer? Ange den kvantitet du behöver och klicka på "Kontrollera leveransdatum"
Rulle(ar)
Per rulle
Per meter*
1 +7 881,22 kr78,812 kr

*vägledande pris

RS-artikelnummer:
185-3957
Tillverkare / varumärke:
RS PRO
Hitta liknande produkter genom att välja ett eller flera attribut.
Välj alla

Brand

RS PRO

Cross Sectional Area

16mm²

Sheath Colour

Green/Yellow

Cable Shape

Single Core

Core Strands

7/1.7 mm

Length

100m

Insulation Material

LSNH EI5

European Harmonised Code

H07V-R

Outer Diameter

8mm

Voltage Rating

450 V dc, 750 V ac

Minimum Operating Temperature

-15°C

Maximum Operating Temperature

90°C

CPR Certification

Dca

Conductor Material

Copper

Standards Met

BS EN 50525-3-41:2011 Clause 4.1

Cable Type

Conduit

Series

6491B

Harmonised Code

H07Z-R

Insulation Wall Thickness

1mm

Number of Strands

7

Outer Sheath Material

LSZH

Size of Strands

1.7mm

COO (Country of Origin):
GB

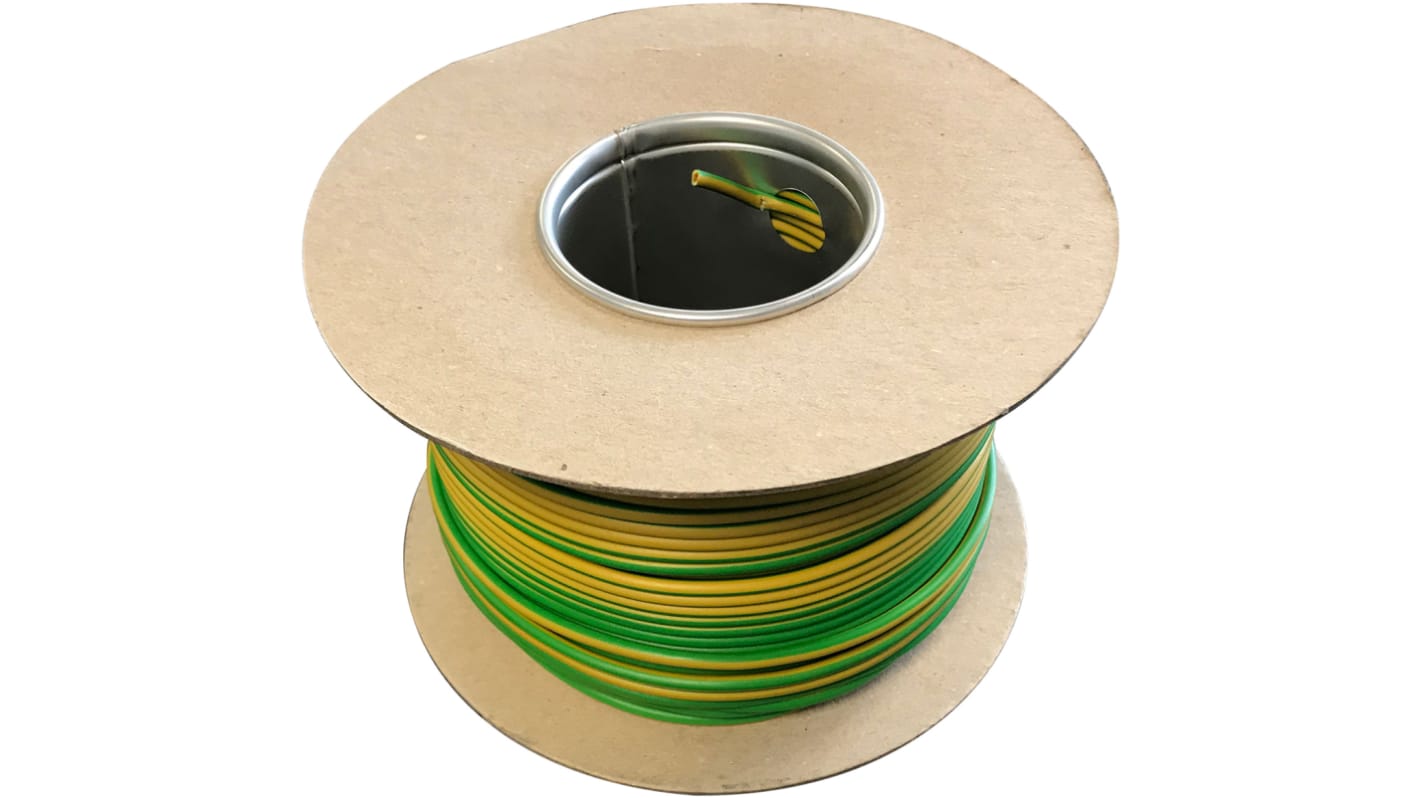

RS PRO Single-Core LSZH HO7Z-R Conduit and Trunking Cable, Green/Yellow, 16 mm² CSA, 450 V DC, 750 V AC, 100 m


If you need a safe option for wiring domestic or commercial building, choose this trunking cable from RS PRO. It has a low smoke zero halogen (LSZH) sheath, meaning it won't produce toxic fumes or smoke during a fire.
This cable is designed for both surface-mounted and embedded conduits and is intended for closed systems, such as channels with cover. The yellow/green sheath identifies it as an earth connection.
The multi-strand design makes it easier to bend the cable around corners. The 750 V AC voltage rating means you can safely use it with mains electricity, for example in lighting. The wire is also rated for DC voltage, so you can use it in devices that rely on direct current.

Features and Benefits


• Single-core cable type
• 6491B wire type (single-core, stranded wire for conduits and fixed connections)
• Core strand size of 1.7 mm
• Cross-sectional area of 16 mm²
• Meets H07Z-R harmonised code for wires suitable for use in public spaces
• Insulation wall thickness of 1 mm
• Length of 100 m
• Seven strands
• Outer diameter of 8 mm
• Low smoke zero halogen (LSZH) outer sheath material
• Green/yellow sheath colour
• Voltage rating of 450 V DC, 750 V AC
