RS PRO Plug-in Jumper for Use with Terminal Block, 25A

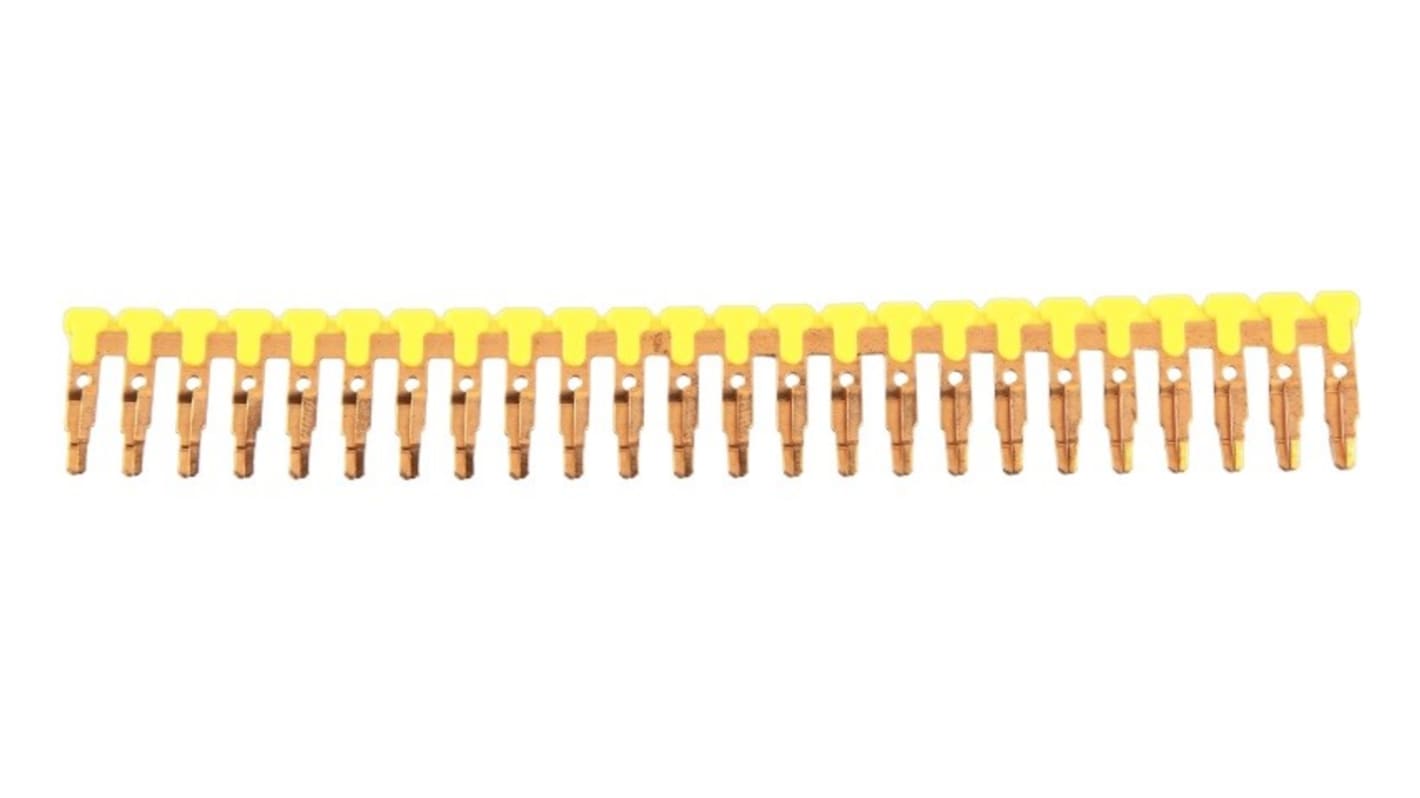

A plug in jumper bar for use with RS PRO 3 stage terminal blocks enabling quick and permanent connections between multiple terminal blocks.
An insulated design with PA 66 Nylon a V-0 flame retardancy rating providing protection against spread of fires. The jumper bar is built with a Copper Alloy jumper bar for excellent conductivity and is suitable for use with 10 AWG terminal blocks.

Plug in jumper bar
24 Pole
Copper Alloy bar
PA 66 insulated (V-0)
Pitch 6.1mm
Length 145.3mm
Width 3mm
Weight 9.8g

262-4152 Screwless Single Level Terminal Block - Grey
262-4154 Screwless Single Level Terminal Block - Blue
242-0486 Screw Single Level Terminal Block - Grey
242-0487 Screw Single Level Terminal Block - Black
242-0488 Screw Single Level Terminal Block - Blue
242-0489 Screw Single Level Terminal Block - Brown
242-0491 Screw Single Level Terminal Block - Yellow
242-0492 Screw Single Level Terminal Block - Orange
242-0493 Screw Single Level Terminal Block - Red
242-0494 Screw Single Level Terminal Block - White
262-4212 TH15 Screw Single Level Terminal Block - Grey
262-4213 TH15 Screw Single Level Terminal Block - Blue
242-0525 Two Stage Terminal Block - Grey
242-0526 Two Stage Terminal Block - Blue
242-0527 Two Stage Cross Connected Terminal Block - Grey
242-0528 Two Stage Cross Connected Terminal Block - Blue
262-4338 1000V Screwless Single Level Terminal Block - Grey
262-4339 1000V Screwless Single Level Terminal Block - Blue
262-4351 1000V Screwless Additional Pole Terminal Block - Grey
262-4352 1000V Screwless Additional Pole Terminal Block - Blue
262-4376 1000V Screw Single Level Terminal Block - Grey
262-4378 1000V Screw Single Level Terminal Block - Blue
262-4389 1000V Screw Additional Pole Terminal Block - Grey
262-4390 1000V Screw Additional Pole Terminal Block - Blue

262-4228 Jumper Bar Ratchet Cutter
