    SolaHD SDN-C DIN Rail Power Supply, 85 → 264V ac ac, dc Input, 24V dc dc Output, 20A Output, 480W

    RS-artikelnummer:
    891-3317
    Tillv. art.nr:
    SDN20-24-100C
    Tillverkare / varumärke:
    SolaHD
    SolaHD
    Se alla DIN Rail Power Supplies
    5 I lager för avsändande samma dag
    Add to Basket
    Enheter

    Lagt till varukorgen

    Pris (ex. moms) Each

    8 858,47 kr

    (exkl. moms)

    11 073,09 kr

    (inkl. moms)

    EnheterPer unit
    1 +8 858,47 kr
    RS-artikelnummer:
    891-3317
    Tillv. art.nr:
    SDN20-24-100C
    Tillverkare / varumärke:
    SolaHD

    Ej tillämpbart

    COO (Country of Origin):
    PH

    Datablad


    Lagstiftning och ursprungsland

    Ej tillämpbart

    COO (Country of Origin):
    PH

    Produktdetaljer

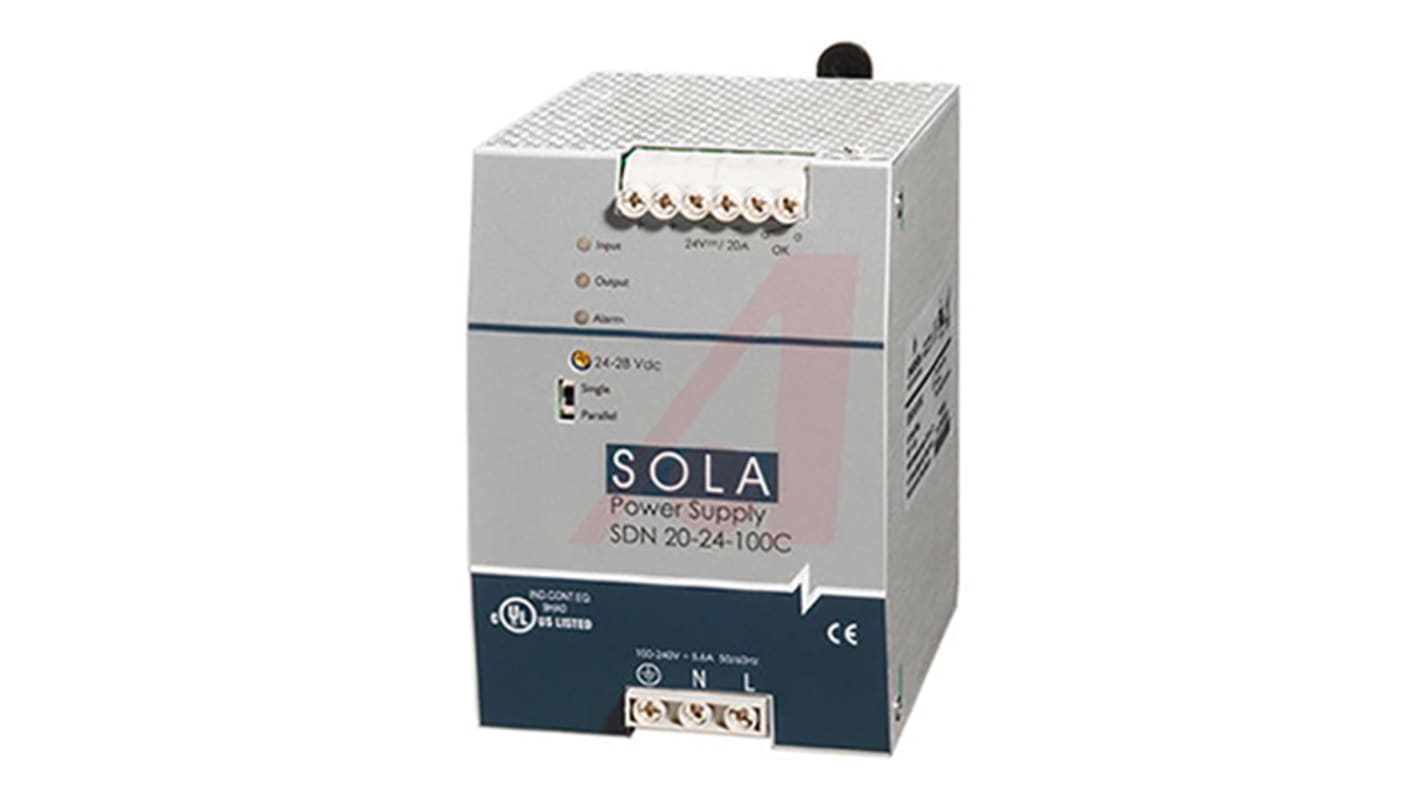

    SolaHD DIN Rail Power Supply


    The SolaHD SDN-C series DIN rail power supply has a universal input voltage ranging between 85VAC to 264VAC and 90VDC to 375VDC with a built-in passive PFC function. It is equipped with sag immunity, power factor correction, high efficiency and high MTFB. The rated output current is 20A at 24VDC output voltage.

    Features and Benefits


    Cooling by free air convection
    DC output voltage adjustable
    High efficiency up to 92%
    Highly efficient switching technology
    LED indicator for power ON
    Operation temperature ranging between -30°C and 70°C
    Power rating is up to 480W
    Ripple factor and noise is 100mV
    Short circuit and overvoltage protection

    Applications


    Amusement park equipment
    Conveying equipment
    Industrial/Machine control
    Material handling
    Packaging equipment
    Process control
    Semiconductor fabrication equipment
    Vending machines

    Certifications


    ATEX
    CE certified
    CRUus
    CULus
    IECEx


    Specifikationer

    AttributeValue
    AC or DC Input Voltageac, dc
    AC or DC Output Voltagedc
    Input Voltage85 → 264V ac
    Output Voltage24V dc
    Output Current20A
    Power Rating480W
    Number of Outputs1
    Electrical Phase1
    Height123mm
    Depth127mm
    Width127mm
    Mounting TypeDIN Rail Mount
    SeriesSDN-C
    Standards MetATEX, CE, cRUus, cULus, IECEx, RoHS Compliant
    Minimum Temperature-25°C
    Special FeaturesActive Power Factor Correction, High MTBF Means High Reliability and Long Life, Highly Efficient Switching Technology
    MTBF>450000h
    Maximum Temperature+60°C
    Ripple And Noise<100mV Pk-Pk
