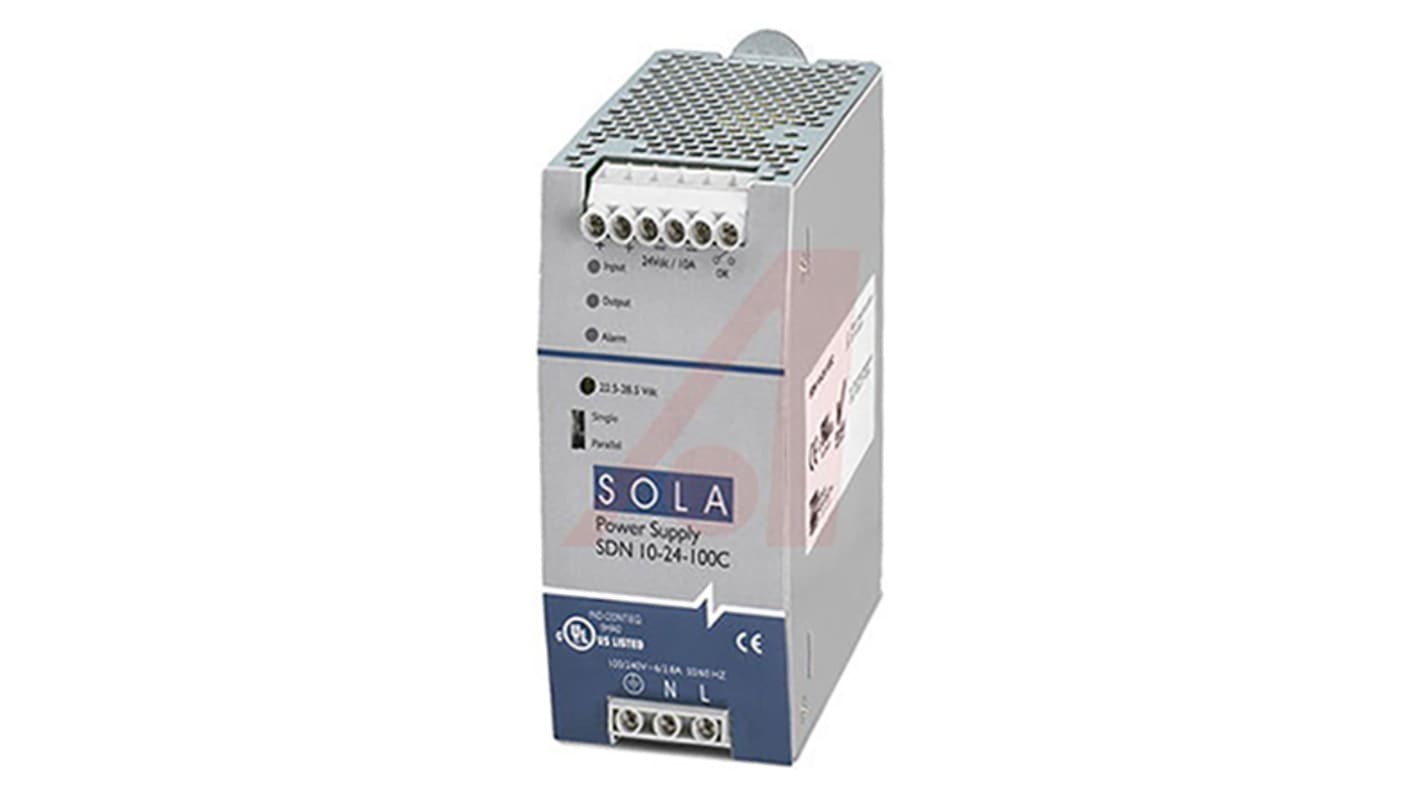

    SolaHD SDN-C DIN Rail Power Supply, 85 → 264V ac ac, dc Input, 24V dc dc Output, 10A Output, 240W

    RS-artikelnummer:
    890-8980
    Tillv. art.nr:
    SDN10-24-100C
    Tillverkare / varumärke:
    SolaHD
    SolaHD
    Se alla DIN Rail Power Supplies
    Tillfälligt slut i lager restorder för leverans 2023-02-21
    Add to Basket
    Enheter

    Lagt till varukorgen

    Pris (ex. moms) Each

    5 396,34 kr

    (exkl. moms)

    6 745,42 kr

    (inkl. moms)

    EnheterPer unit
    1 +5 396,34 kr
    RS-artikelnummer:
    890-8980
    Tillv. art.nr:
    SDN10-24-100C
    Tillverkare / varumärke:
    SolaHD
    COO (Country of Origin):
    PH

    Datablad


    Lagstiftning och ursprungsland

    COO (Country of Origin):
    PH

    Produktdetaljer

    Sola-HD Compact Power Supplies - SDN-C Series


    The SDN-C Series din rail power supplies is an all new compact version of the popular SDN series. Although they are in a much smaller package they still offer the same high efficiency with all new visual diagnostic LED’s. They still incorporate standard industrial features such as Sag Immunity, Power Factor Correction and universal voltage input making them suitable for various applications especially those where space is at a premium. This is further enhanced with a wide operating temperature range as well as parallel operation capabilities.

    Potential Applications:
    Industrial/Machine Control
    Process Control
    Conveying Equipment
    Material Handling
    Vending Machines
    Packaging Equipment
    Amusement Park Equipment
    Semi-Conductor Fabrication Equipment

    Compact packaging to save space on the DIN rail
    New visual diagnostic LEDs for input and output status at a glance
    Higher efficiency saves energy and lowers amount of heat generated in panel
    PowerBoost™ overload capability to start high inrush loads
    Accepts Universal voltage 85 - 264 Vac, 50/60 Hz input
    Single phase models meet SEMI F47 Sag Immunity
    Power Factor Correction (meets EN61000-3-2)
    Class 1 Zone 2 Hazardous Locations rating ATEX approval (pending)
    User Adjustable output voltage accessible via front face
    Parallel capability standard
    Industrial grade design
    -10 to +60°C operation without de-rating
    High MTBF means high reliability and long life
    RoHS compliant
    Available in 5 & 10A Single Phase
    Highly efficient switching technology


    Specifikationer

    AttributeValue
    AC or DC Input Voltageac, dc
    AC or DC Output Voltagedc
    Input Voltage85 → 264V ac
    Output Voltage24V dc
    Output Current10A
    Power Rating240W
    Number of Outputs1
    Electrical Phase1
    Height123mm
    Depth111mm
    Mounting TypeDIN Rail Mount
    SeriesSDN-C
    Standards MetATEX, CE, cRUus, cULus, IECEx, RoHS Compliant
    Width110mm
    Maximum Temperature+60°C
    Ripple And Noise<50mV Pk-Pk
    MTBF>550000h
    Special FeaturesActive Power Factor Correction, High MTBF Means High Reliability and Long Life, Highly Efficient Switching Technology
    Minimum Temperature-25°C
