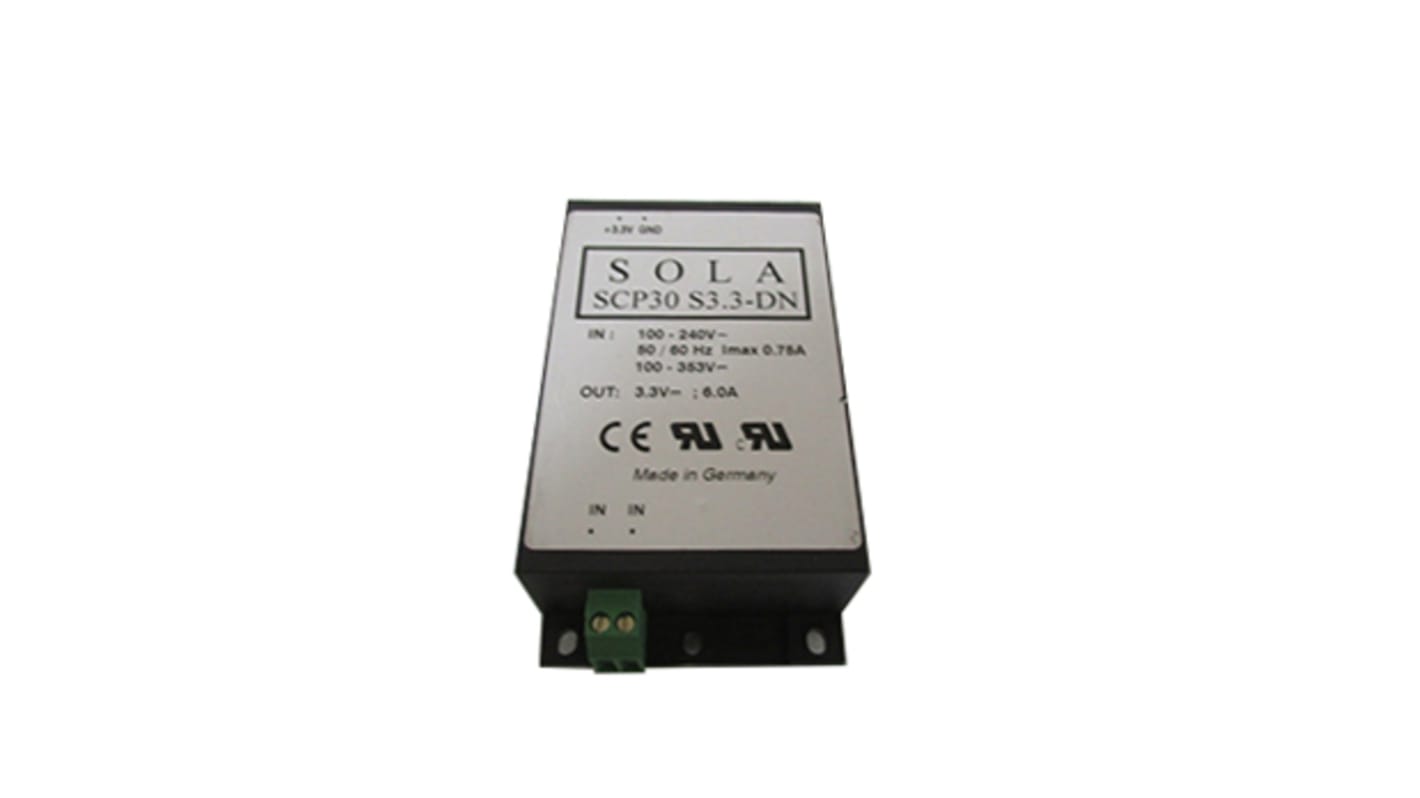

SolaHD SCP Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 100 → 375V dc ac, dc Input, 3.3V dc dc

RS-artikelnummer:: 890-8895
Tillv. art.nr:: SCP30S3.3-DN
Tillverkare / varumärke:: SolaHD

SolaHD SCP Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 100 → 375V dc ac, dc Input, 3.3V dc dc

Tillfälligt slut i lager – restorder för leverans 2024-08-14

Pris (ex. moms) Varje

3 608,13 kr

(exkl. moms)

4 510,16 kr

(inkl. moms)

Enheter	Per enhet
1 +	3 608,13 kr

RS-artikelnummer:: 890-8895
Tillv. art.nr:: SCP30S3.3-DN
Tillverkare / varumärke:: SolaHD

Datasheet

Attribute	Value
Series	SCP
Type	Switched Mode
Electrical Phase	1
AC or DC Input Voltage	ac, dc
Input Voltage	85 → 264 V ac / 100 → 375V dc
AC or DC Output Voltage	dc
Output Voltage	3.3V dc
Output Current	6A
Power Rating	30W
Number of Outputs	1
Height	120mm
Depth	33mm
Width	33mm
Standards Met	Class II, cUL, EN 50082-2, EN 55011 Class B, EN 55022 Class B, EN 60950, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, UL 1950, VDE 0805
Maximum Temperature	+65°C
Ripple And Noise	<lteq/>1 (Ripple) %, <lteq/>2 (Noise) %
Minimum Temperature	-25°C
Mounting Type	DIN Rail Mount
MTBF	800000h

SolaHD SCP Switched Mode DIN Rail Power Supply, 85 → 264 V ac / 100 → 375V dc ac, dc Input, 3.3V dc dc

SCP Series 30 Watt Single, Dual and Triple
