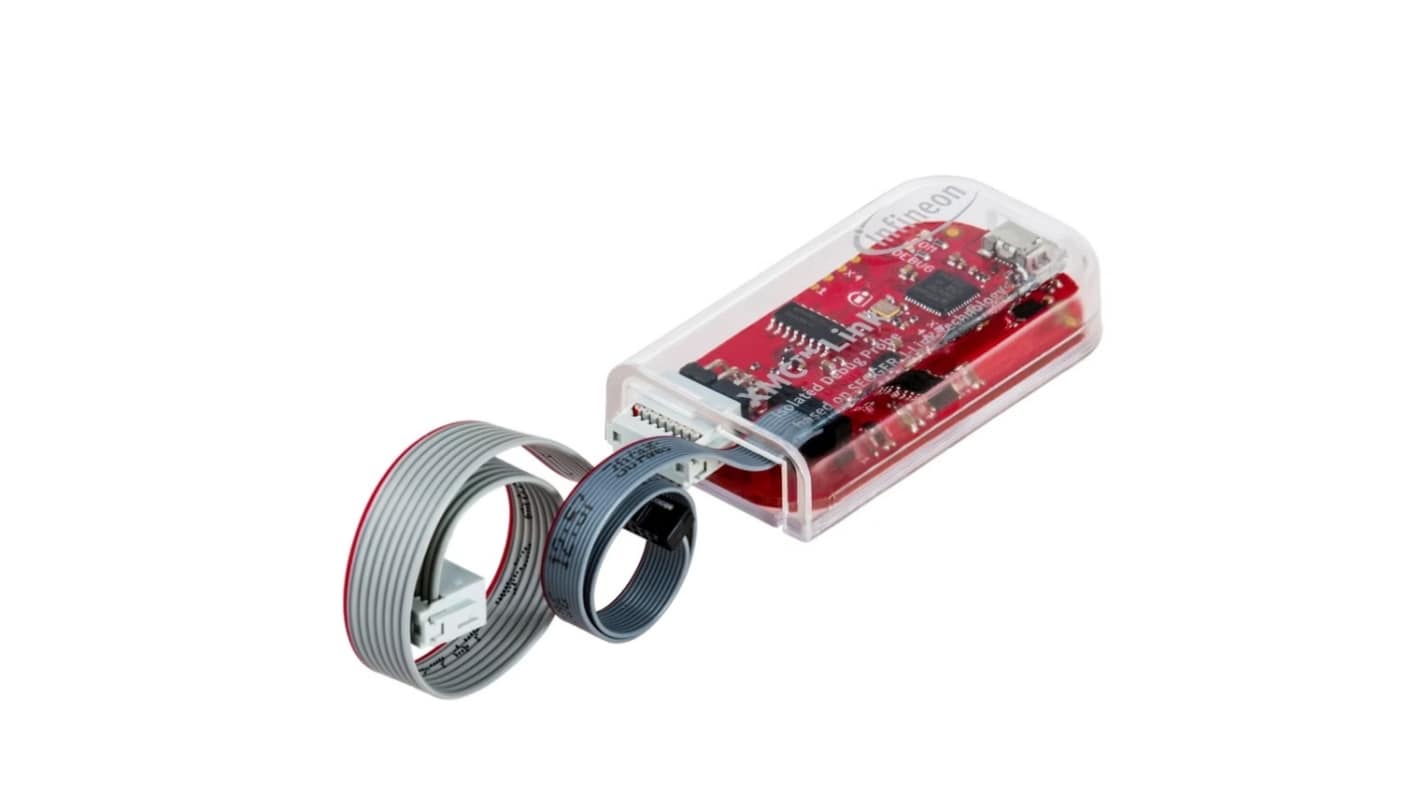

XMC Link - Isolated Debug Probe

The XMC^™ Link is an electrically-isolated programming/debug probe based upon SEGGER J-Link technology. It is designed for use with all Infineon XMC 1000/4000 family microcontrollers. The probe firmware works in conjunction with Infineon DAVE^™ software. It also works with other compilers and Integrated Development Environments (IDEs) for the ARM^® ecosystem.

Basic Features

• Supported processors: Cortex-M core XMC microcontrollers
• 1000Vdc functional isolation from Target
• 10-pin Cortex debug connector for XMC4000 devices
• 8-pin XMC MCU debug connector for XMC1000/4000 devices
• Micro-AB USB connector for host PC
• Debug and Communication status LEDs
• Power supply: +2.5 to +5.5Vdc (from Target) and +5Vdc (from USB connection)
• Dimensions: 62 x 33mm (exc cables)

Supported Protocols

• Serial Wire Debug (SWD)

• Serial Wire Viewer (SWV via SWO pin)

• Single Pin Debug (SPD)

• JTAG

• Virtual COM Port (UART-USB Bridge)

Supported Compiler/IDE

• Altium Limited
• Atollic
• ARM/KEIL
• IAR Systems
• Infineon
• Rowley Associates

Supplied with

Target connection cables

Infineon Debugger, For Use With DAVE and All Common Third-party Compiler/IDEs, Evaluation Board Type - KITXMCLINKSEGGERV1TOBO1

This input/output module from Siemens is designed for seamless integration within industrial automation systems. With dimensions of 125mm x 40mm x 130mm, it operates on a supply voltage of 24V, ensuring compatibility with central processing units. The module is optimised for Ethernet, PROFINET, and RS 485 interfaces, making it versatile for various applications in manufacturing and process control environments.

Features & Benefits

• Compact design facilitates easy installation in restricted spaces
• 24V input improves compatibility with common automation systems
• Multiple interfaces enhance connectivity with existing devices
• Isochronous mode supports time-sensitive applications effectively
• Integrated web server allows remote monitoring and communication
• High memory capacity enables efficient data management

Applications

• Utilised with central processing units for streamlined automation
• Ideal for connecting various field devices in process control
• Effective in systems requiring real-time data transmission
• Suitable for industrial robotics and machinery integration
• Enhances communication in distributed control systems

How does this module ensure reliable communication in industrial environments?

It features multiple protocols, including PROFINET and Ethernet, allowing for robust communication in demanding settings. The integrated web server facilitates monitoring and management, ensuring effective data flow across connected devices.

What power specifications must be adhered to for proper operation?

The module requires a rated supply voltage of 24V, with permissible limits ranging from 20.4V to 28.8V. Proper power supply ensures optimal module performance and prevents malfunction.

Can it handle multiple digital and analogue signals simultaneously?

Yes, the module supports a maximum of 65,536 digital inputs and outputs, allowing extensive integration with numerous sensors and actuators simultaneously for comprehensive system control.

What is the significance of isochronous mode for time-critical applications?

Isochronous mode allows the synchronisation of data transfer across networked devices, making it vital for applications that necessitate precise timing, such as motion control and real-time monitoring.

How can the module's performance be monitored during operation?

Performance monitoring is facilitated through the diagnostic buffer capable of retaining up to 500 entries, providing insights into operational parameters and potential issues for proactive maintenance.
